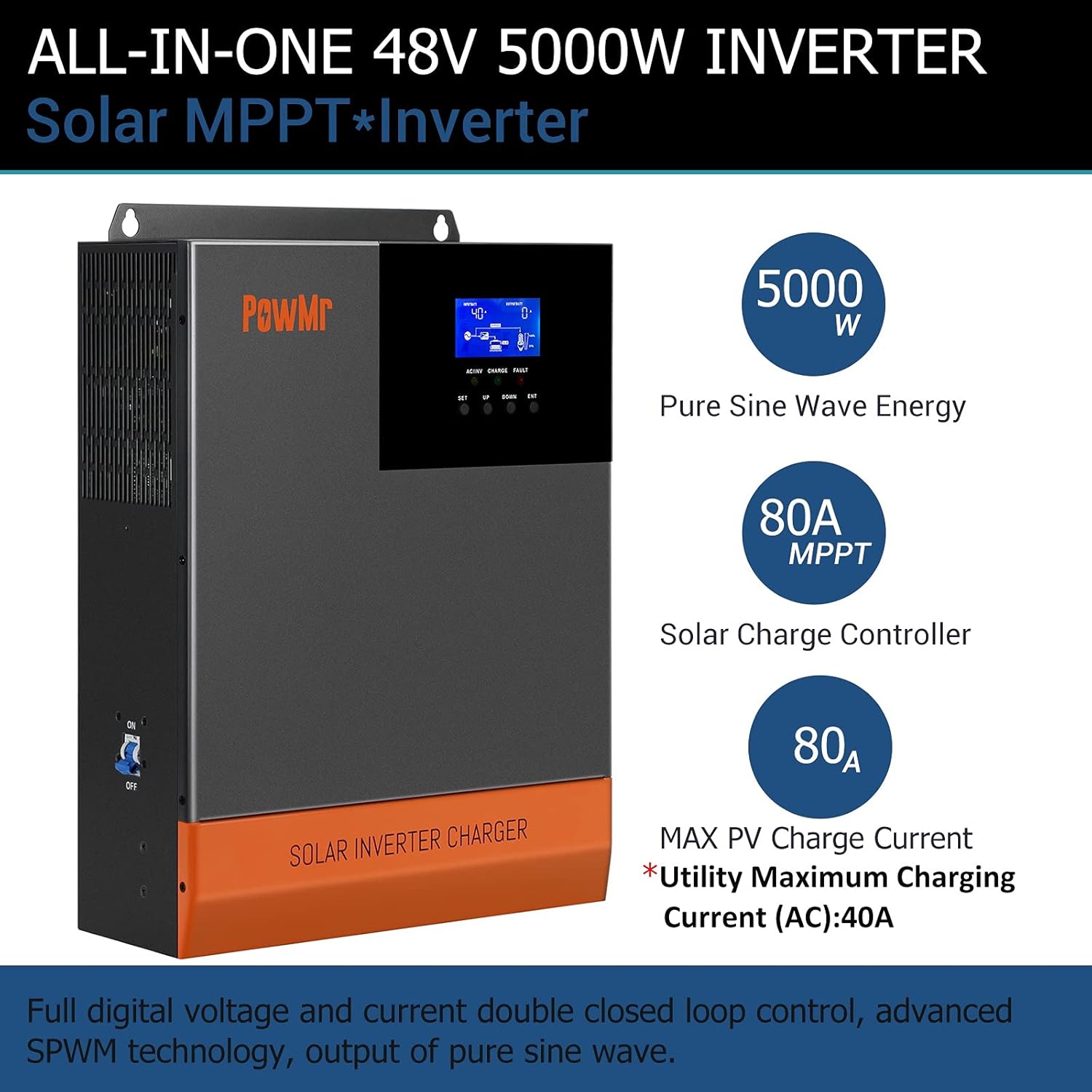

Inverter Charger Solar Inverter 5000W, Built-in 80A MPPT Charge Controller Off Grid 48V Inverter 110V AC 5KW Output Pure Sine Wave Power, Support Max 5000W 500V Solar Power/Utility Power/48V Battery : Everything Else

Description

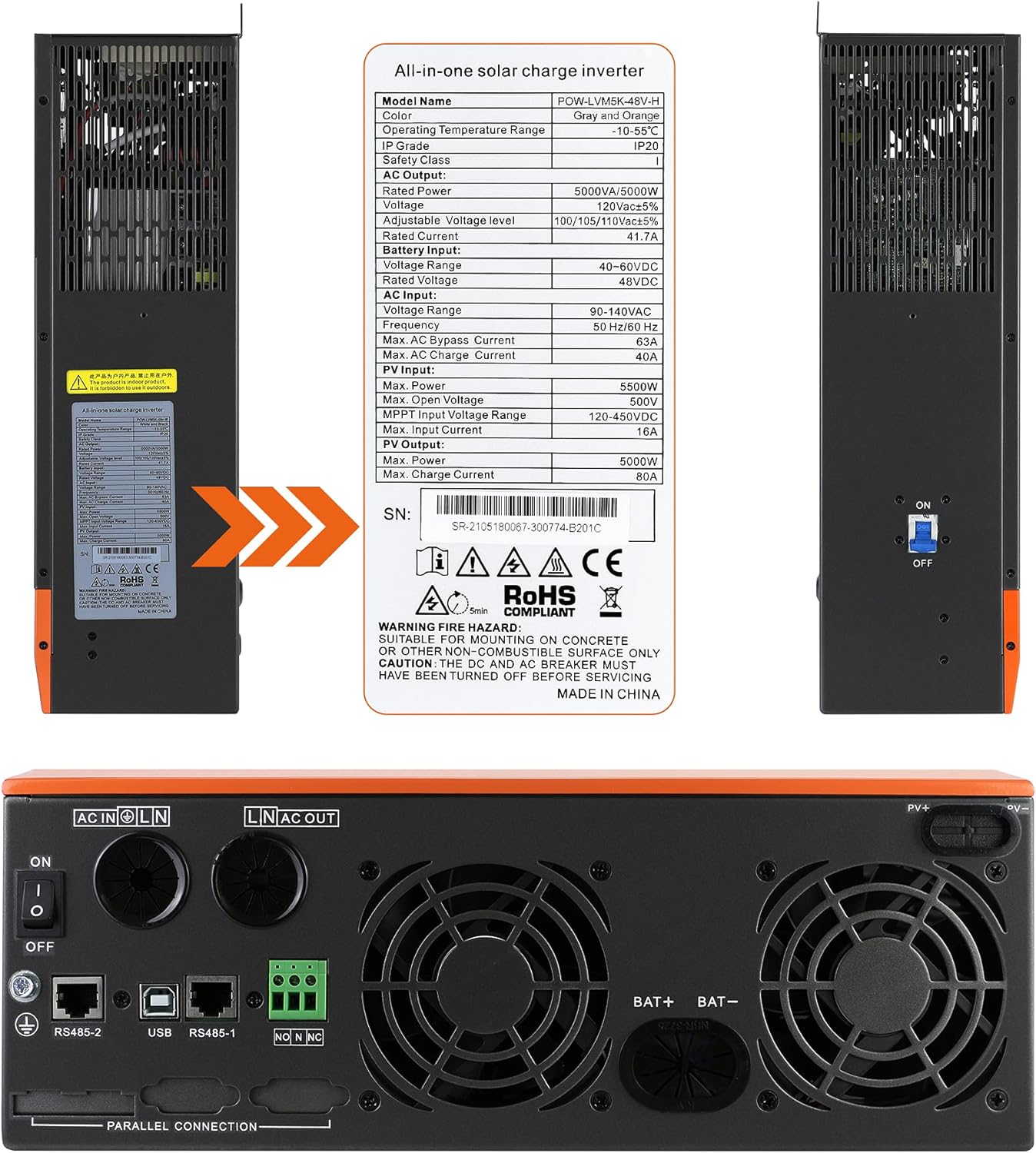

Battery type: 48V Lead Acid or Lithium Maximum Charging Current: 40A when Utility/Grid Charging, 0-80A when PV Charging. Charging Voltage Range: 40-60VDC Max Solar panel voltage accept: 500Vdc Solar(PV) Charing Operating Voltage range: 120-500Vdc (For PV to charge 48V battery banks, you will need a minimum PV Voc voltage of 120VDC) Solar(PV) MPPT Voltage Range: 120-450Vdc Maximum Solar(PV) Input Power: 5500W Max PV Input Current: 16A(Solar panels need to be connected in series） Maximum Solar(PV) output Power: 5000W(inverter will use Max 5000W to charge battery, but it is ok accept 5500W power from your solar panel.) Utility/Grid Rated input Voltage: 110/120Vac(90Vac~140Vac Input voltage range) ±2% Max Bypass Current load: 63A Inverter Output Waveform: Pure Sine Wave Inverter Rated Output (VA)(W): 5000(4100/4300/4500) Inverter Power factor: 1 Inverter Output AC Voltage: 120Vac(100/105/110Vac Settable) Inverter Output Frequency (Hz) : 50Hz ±0.3Hz 60Hz ±0.3Hz Inverter Efficiency >90% Peak power: 7000VA Motor Capability: 3HP

Product Overview
