Growatt 3000W Off-Grid Solar Inverter 110V-120V/220-230V Split Phase Built-in 80A MPPT Solar Charge Controller, Pure Sine Wave Hybrid Inverter Work with 24V Battery Off Grid Solar Home Use : Patio, Lawn & Garden

Description

Input Voltage Waveform: Utilily or Generator Input voltage: 120V AC MAX AC input Voltage: 150V AC Input Frequency: 50Hz/60Hz(Auto detection) Efficiency: >95% (Rated R load, battery full charged) NOTE: When AC input voltage drops to 95V, the ouput power will be derated. Rate output power: 3KVA/3KW Output voltage waveform: Pure Sine Wave Output voltage regulation: 120VAC Output frequency: 60Hz Peak efficiency: 93% Nominal DC input voltage: 23VDC High DC recovery voltage: 28.2VDC High DC Cut-off voltage: 30.4VDC USE Utility charge your battery: Bulk Charging voltage: Flooded Battery 29.2VDC, AGM/GEL 28.2VDC Floating Charging Voltage: 27VDC Overcharge Protection: 30VDC Charging Algorithm: 3 Step MPPT charge USE Solar energy charge your battery: MPPT charging efficiency: 98% Max. PV Array Open Circuit voltage: 145V DC PV Array MPPT voltage range: 30-115V DC

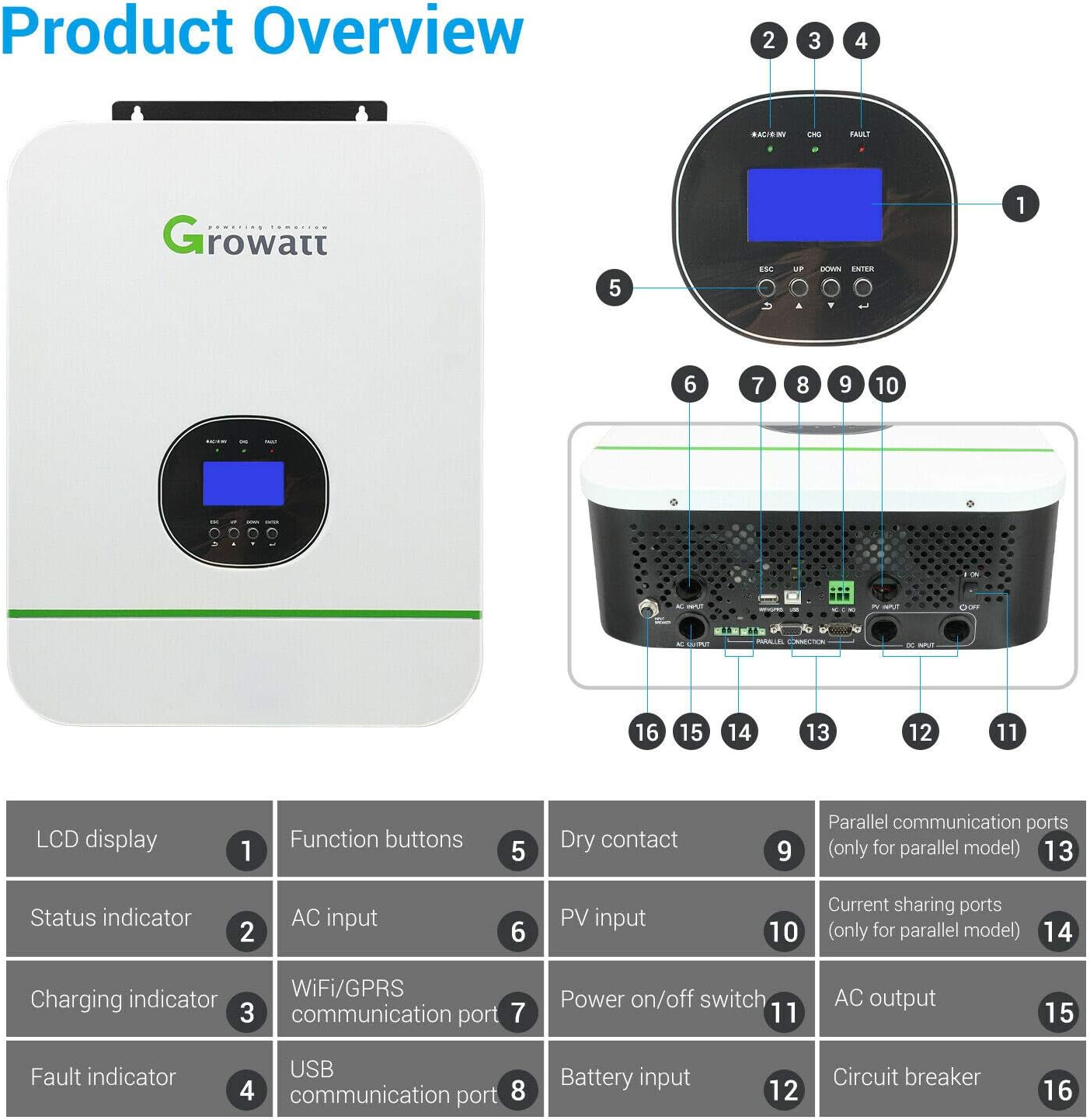

Product Overview
