KeeYees 7-70V 30A PWM DC Motor Speed Controller Switch Control 12V 24V 36V 48V with 30 Amp Fuse - -

Description

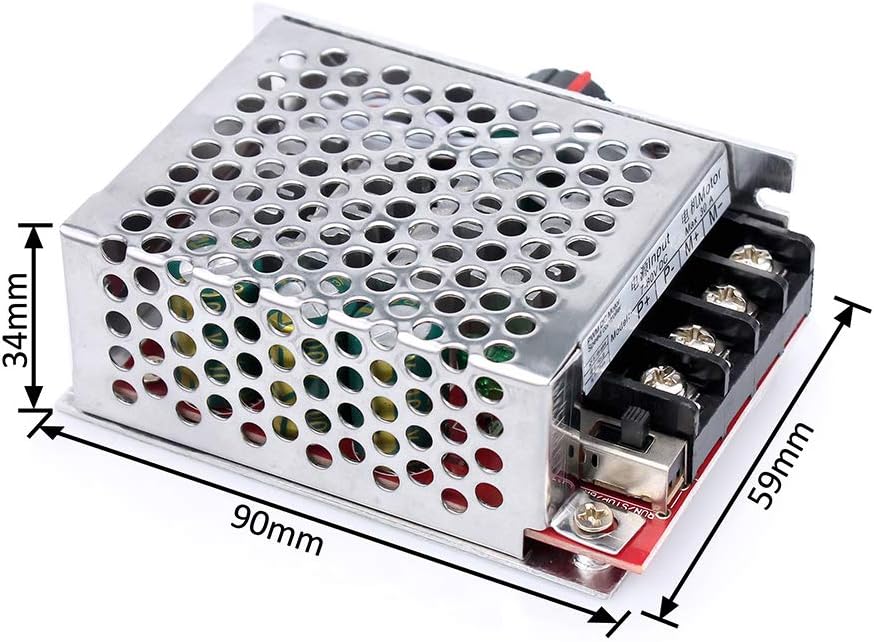

Specification: DC Motor Speed Controller Applicable voltage range: DC 7-70V Drive current: max. 30A (If the operating voltage is high, then the operating current needs to be reduced. Please use it refer to the power, which will better protect the motor and the Controller.) Control power (recommended): 12V: within 300W 24V: within 400W 48V: within 450W 60V: within 500W Duty cycle adjustable range: about 1% -100% PWM frequency: 12KHZ Shell size: 85mm * 58mm * 32mm Fuse: Current: 30A max Wire diameter: 2.5mm2 / 0.4cm diameter / 12AWG Length of wire: 26cm (total length including seat 30cm) Product List: 1 x DC Motor Speed Controller 1 x 30A Fuse KeeYees: Best choice in various Electronic Modules & Components, DIY Parts and Tools to support your work and design challenges from Home, School to Industrial applications!
