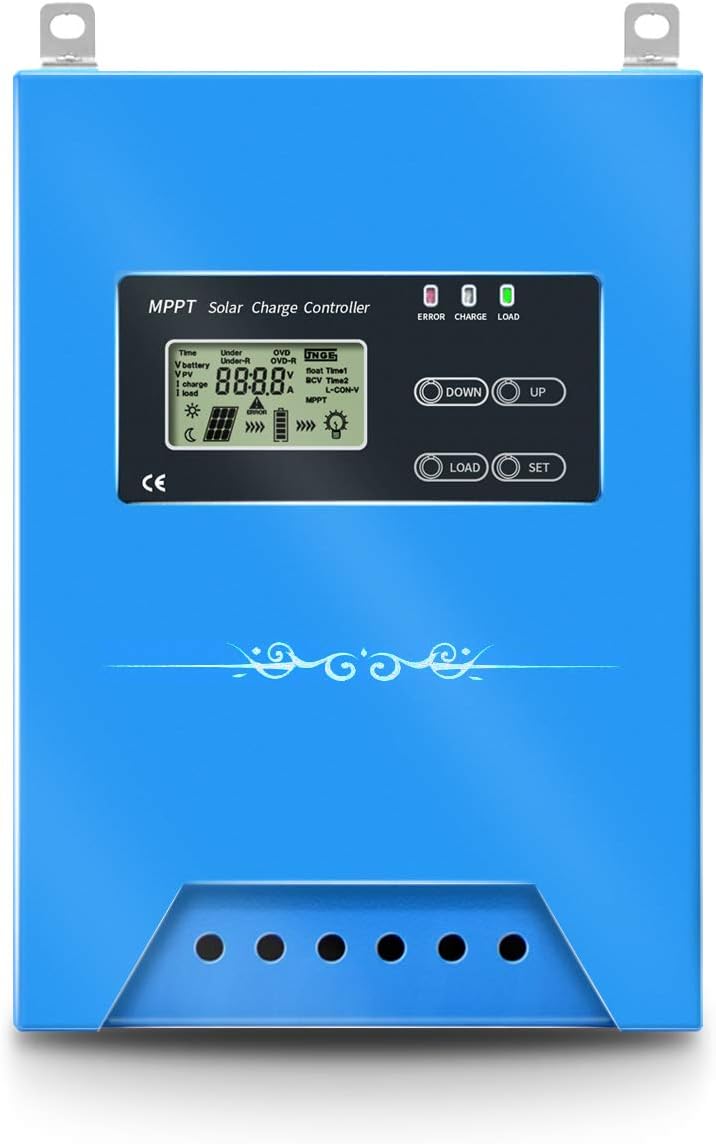

iSunergy 50A MPPT Solar Charge Controller 12V/24V/48V Auto Working Buck Solar Panel Battery Regulator Maintainer with LCD Display for Solar Panel Battery Overload Protection : Garden & Outdoor

Description

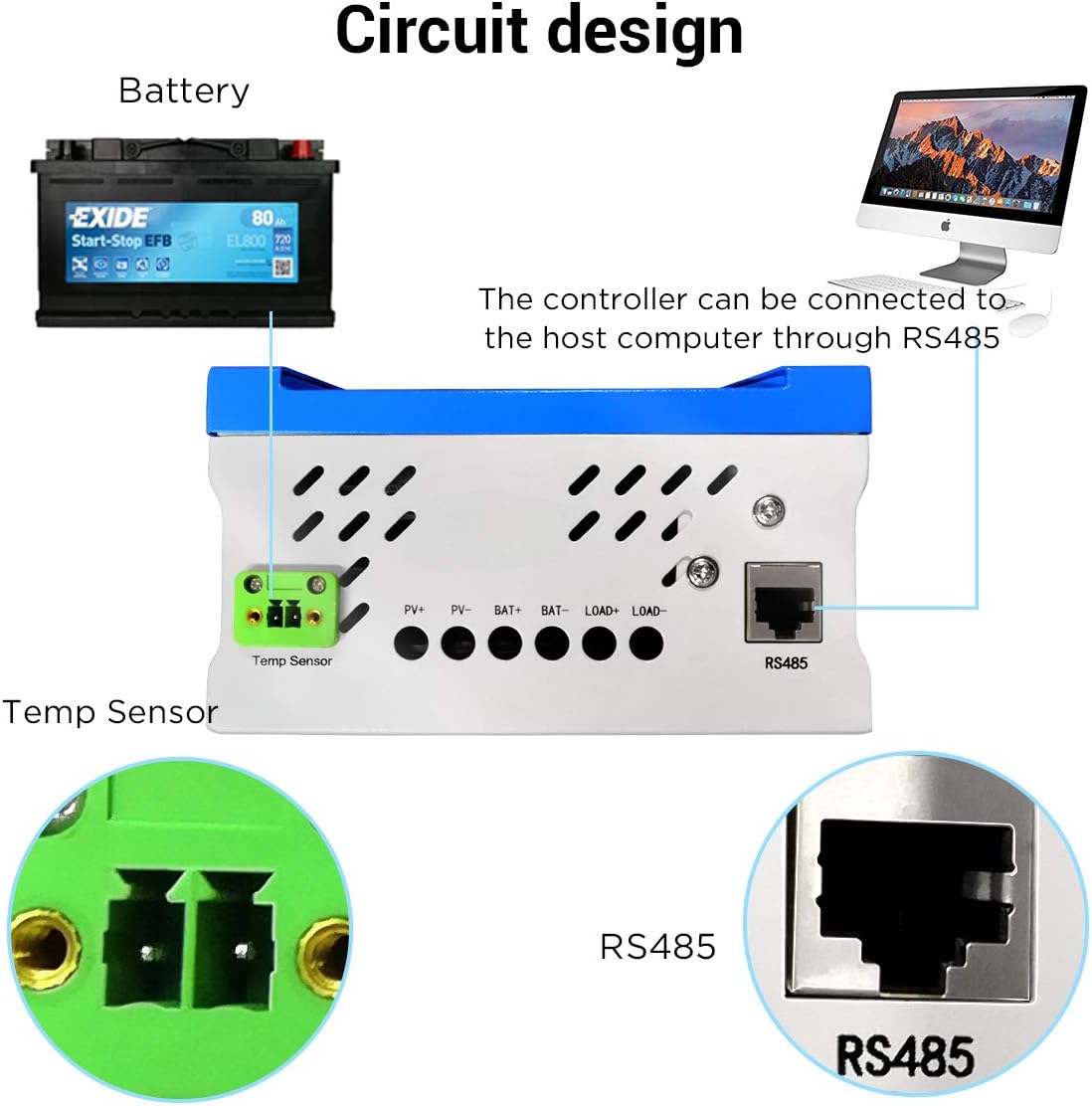

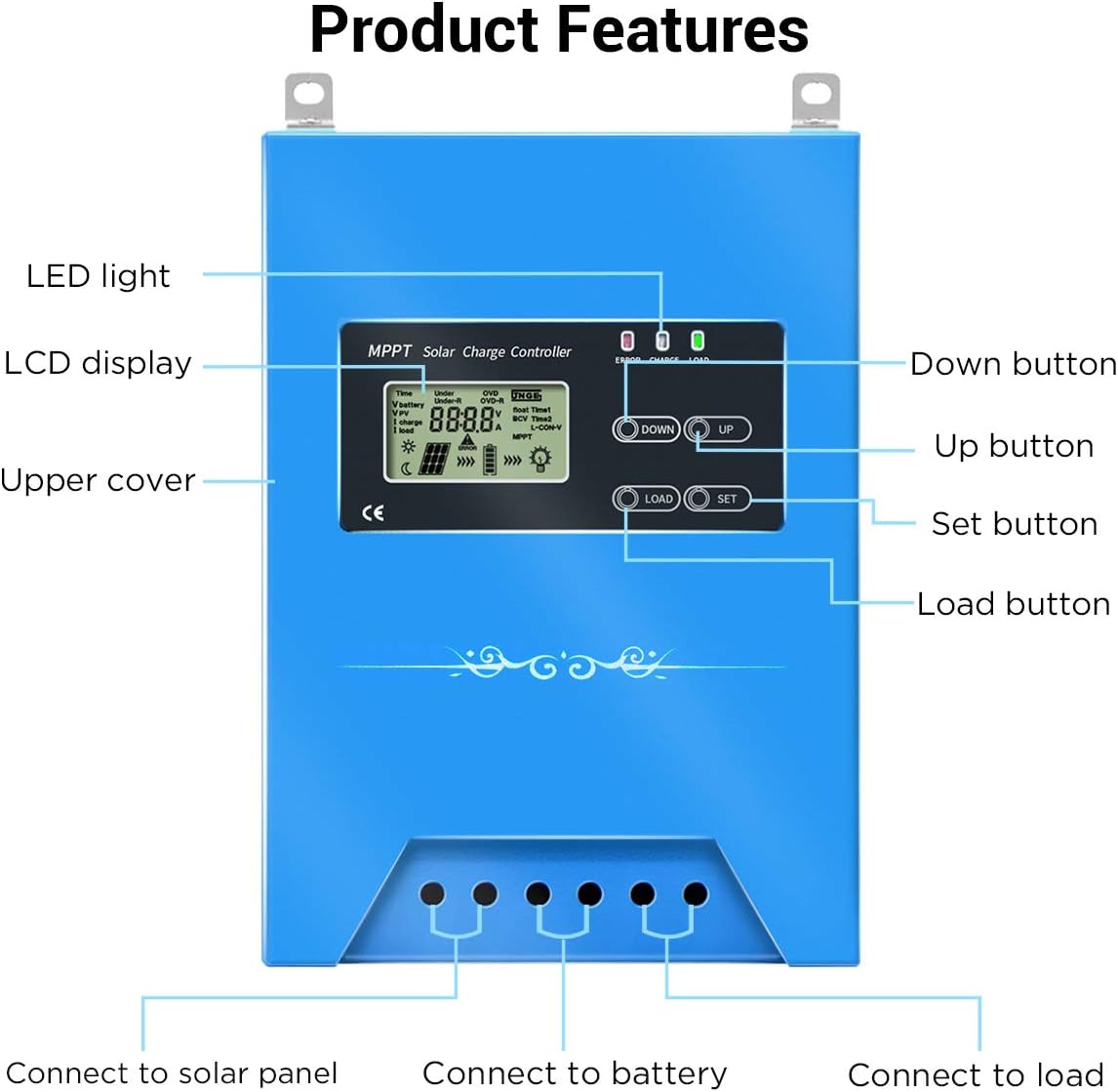

Specifications: Current Rating: 50A Maximum Charging Current : 50A PV Maximum Input Power: 600W(12V)/1200W(24V)/2400W(48V) Output Maximum Current: 50A PV Panel Open Circuit Input :20V～100V(12V battery system); 40V～145V(24V battery system); 80V～145V(48V battery system) MPPT Efficiency: ﹥99.5% Conversion Efficiency: ﹥98% Product Features: ♦ Advanced multi-phase synchronous rectification technology also has high conversion efficiency in low power charging environment. ♦ Has an ultra-wide PV array operating voltage range. ♦ Three-stage charging method: MPPT-lifting charging-floating. ♦ 12V/24V/48V battery system automatic identification function. ♦ RS485 communication can provide communication protocol to facilitate unified management and secondary development for customers. ♦ The controller running parameters can be viewed and set through the PC host computer and mobile phone APP. For details, refer to the host computer and APP manual (optional). ♦ With battery temperature compensation. ♦ It has comprehensive protection functions such as overcharge, over discharge, over temperature, overload, reverse connection and so on. ♦ Compatible with lead-acid batteries, ternary lithium batteries, lithium iron phosphate and other battery types. Package List: 1 * Solar Charge Controller 1 * User Manual 1 * External Battery Temperature Probe

Product Overview
