20A Solar Charge Controller Solar Panel Battery Intelligent Regulator with Dual USB Port 12V/24V PWM Auto Paremeter Adjustable LCD Display : Garden & Outdoor

Description

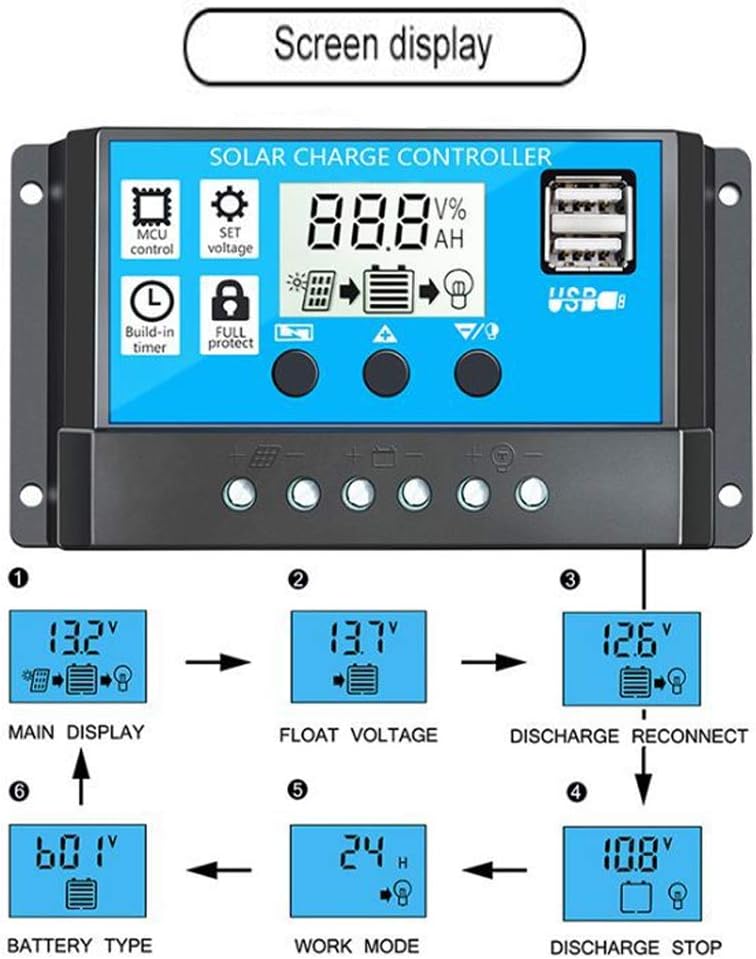

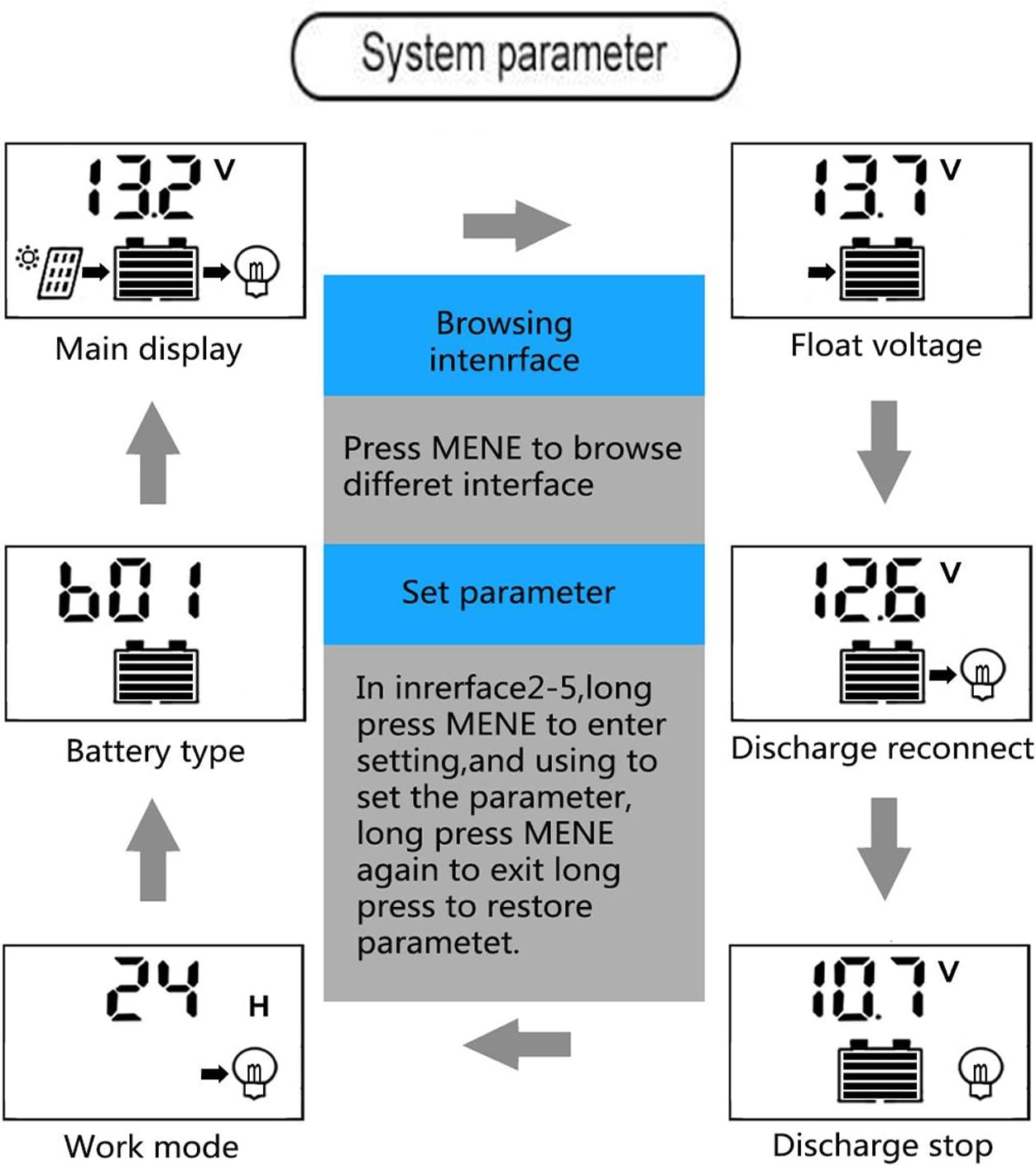

Common Q&A Q: How to install it? A: (1)Battery --->(2)Solar panels ---> (3) load Q: Why the LCD screen become blank? A: When the battery voltage is too low, the controller will stop to output(≦ 8V, controller turns itself off, LCD is blank, ≦ 10.7V, 12V output ports are not available); after the solar panels charging, it will re-output when the battery will return to 12.6V. Q: What battery type is this controller supported? A: The regulator is only suitable for lead acid batteries:OPEN, AGM, GEL, not for nickel hydride, lithium, ions, or other batteries. Q:How is it set to charge battery during the day and turn on at dusk? A: Press the [DOWN]button to ON/OF load manully at main display （The load can't be switched manually in the light control state.） There are 3 options for the working mode. Mode 1 : [24HR] >> Load output 24 hours Mode 2 : [1-23HR] >> Load on aftersunset and dosed after setting hours Mode 3 : [0H] >> Dusk to Dawn Note: 1. The charge regulator is only suitable for lead-acid batteries: OPEN, AGM, GEL, it is not suited for nickel hydride, lithium, Liions, or other batteries. 2. This controller can only use photovoltaic panels as charging power. Do not use DC or other power as charging power. 3.The LCD display has an error of 0.2 V- 0.3 V, but this is normal 4. Old batteries may be degraded the capacity after hundereds of cycles, easily drop lower than 8V, which results in the controller will be shut off (LCD screen become totally “DEAD”). 5. Indoor use only: the working temperature of this controller is -35°C to +60°C, during hot sunny days, the temperature outside might go up to 60-75°C. Please do keep the controller stay in cool and well-ventilated place to maintain good heat dissipation. Package List: 1 x 20A Solar Charge Controller 1X English User Manual

Product Overview
