EpRec Solar Charge Controller 10A 12V/24V Solar Panel Charge Controller with USB Port LCD Display,Compatible with Sealed, Gel, and Flooded Batteries : Patio, Lawn & Garden

Description

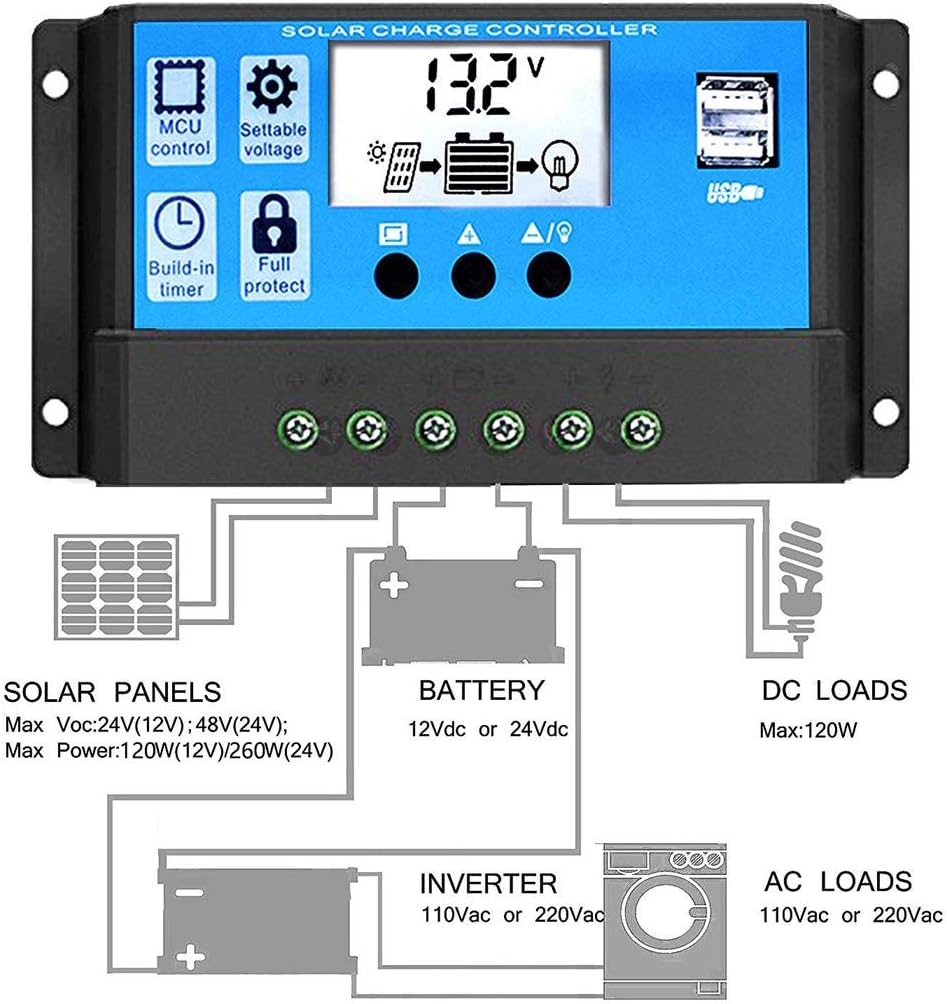

EpRec 10A Solar Charge Controller - System Requirements and Technical Specifications -Voltage: DC 12V/24V -Rated Charge Current: 10A -Rated Load Current: 10A -MAX input power and voltage:24V/120W(12V), 48V/240W(24V) -Solar Battery:Only suitable for lead-acid batteries: OPEN, AGM, GEL -Over charge Protection: 14.4V/28.8V -Over charge Floating charge: 13.7V/27.4V -Charge recover voltage: 12.6V/25.2V -Over discharge Protection: 10.7V/21.4V -Over discharge Recover: 12.6V/25.2V -USB output: 5V/3A -Self-consuming: 10MA -Application:Suitable for farm solar power system, solar street light, solar patio light, solar billboards, outdoor camping solar system, ship solar system. -Package with:10A Solar Charge Controller,English User Manual Note: Please keep it in cool and well ventilated place to maintain good heat dissipation. the regulator is only suitable for lead acid batteries:OPEN, AGM, GEL, not for nickel hydride, lithium, ions, or other batteries. Make sure your battery has enough voltage for the controller to recognize the battery before first installation. Indoor use only: the working temperature of this controller is -35°C to 60°C, during hot sunny days, the temperature outside might go up to 60-75°C. Please do keep the controller stay in cool and well-ventilated place to maintain good heat dissipation. When the battery voltage is too low, the controller will stop to output(≦ 8V, controller turn off itself, LCD is blank,≦ 10.7V, 12Voutput ports are not available); after the solar panels charging, the battery will return to 12.6 V. It is a natural to output.

Product Overview
