PowMr Solar Charge Controller 12V/24V Auto, 50A Solar Panel Battery Controller 50Amp PWM Solar Regulator with Dual USB LCD fit for Small Solar System : Garden & Outdoor

Description

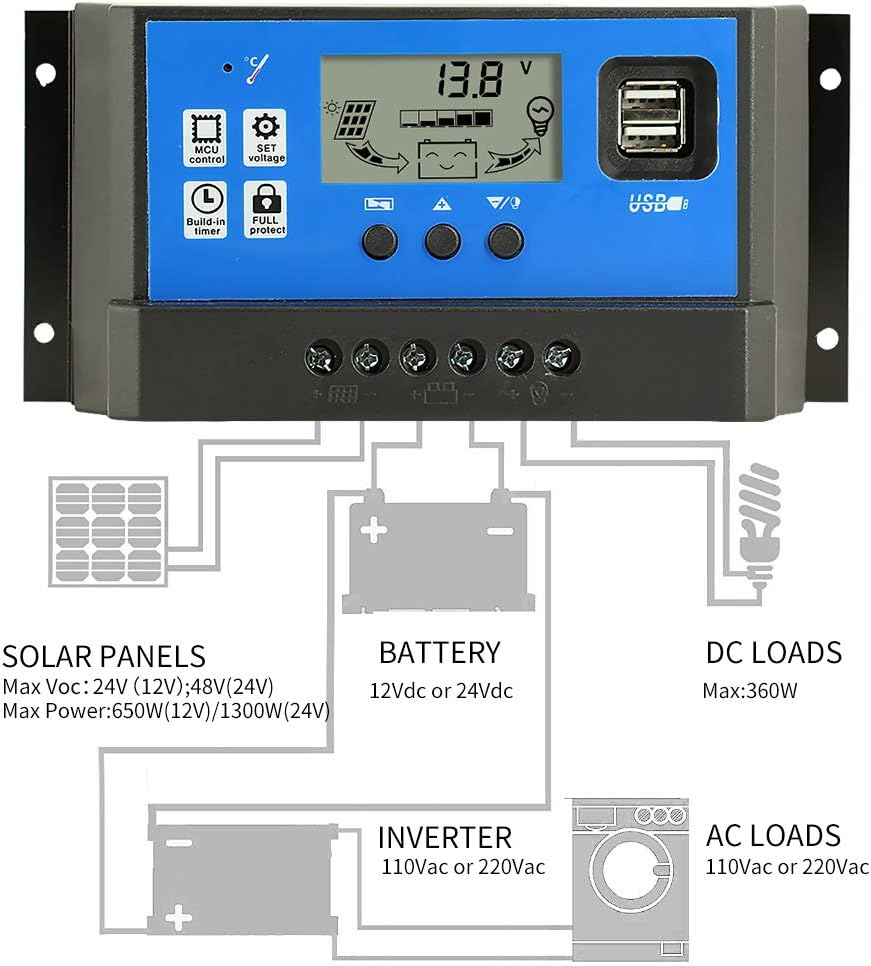

Parameters: Batt voltage: 12V/24V auto Charge current: 50A Discharge current: 50A Solar open voltage: < 23V @ in 12V battery / 45V @ in 24V battery When using a PWM charge controller, it is recommended that the PV panels be connected in parallel, preferably not in series. The series voltage easily exceeds the maximum input range. Max input power: 550W /12V system, 1100W/24V system (The input power of the PWM controller should not exceed 75% of the controller, which can extend the life of the controller.) Battery type: GEL,LEAD-ACID,FLOODED Load Mode： a. 【24H】 hours b.【1-15H】 hoursc. 【0H】hour【1-15H】and 【0H】both belong to the light control mode, and the load is turned off after dawn. Float charge: 13.7V(defaul,adjustable) Discharge stop: 10.7V(defaul,adjustable) Discharge reconnect: 12.6V(defaul,adjustable) USB output: 5V/3A Self-consume:

Product Overview
