Audiology 50 PC Heat Shrink Butt Connectors Solder Seal Wire Connectors Kit, Color Coded Waterproof Solder Wire Connectors for Car Stereo, Automotive, Marine, and Home Wiring: Car Electronics

Description

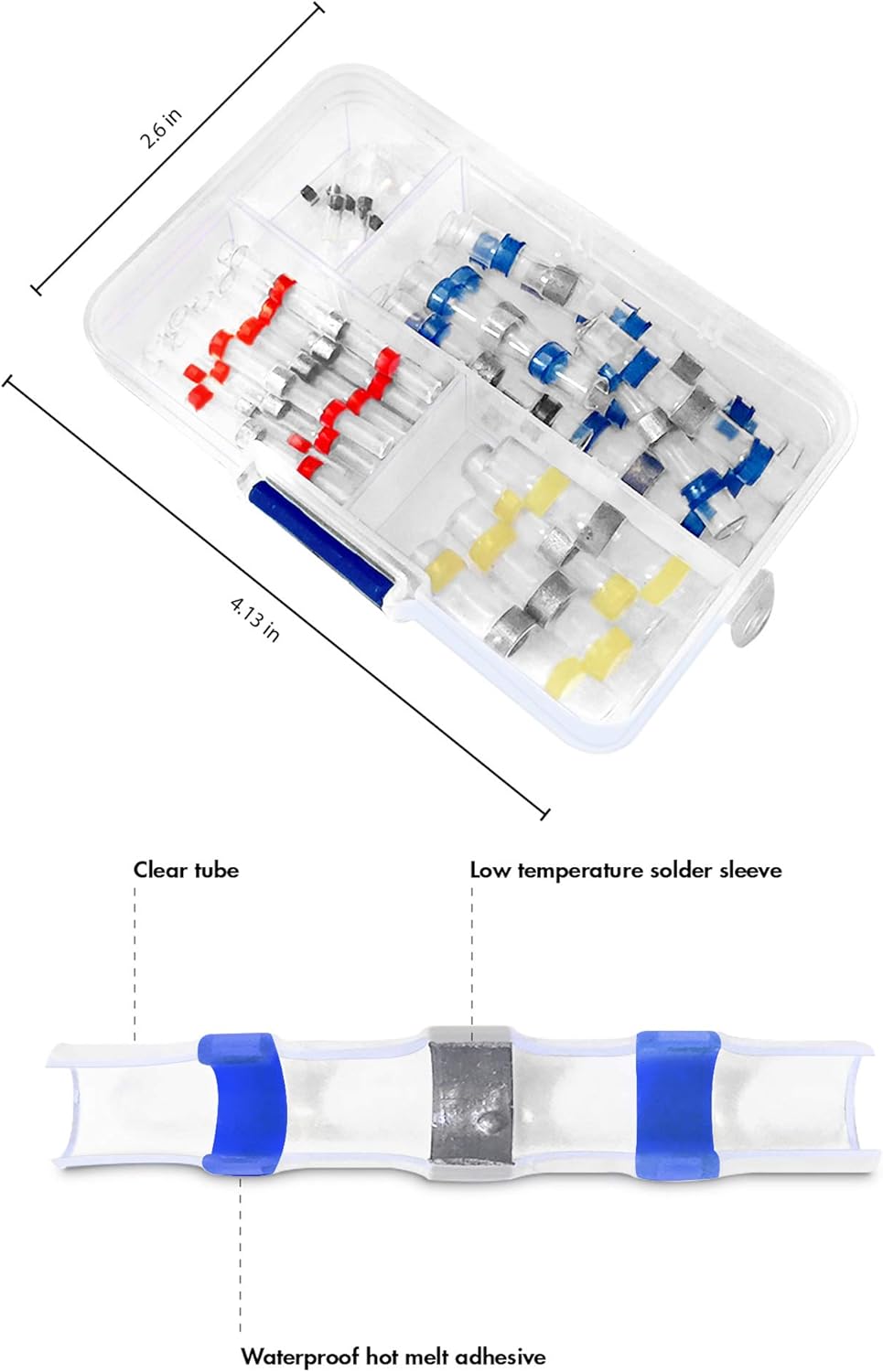

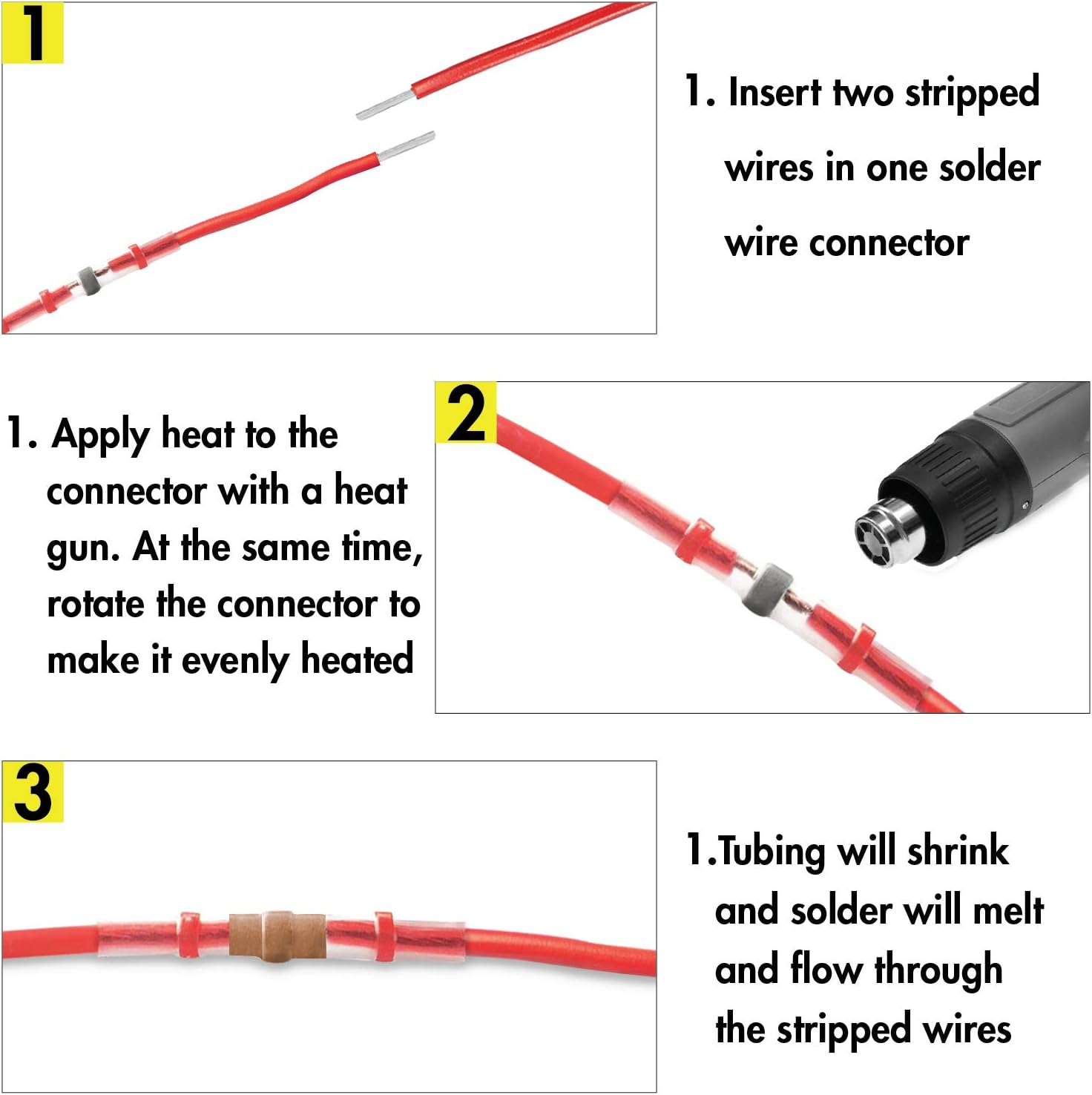

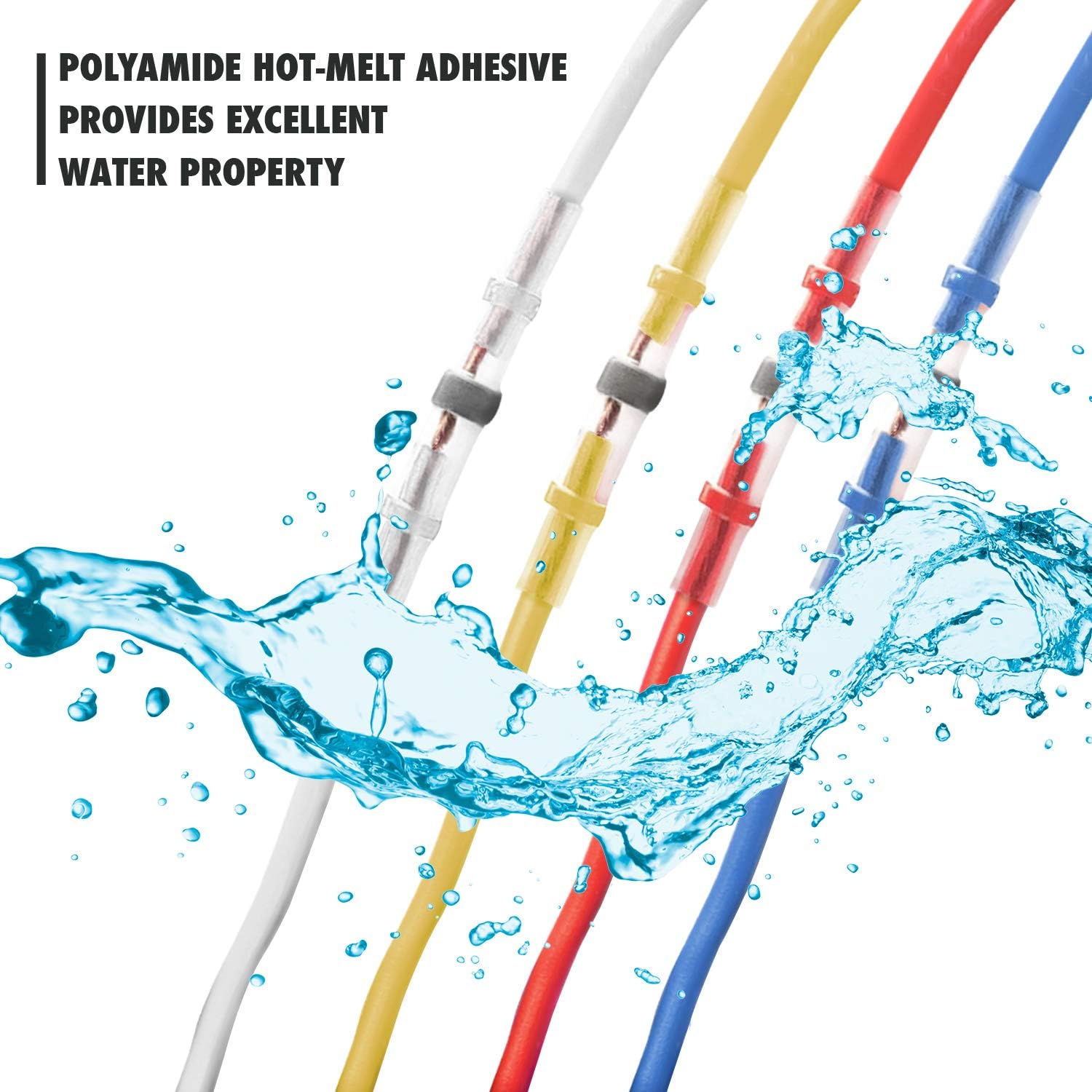

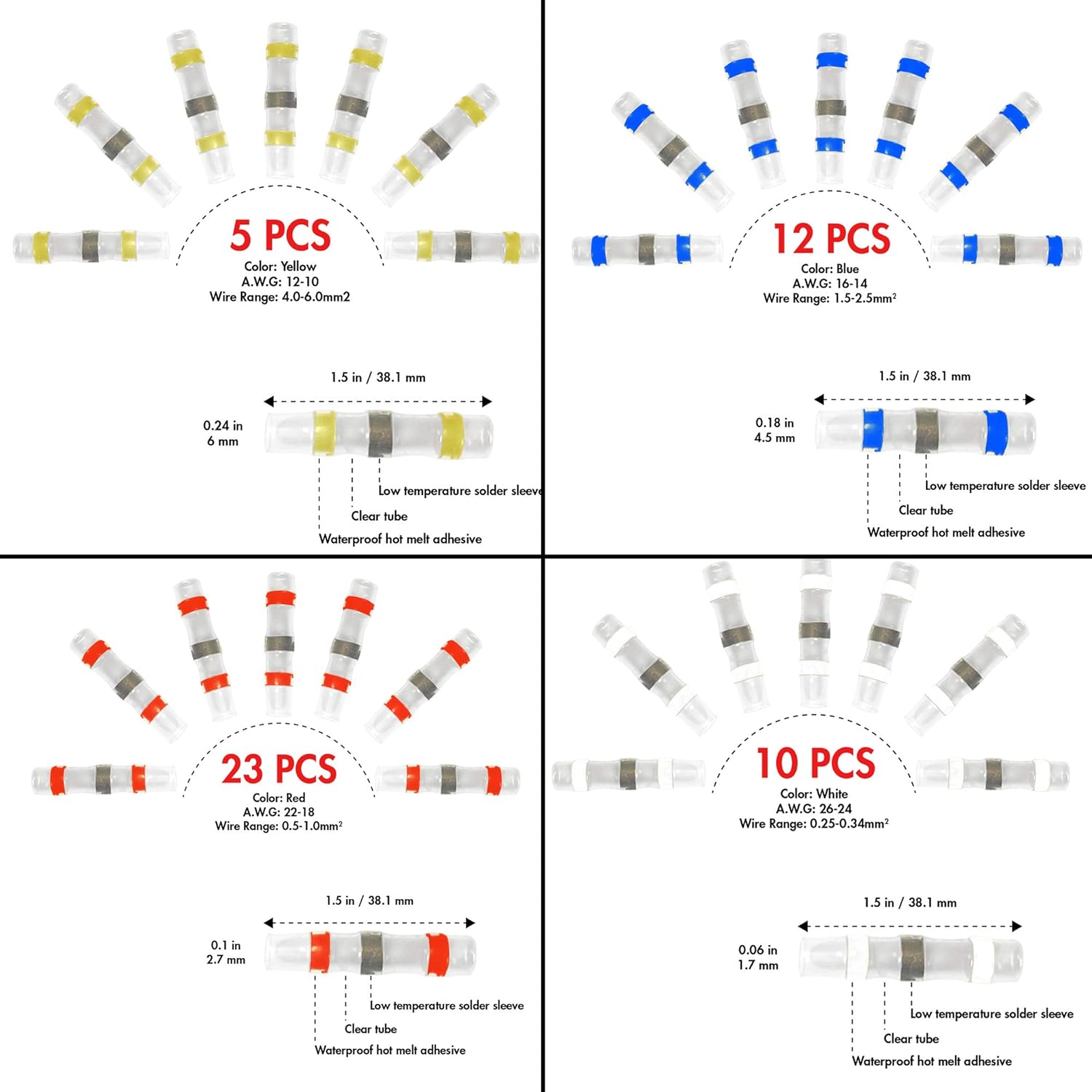

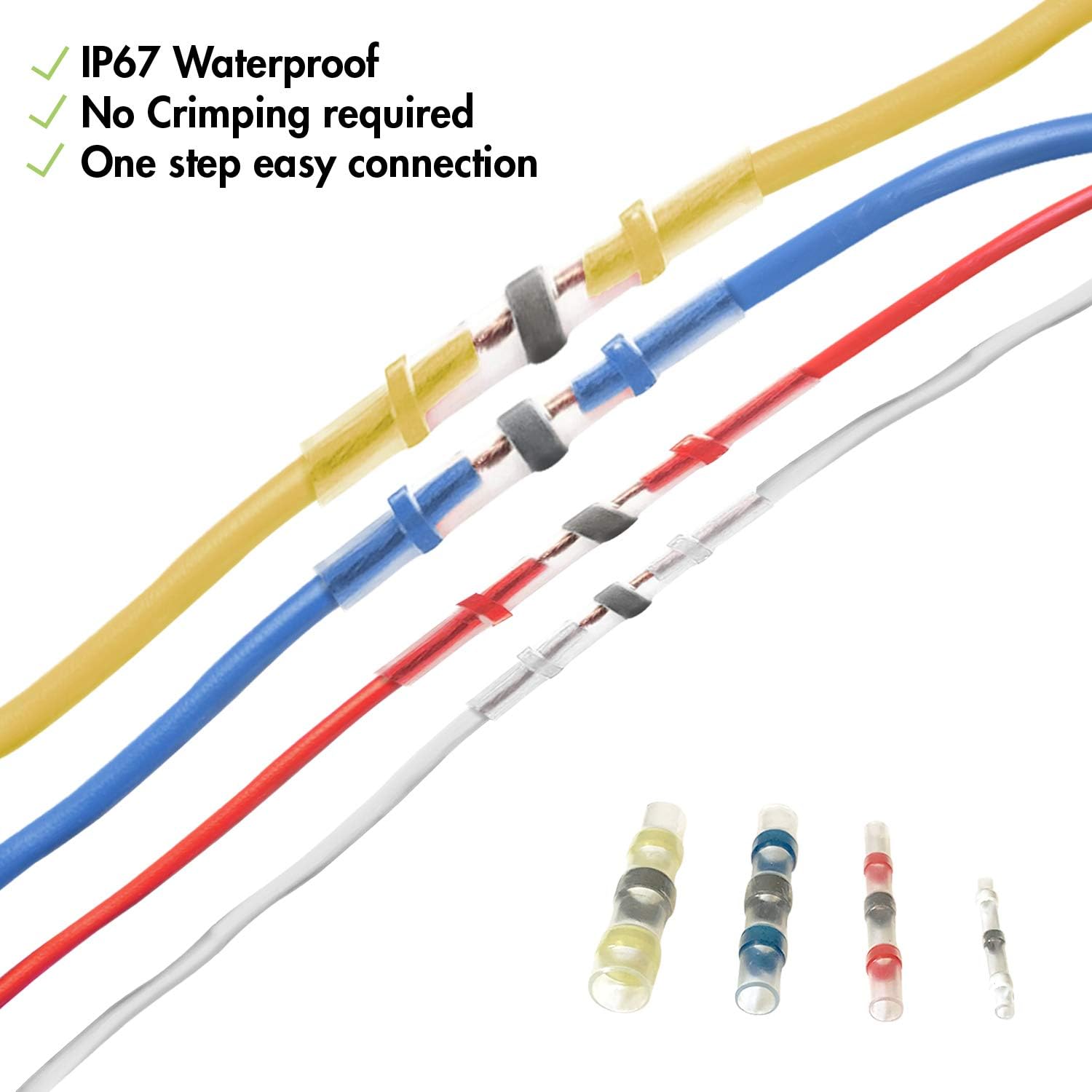

Features: Color: Yellow, Blue, Red, White. Shrinkage ratio is 2:1. Dual-walled design tubing: polyolefin tubing on the outside and hot melt adhesive inside Color coded connector tubing . Heat activated waterproof adhesive . Low temperature solder sleeve . Solder and Hot Melt Adhesive inside can be perfectly Waterproof. Waterproof Solder Connectors would prevent wires from corrosion. Compliant with ROHS, ISO 9001:2008, SGS and CE standards. Sizing Range: 23x Red Solder Seal Connectors: Diameter 2.7 mm, Cable cross-section 0.5-1.0 mm² (A.W.G.:22-18). 12x Blue Solder Seal Connectors: Diameter 4.5 mm, Cable cross-section 1.5-2.5 mm² (A.W.G.:16-14). 10x White Solder Seal Connectors: Diameter 1.7 mm, Cable cross-section 0.25-0.34 mm²(A.W.G.:26-24). 5x Yellow Solder Seal Connectors: Diameter 6.0 mm, Cable cross-section 4.0-6.0 mm² (A.W.G.:12-10). Our heat shrink butt connectors are color coated to easily identify the right one. No crimping required. Strip the outer surface of the wire about 0.3”, put 2 wires together in the sleeve under the solder band, and heat the tube. The hot melt adhesive will melt when the heat shrinkable tube heated. Our solder connectors have high-quality polyolefin tubing on the outside and hot melt rings on the inside ensure a tight waterproof seal which prevent wires from corrosion. These wire connectors heat shrink have an insulation tubing that ensures a tight waterproof seal which prevents wires from corrosion. The automotive wire connectors have a strong grip. To ensure strong holding, tubing shrinks and solder melts and flows through the stripped wires. These solder shrink connectors are perfect for automotive, marine, home wiring and other outdoor applications. Our connectors provide a safe, strong, long-lasting grip through the year. The waterproof butt connectors come with 23 red connectors (AWG: 22-18, WR-0.5-1.0), 10 white connectors (AWG: 26-24, WR-0.25),12 blue connectors (AWG: 16-14, WR-1.5-2.5) and 5 yellow connectors (AWG: 12-10, WR-4.0-6.0). 50 pieces to cover all your needs! Our connectors provide a safe, strong, long-lasting grip through the year. Just insert two stripped wires in one solder wire connector. Apply heat to the connector with a heat gun. Tubing will shrink and solder will melt and flow through the stripped wires.
