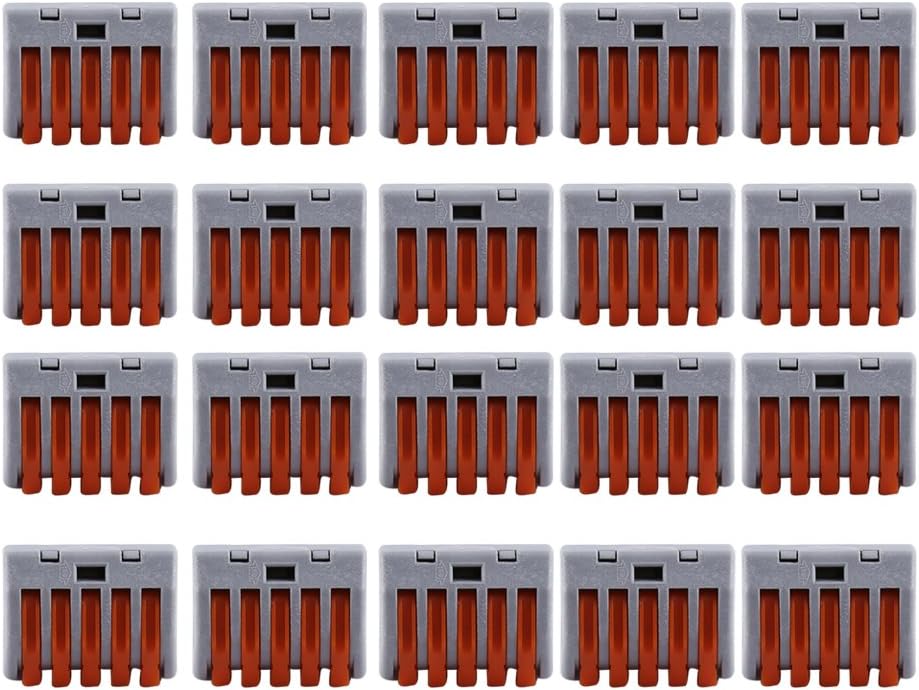

20Pcs 2/3/5 Way Spring Terminal Block Reusable Electric Cable Wire Connector (5 ways): Home Improvement

Description

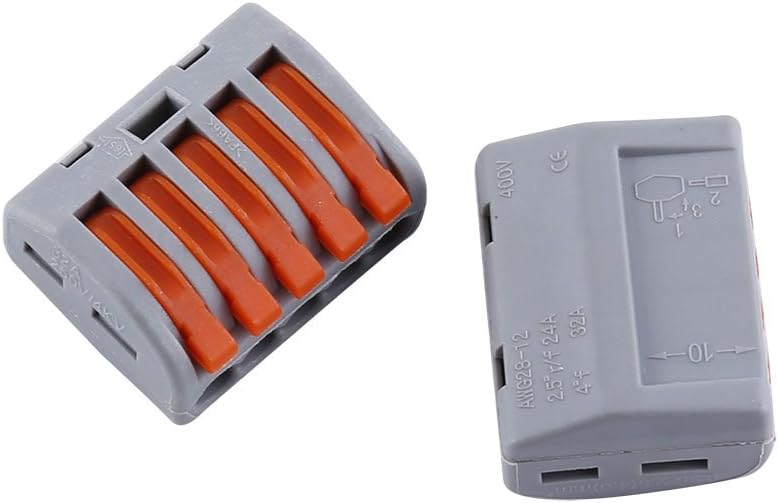

Specifications: Color: As the pictures show Size: 2 Way: 20 x 12.4 x 15 mm /(LxWxH) 3 Way: 20 x 17 x 14.5 mm /(LxWxH) 5 Way: 26 x 21 x 13 mm /(LxWxH) Max. Voltage: EN 400 V Current Intensity: EN 32 A Max. Isolation: 4 kV Max. Continuous Service Temperature: 85°C Strip Length: 9-10mm Compact connector with levers Solid conductor size 0.08 to 2.5mm² /AWG 14 Stranded conductor size 0.08 to 2.5mm² /AWG 14 Flexible conductor size 0.08 to 4mm² /AWG 28-12 Direct plug, plug the wrong can be pulled out, followed again No loose wires, tape embrittlement danger, safe and transparent visible. A test hole, measure the voltage without removing tape. Each contact shrapnel independent, fit different wire diameter, safety shorting - Due to lighting effects, monitor's brightness/contrast settings etc, there could be some slight differences in the color tone of the pictures and the actual item - Please allow 0.1-0.5cm differences due to manual measurement 20pcs Reusable Spring Lever Terminal Block

Product Overview
