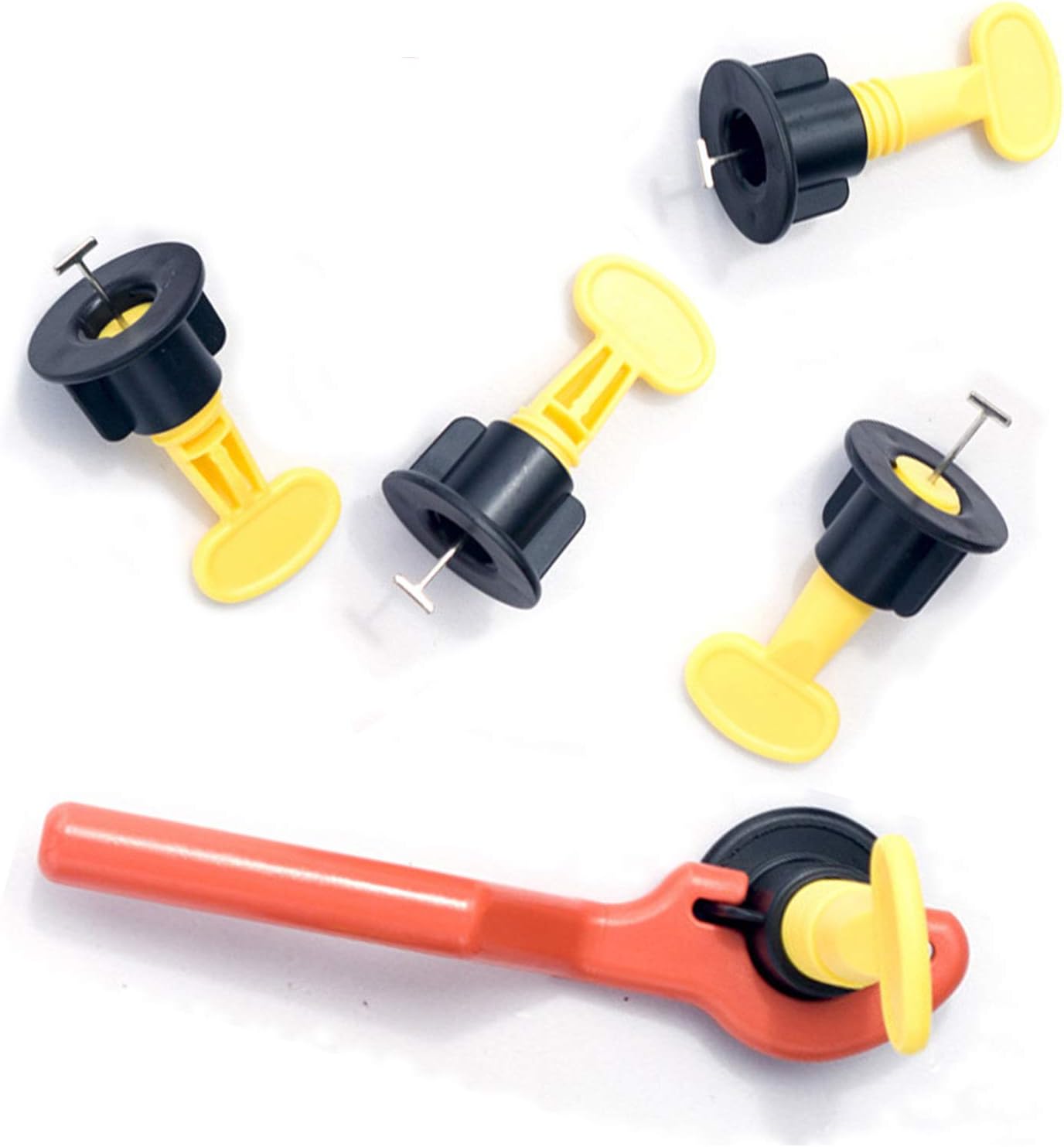

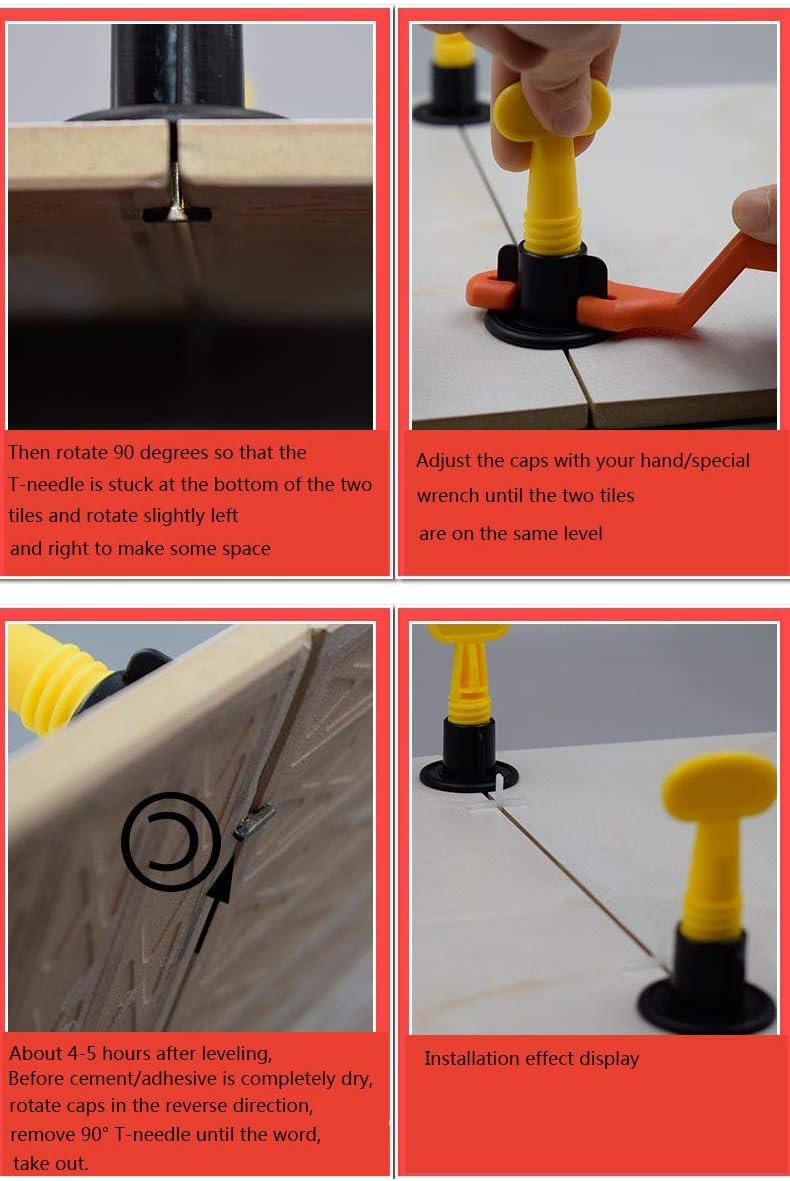

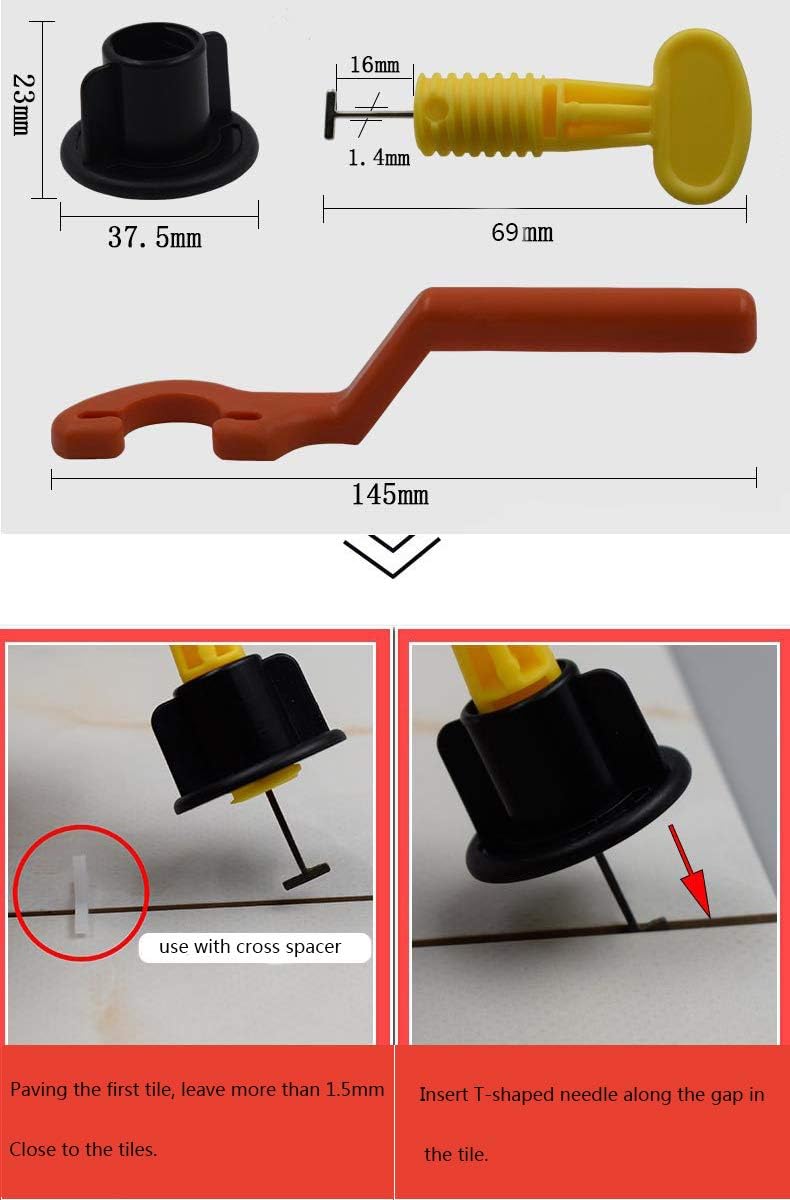

Dear customer please read the following instructions in detail:What will you get:1. 50 pcs tile Leveler +1 pcs special spanner2 .100 pcs cross spacer (1.5mm)(1/16in)+ 100 pcs cross spacer (2.0mm)(5/64in)How to use? 1 lay the first piece of brick, seam ≥1.5mm(1/16in) or above., and close to second bricks; 2 Insert the T-pin along the crack, then rotate it 90 degrees, clamp the T-pin at the bottom of the two bricks and tighten the adjusting cover so that the two bricks are in the same level; 3 Before the cement or tile glue has completely dried up (usually no more than 3-4hours), tighten the adjusting cover in the opposite direction, then rotate the T-pin 90 degrees so that the T-pin turns to a zigzag parallel to the tile, and remove the leveler; 4 Clean and dry storage for reuse. Make the following three steps in advance to avoid being unable to take out the t-type leveler for reuse: 1. Tile slitting 1.5mm or above, preferably use with cross card; 2.Clean up the cement and debris around the T-needle before installation; 3. After construction, the product must be removed before the cement/binder is completely solidified (please read the instructions of the layer material used carefully) Tip: 1 When the T-needle is stuck in the bottom of the two tiles, shake it slightly from side to side to make some room for easier removal and reuse. 2 When laying the tiles with length more than 80CM (31.5 inches), the distance between two T-needles shall be kept less than 60CM (23 inches), or add one more T-needle in this side. Specification: Material:POM(polyacetal pom) + 430 Stainless Steel Quantity: 50 Sets/Bag + 1Pcs Tool Suitable Space:1.5 mm(1/16in)-3.5 mm(9/64in) Space Tile thickness:3 mm(1/8in)-15 mm(19/32in)Color: As showed in the picturePlease note: this product is not suitable for use when the cement layer or the rubber layer is less than 3mm(1/8in) in brick laying construction.
