ECO LLC 4 String PV Combiner Box with Lighting Arrester, 10A Rated Current, Universal Solar Panel Connectors, Grounding Bus-Bar Ideal For Off-grid Solar System : Garden & Outdoor

Description

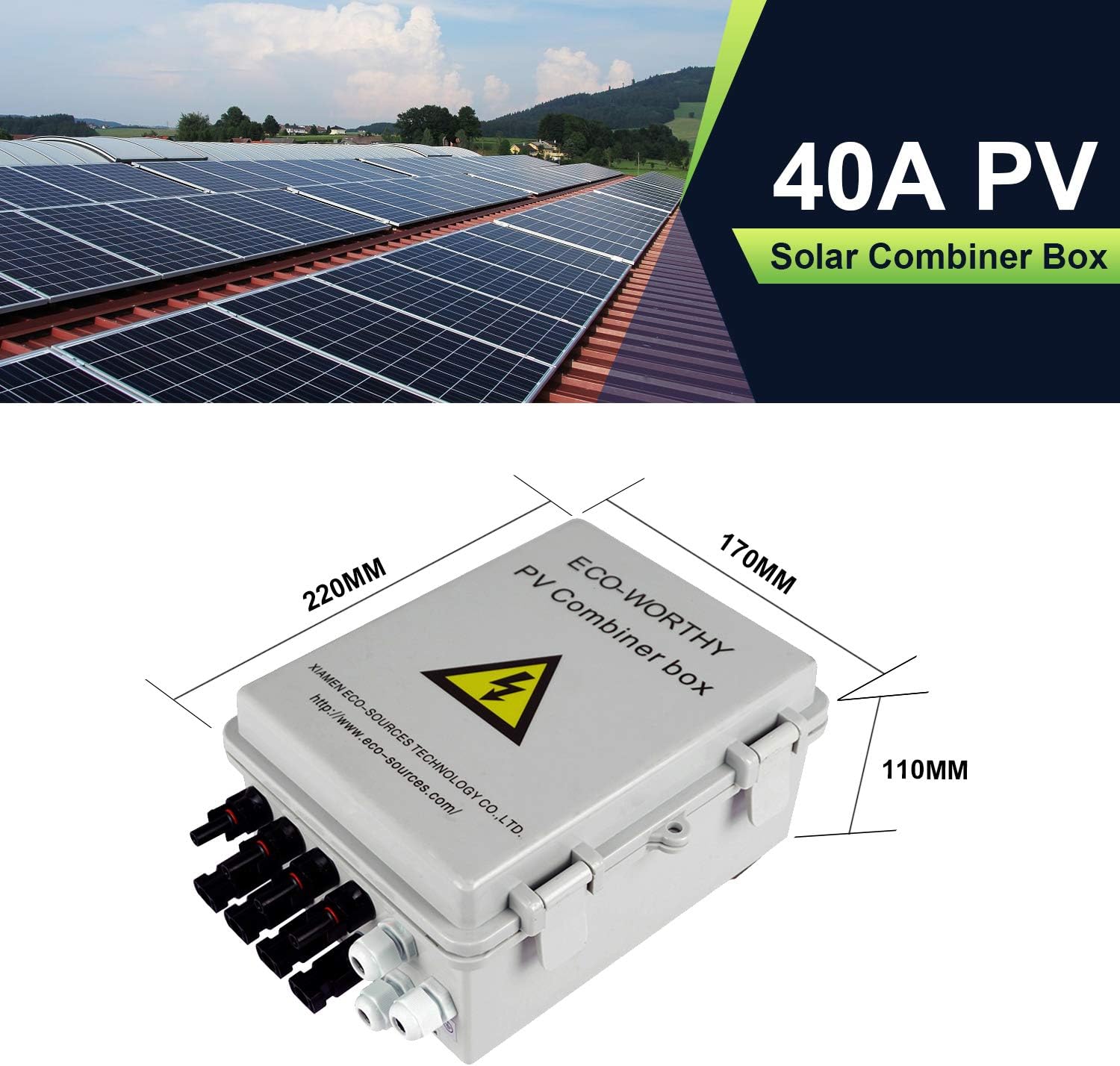

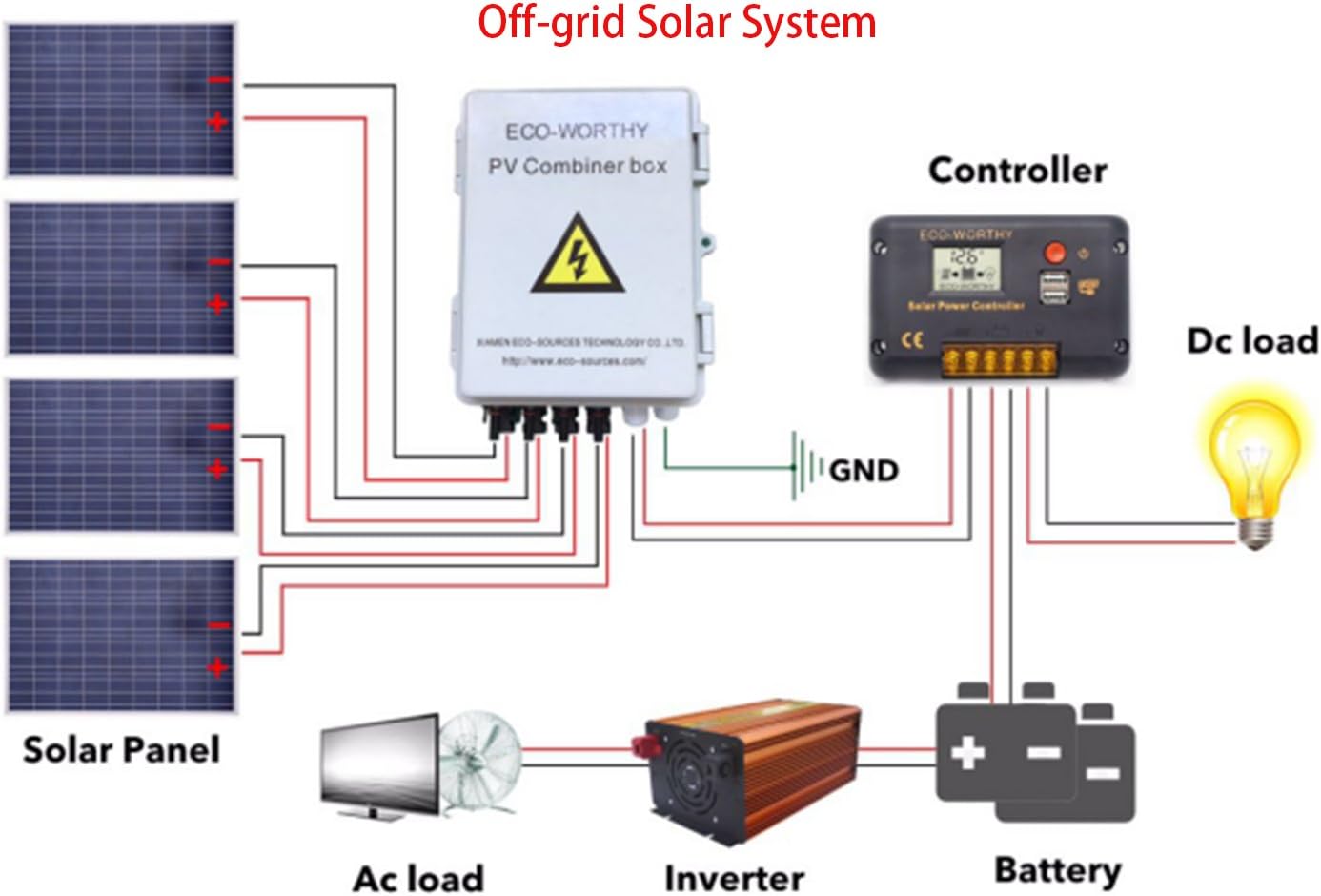

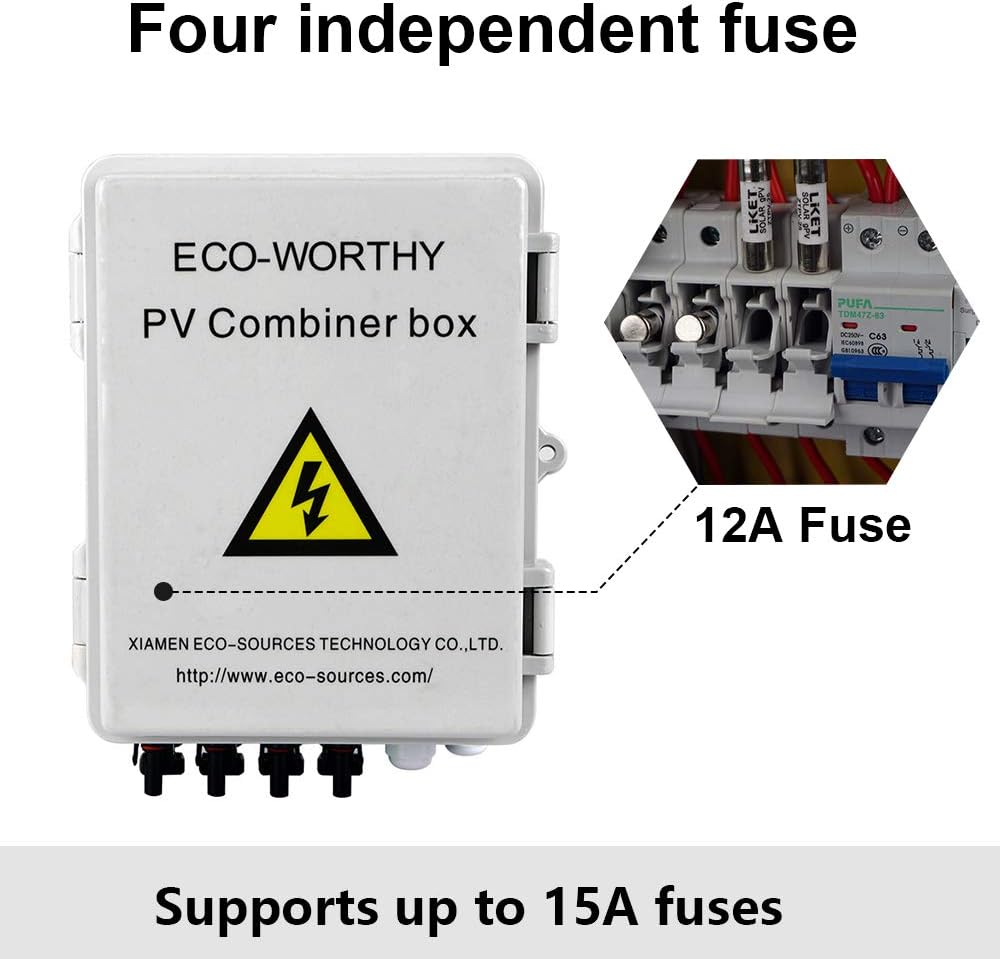

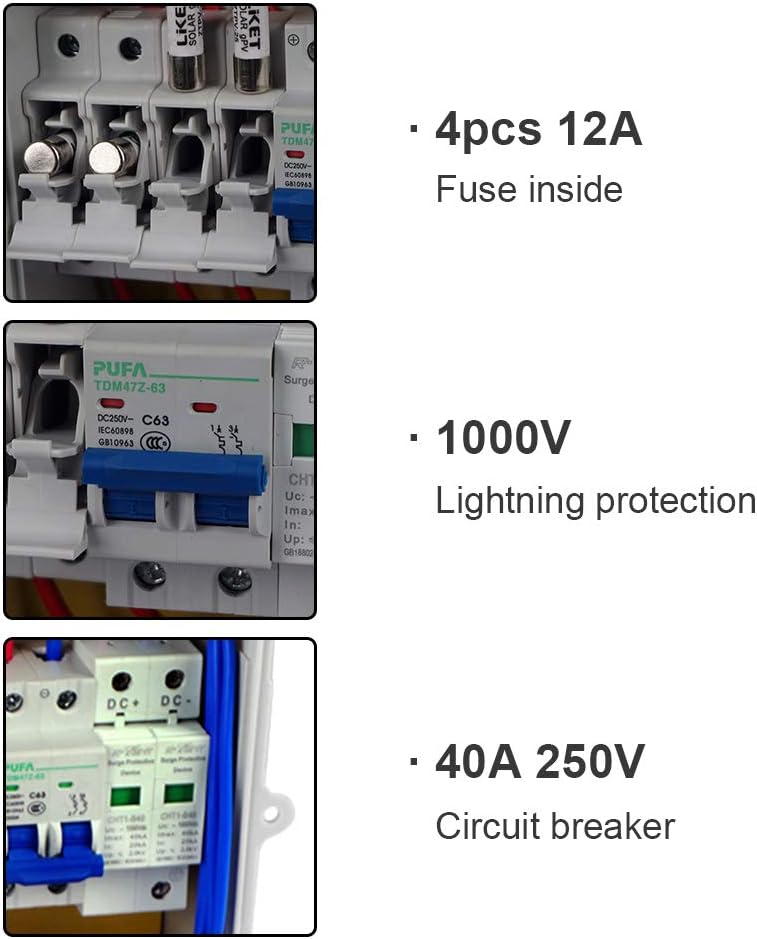

PV Combiner Box is suitable for photovoltaic grid - connected and off - grid powergeneration systems. Its main function is to converge The input of PV array. The PVcombiner box is configured with Photovoltaic high-voltage lightning arrester,DC fuse and circuit breaker to provide short circuit fault protection and lightningprotection. It has protected function of over-voltage and The over - current so as to avoiddamage to photovoltaic panels and inverters when the fault occurs. The PV combinerbox is also used to reduce the connection of the photovoltaic array to the inverter.Optimize the system structure, improve the reliability and maintainability of the systemand make the reservation system at its best. Product Features : ✦Parameter：Max.connection PV array---4;Max input current per array---10A;Total input current---40A;Max input voltage per array---250V; Working temperature-- -30~70℃；Dimension:8.7*6.7*4.3inch;Weight:4.4lbs ✦Each String With High-Voltage Fuses, Over-Voltage & Over-Current Protection. ✦Anti-Backflow Diodes, Anti-Backflow & Anti-Reverse Protection,Touch-safe Circuit Breakers& Non-conductive Box. ✦Includes Output Cable Glands & Safety Labels & Lightning/Surge Protection Module (1000V). ✦Application:It is widely used in PV grid-tie and off-grid solar power system,waterproof calss is IP65.

Product Overview
