EPEVER MPPT Charge Controller 40A 12V/24V Upgrade Tracer4210AN + Remote Meter MT50 Monitor + RTS for Solar Panel Charge Controller Regulator with LCD Display (Tracer4210AN + MT50+RTS) : Patio, Lawn & Garden

Description

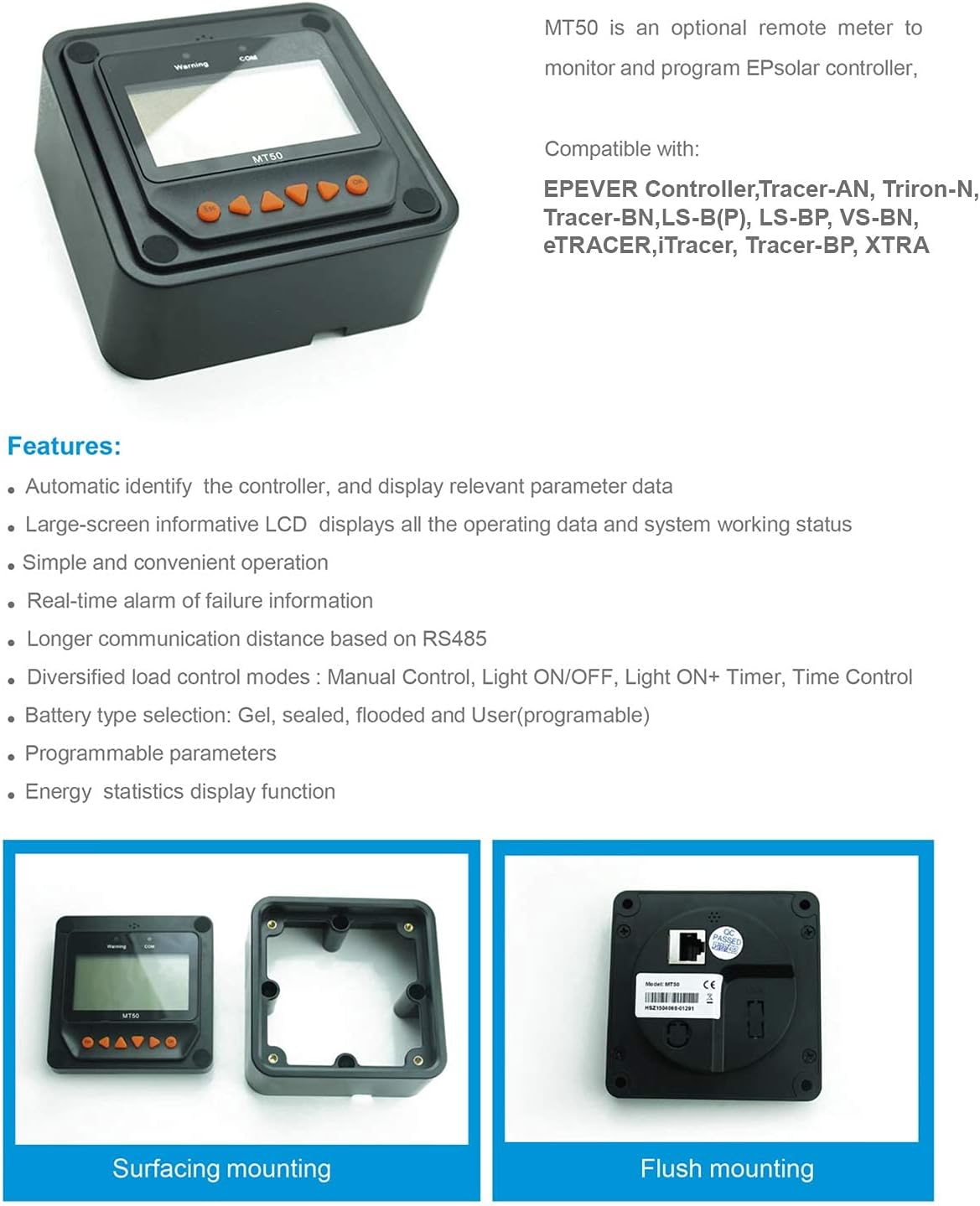

EPEVER MPPT Solar Charge Controller 40A Tracer4210AN + MT50 Remote Meter+ RTS300R47K3.81A Temp Sensor cable. Tracer4210AN Technical datas : Rated charge current:40A System nominal voltage :12V/24VDC Auto identifying Max.PV open circuit voltage:100VDC Max. PV input power : 520W for 12V battery / 1040W for 24V battery Battery type: Lead-acid: Sealed (default)/ Gel/ AGM/ Flooded / User (9～17V@12V; 18～34V@ 24V) & Lithium: LiFePO4 (4s/12V; 8s/24V), Li (NiCoMn)O2 (3s/12V; 6s/24V), User (9～34V) & User-defined. Battery voltage range: 8V~32V Terminal: 6AWG(16mm2) Dimension: 252*180*63mm Net weight: 1.65kg Electronic Protection Functions : PV Over Current/power ;PV Short Circuit;PV Reverse Polarity;Night Reverse Charging; Battery Reverse Polarity;Battery Over Voltage;Battery Over Discharge;Battery Overheating,Controller Overheating ;Lithium Battery Low Temperature; Load Short Circuit ;Load Overload;TVS High Voltage Transients. MT-50 Features: Automatic identify controller, display relevant parameter data; Large-screen informative LCD displays all operating data and system working status; Simple and convenient operation ; Real-time alarm of failure information; Longer communication distance based on RS485 Diversified load control modes : Manual Control, Light ON/OFF, Light ON+ Timer, Time Control; Battery type selection: Gel, sealed, flooded and User(programable), Programmable parameters; Energy statistics display function Package List: 1 x MPPT Solar Charge Controller (Tracer4210AN) 1x Temp sensor for controller ( RT-MF58R47K3.81A) 1 x Remote Meter MT50 1x Temp sensor cable for battery (RTS300R47K3.81A ) 2 x User Manual (English)

Product Overview
