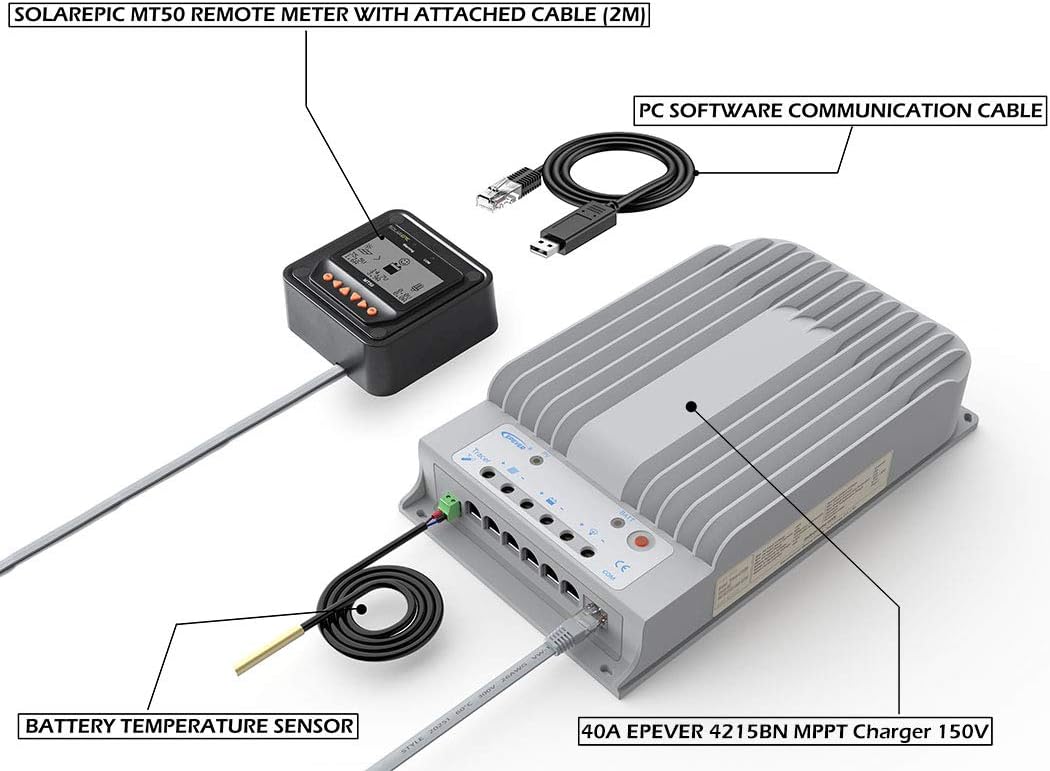

EPEVER MPPT Solar Charge Controller 40A 150V PV Solar Panel Controller Negative Ground W/ MT50 Remote Meter + Temperature Sensor PC Monitoring Cable[Tracer4215BN] : Garden & Outdoor

Description

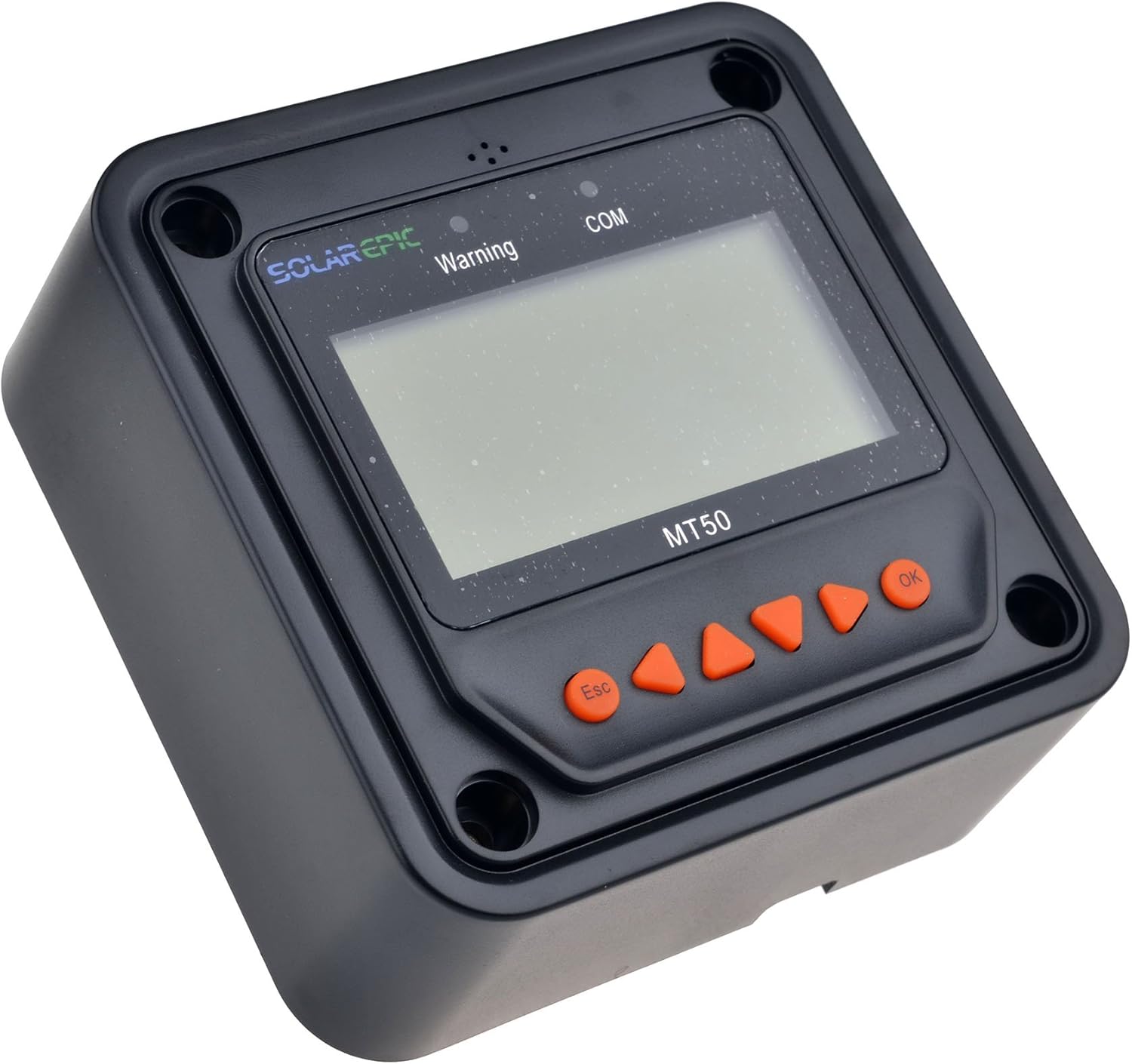

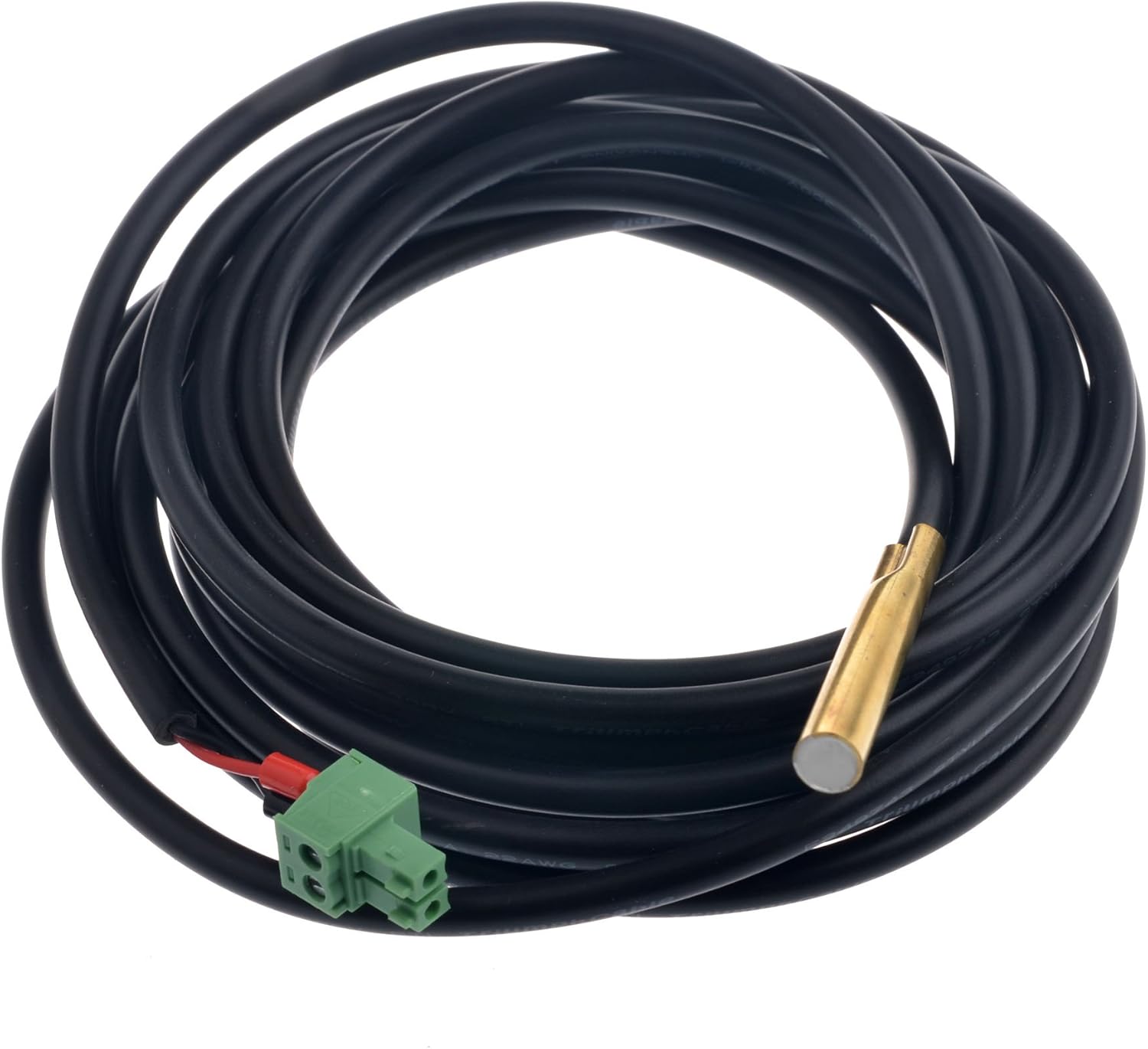

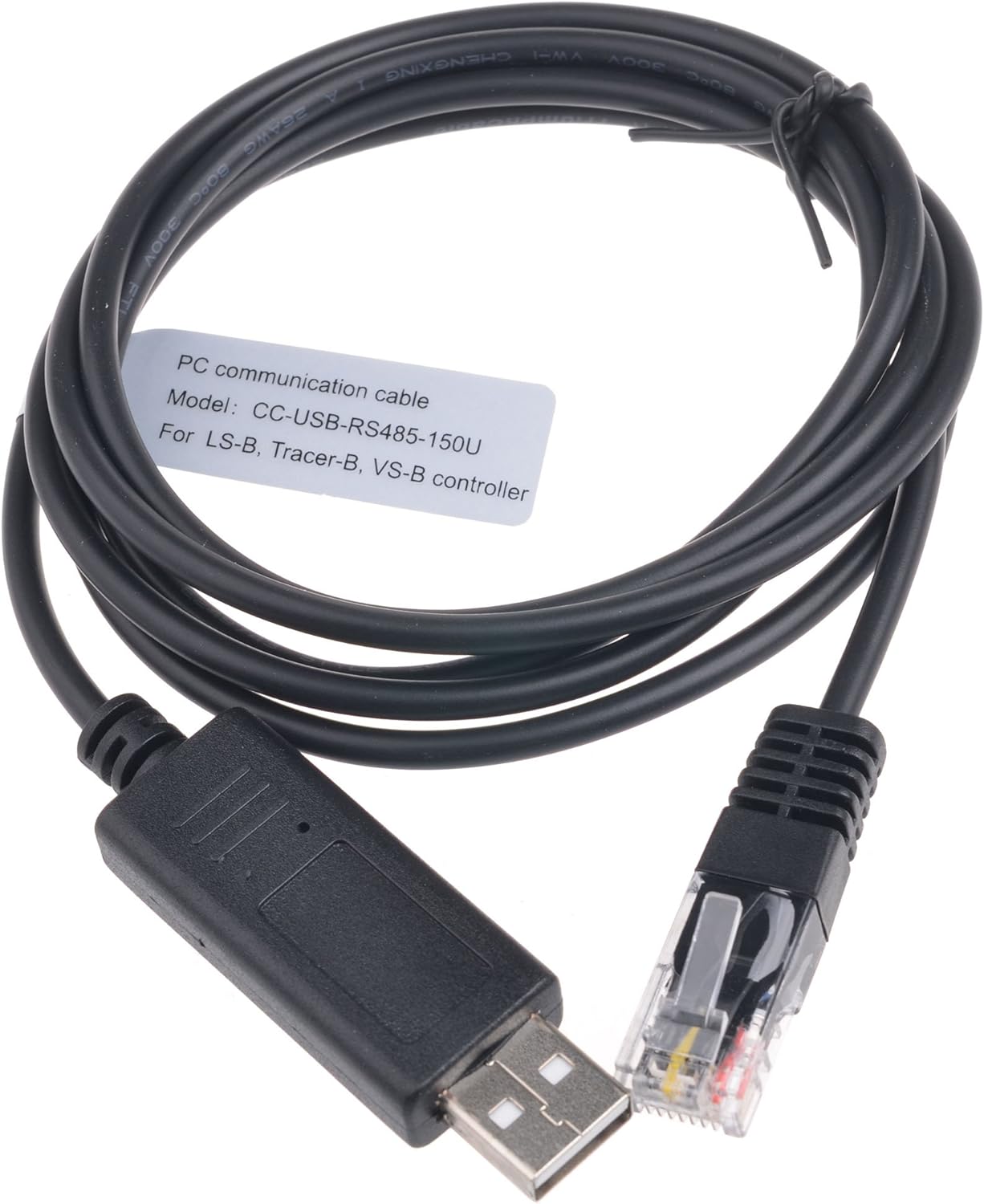

Prolong The Life Of Your Battery! The smart battery protection system shields your device from getting over charged, over load, discharge, over heated, reverses polarity and also provides efficient short circuit protection. It can handle 520W Solar Panel on 12v battery system or 1040W Solar Panel on 24v battery system. Works equally great for home, industrial or commercial use. Designed for optimum and safe charging performance. Technical Data 40A MPPT Charge Controller Nominal System Voltage: 12V, 24V Rated Charge Current: 40A Rated Load Current: 20A Max PV Open Circuit Voltage: 150V / 138V Max PV Input Power: 520W (12v battery) / 1040W (24v battery) MT50 Remote Meter Faceplate dimension:98×98 mm / 3.86×3.86 inch Frame dimension:114×114 mm / 4.49×4.49 inch Connector type: RJ45 Meter cable:Standard 2m,Max 50m Ambient Temperature: -20°C -- +70°C/-4°F -- 158°F Remote Temperature Sensor Acquisition of battery temperature for undertaking temperature compensation of control parameters Length: 3 M USB to RS485 Converter Adapter This adapter is used to monitor each controller on the network using Solar Station PC software and update the firmware. Negative Grounding, 150V /138V PV Input Metal Case allows for natural heat dissipation Support 4 charging options: Sealed, Gel, Flooded and User 4 Stage Charging Serial connection (string) of PV modules allows minimize the charging current as a way of saving the energy Advanced Maximum Power Point Tracking (MPPT) technology, with efficiency no less than 99.5% Ultra-fast tracking speed and tracking efficiency Features Standard Modbus Interface with RS485 Port Built with advanced power tracking technology to optimize the working of your solar charger system. The controller features a smart tracking algorithm that maximizes the energy from the solar PV module(s) and charge the battery. It supports over four charging options: sealed, gel, flooded and user-defined. Battery parameters can be set using the attached MT50 remote meter. Wide LED screen displays the real time operational data and the working status in digital, graphic and textual forms. Basically used for monitoring and setting the controller, it automatically identifies the type, model and relevant parameter data of solar controllers. It is used to monitor each controller on the network using Solar Station PC software and update the firmware. Measures 3m and works great for Tracer BN/A series MPPT charge controller. The connectors are well made to secure the connection.
