Description

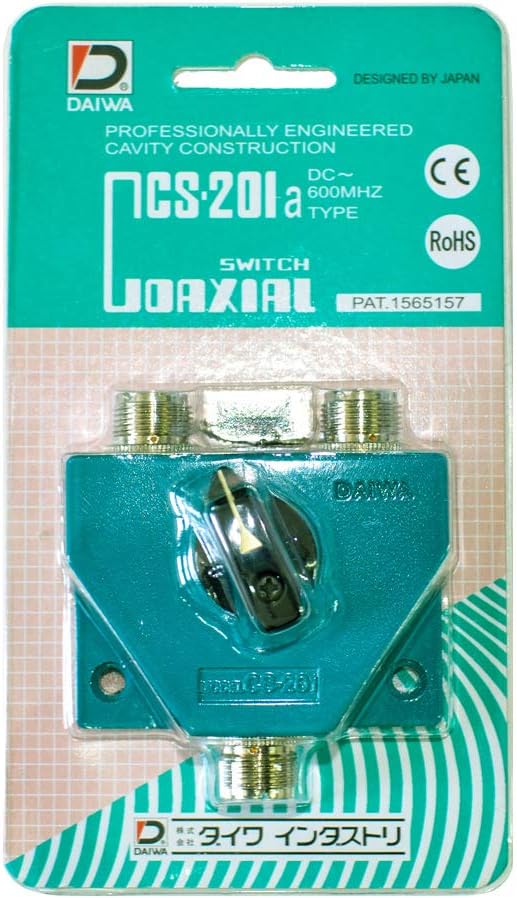

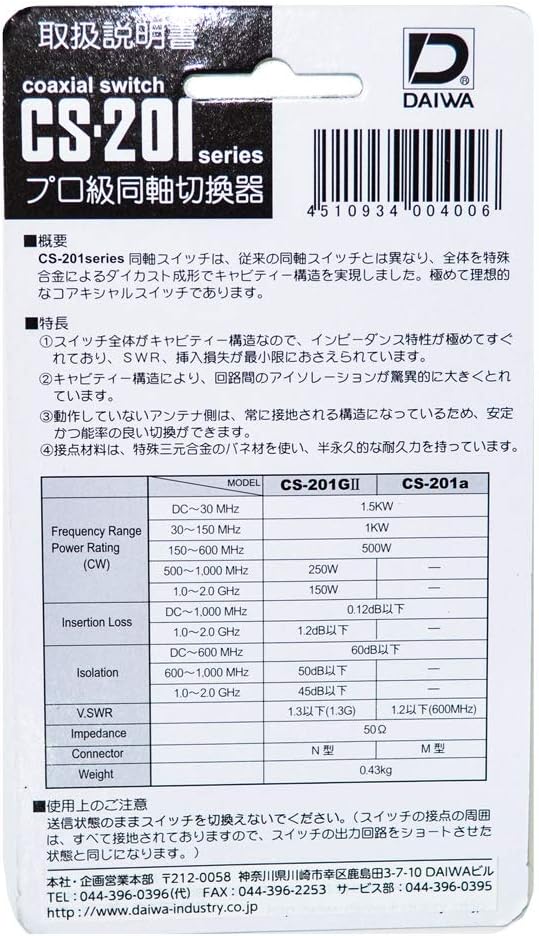

Daiwa CS-201A - 2-Position Coax Switch with UHF Connectors. These can be used to switch between one antenna and two radios or two antennas and one radio. These 2-position coaxial switches can handle the power and offer auto grounding of the unused terminal for protection and excellent port isolation. Specifications: 2 Position Coax Switch Frequency Range (up to) DC–600 MHz Power Rating: 1KW CW / 2.5kW (PEP) Insertion Loss: Less than .2 dB Isolation: 60dB @ 600 MHz Unused Position Grounded Connectors: SO-239 (UHF-Female) None
