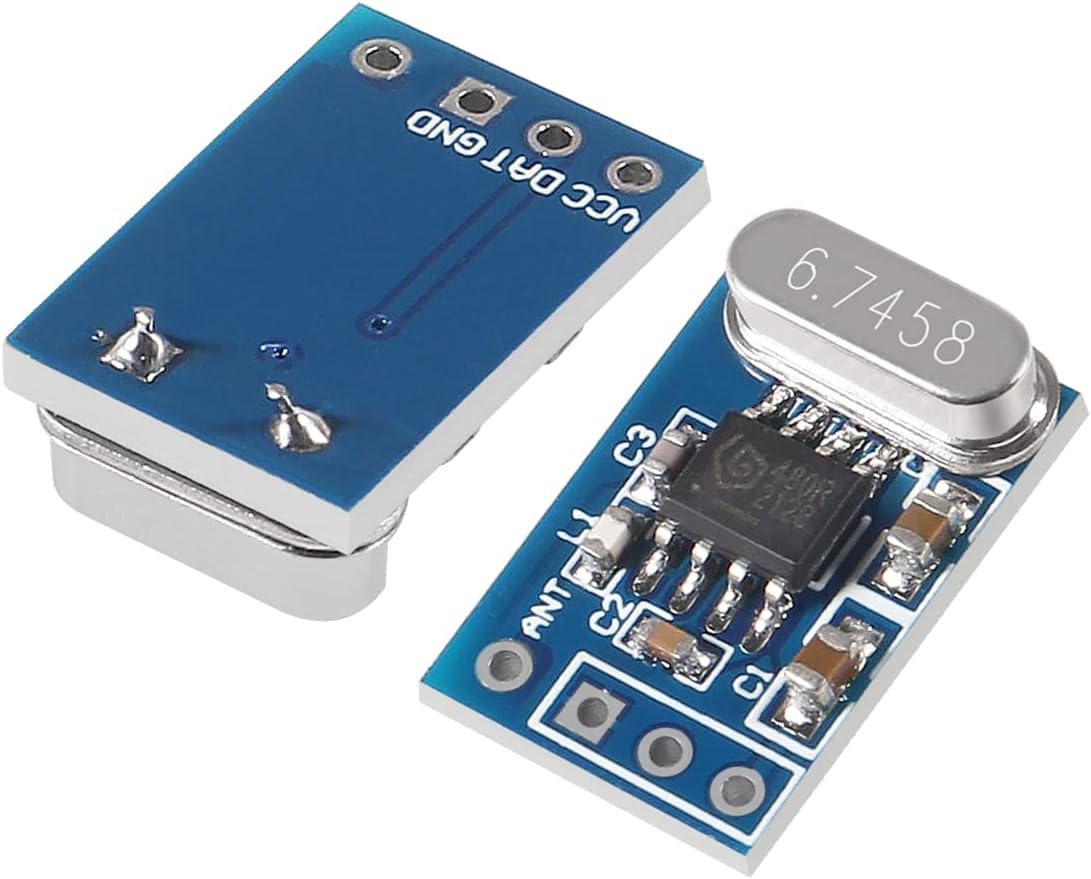

AITIAO 4Sets 433MHZ SYN115 SYN480R Wireless Transmitter & Receiver Board Module Kit SYN115 SYN480R Ask/OOK Chip PCB for Arduino : Electronics

Description

Feature:Transmitter Module SYN115:1. On-board single-chip ASK transmitter chip SYN115/F1152. The module transmitting frequency: 433MHz3. Module output power:<10dBm4. The module transmission rate: <10kbps5. The module supply voltage :1.8-3.6V6. PCB size: 15 x 11.8mm / 0.59 x 0.46inReceiver Module SYN480R:1. On-board single-chip wireless SYN480R ASK/OOK receiver chip2. The module receiving frequency: 433MHz3. Module receiver sensitivity: -107dBm4. The module transfer rate: 2.5kbps (SWP), 10kbps (FIXED)5. The module supply voltage: 3.3-5.5V6. PCB size: 17.2 x 11.8 mm / 0.67 x 0.46inPackage Included4 sets X 433MHZ Transmitter & Receiver Module SYN115 SYN480R ASK Wireless ModuleNote:Please allow slight size errors due to manual measurement.Please allow slight color differences due to different screen displays.
