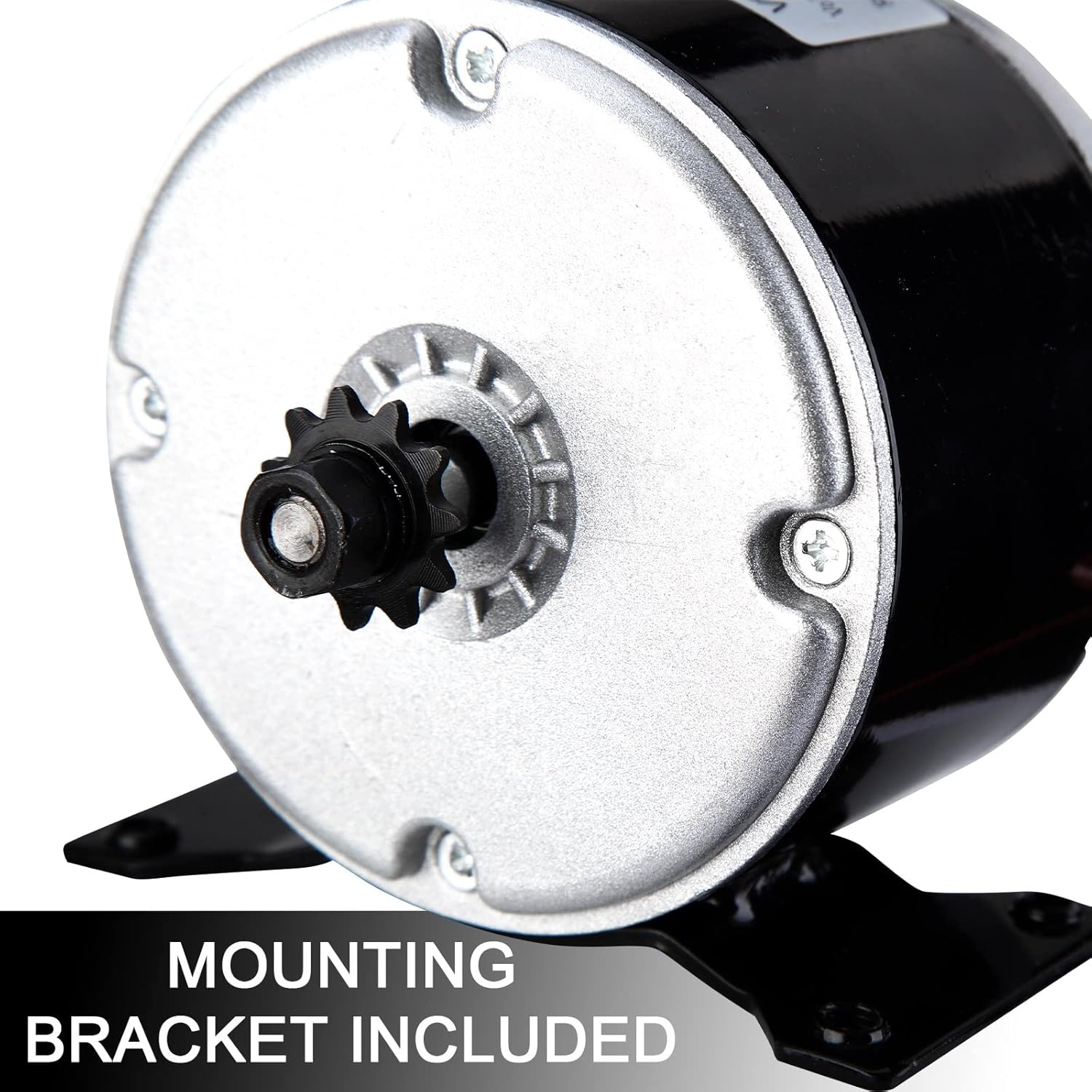

Vevitts 250W Brushed Electric Motor, Small Brushed Permanent Magnet Electric Motor for E Scooter Drive Speed Control 24V 2700RPM

Description

Features: All aluminum body copper movement, Electric Motor with Forward and Reverse Design, Motor clockwise Running is the correct direction, counterclockwise is the recersing (The counterclockwise rotating speed will be 200-300rpm less than working in the clockwise). Application: Replacement Motor is for Bicycle, Scooter, Dirt Quad Scoot, E-Scooter, Go-kart, E Bike, ATV, Go Karter, Skateboard, Minibike, E-ATV, Bike etc. Specification: - Voltage: 24V - Rated Current: 14A - Chain drive (11 teeth sprocket): #25H Chain 6.35 pitch - Sprocket Diameter: 25mm - Shaft Diameter: 8mm - Output: 250W - Rated Speed: 2700RPM - Wiring: 2 (Black & Red) - Type of motor: DC, Brushless - Torque: 0.97Nm (0.72 ft·lb) - Load capacity: 75KG - Motor Weight: 4 Lbs Distance between holes on each tab is about 42mm(1 3/4") Distance between holes across the tabs is about 95mm(3 3/4") The Size of Threaded Holes: 5.6mm(1/4") Motor Dimension: 5.11 x 3.94 x 4.72" Cable Length: Approx. 13.4" Package Includes: 1 x 250W Permanent Magnet Electric MotorNote: During working, the motor will be a little fever, it is a normal. To calculate the overall star rating and percentage breakdown by star, we don’t use a simple average. Instead, our system considers things like how recent a review is and if the reviewer bought the item on Amazon. It also analyzed reviews to verify trustworthiness.
