DC Miniature Circuit Breaker, 2 Pole 1000V 125 Amp Isolator for Solar PV System, Thermal Magnetic Trip, DIN Rail Mount, Chtaixi DC Disconnect Switch C125: Tools & Home Improvement

Description

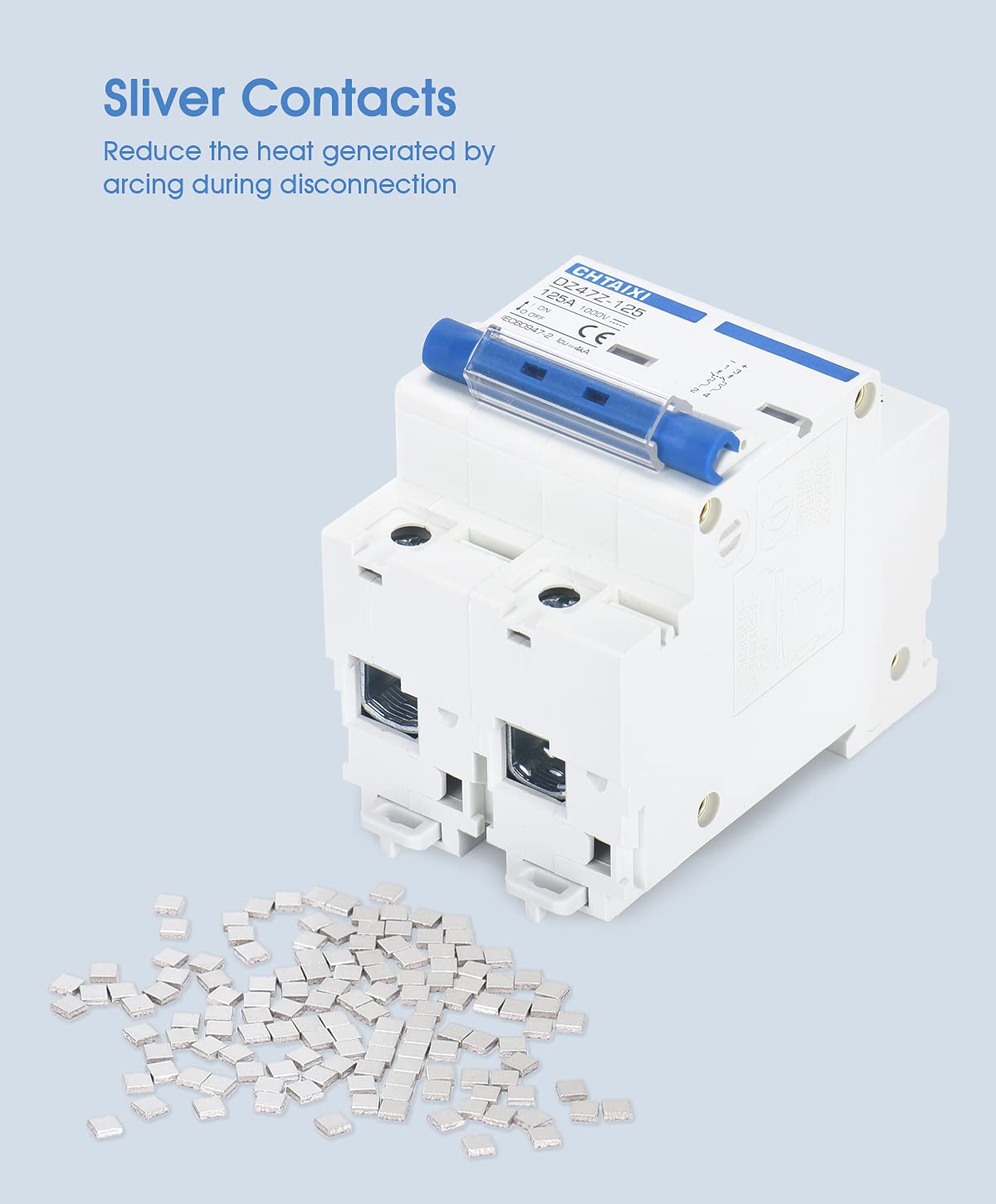

See more product details AC has a zero-crossing point, but DC does not, so DC arc is more difficult to extinguish than AC arc, which is why AC circuit breakers can not be used for DC power, and DC circuit breakers can be used for AC power. This DC mini circuit breaker is equipped with a magnetic field system under the breaking contacts, which can pull the arc to the arc extinguishing chamber to assist arc extinguishing. Contacts are very important to circuit breakers, especially for DC distribution with high arc extinguishing requirements. Good contacts can reduce the heat generated by arcing during disconnection and reduce the wear of the contacts. This DC circuit breaker uses silver alloy contacts, which improves electrical durability, and protects your electricity safety for a long time. The clamping design of the terminal block is designed to connect firmly, and the tightening torque is 3.5 N.m. Make sure that the wires are tightly connected when connecting to prevent loosening and heating. The surface of the terminal is tin-plated, and the plating layer can improve conductivity, corrosion resistance, and durability. This DC MCB has no polarity requirement in use, and the positive and negative poles can be inverted. However, the installation, use, and maintenance of DC circuits are based on polarity requirements. So, in order to provide reliable indication and reference for the distribution, we highly recommend that you connect the wires according to the marked polarity. Install the 35mm DIN rail horizontally in a stable environment. Hang the circuit breaker slot on the DIN rail Push the lower end of the circuit breaker into the DIN rail Use a slotted screwdriver to pull the snap down Remove the circuit breaker from the DIN rail

Product Overview
