TESmart 16×1 HDMI Switch 16 in 1 Out 4K@30Hz HDCP 1.4 with 19-inch Rack-Ears | RS-232 / LAN Control | IR Remote Control and Auto Switch | Auto Scan Time Interval - Black: Electronics

Description

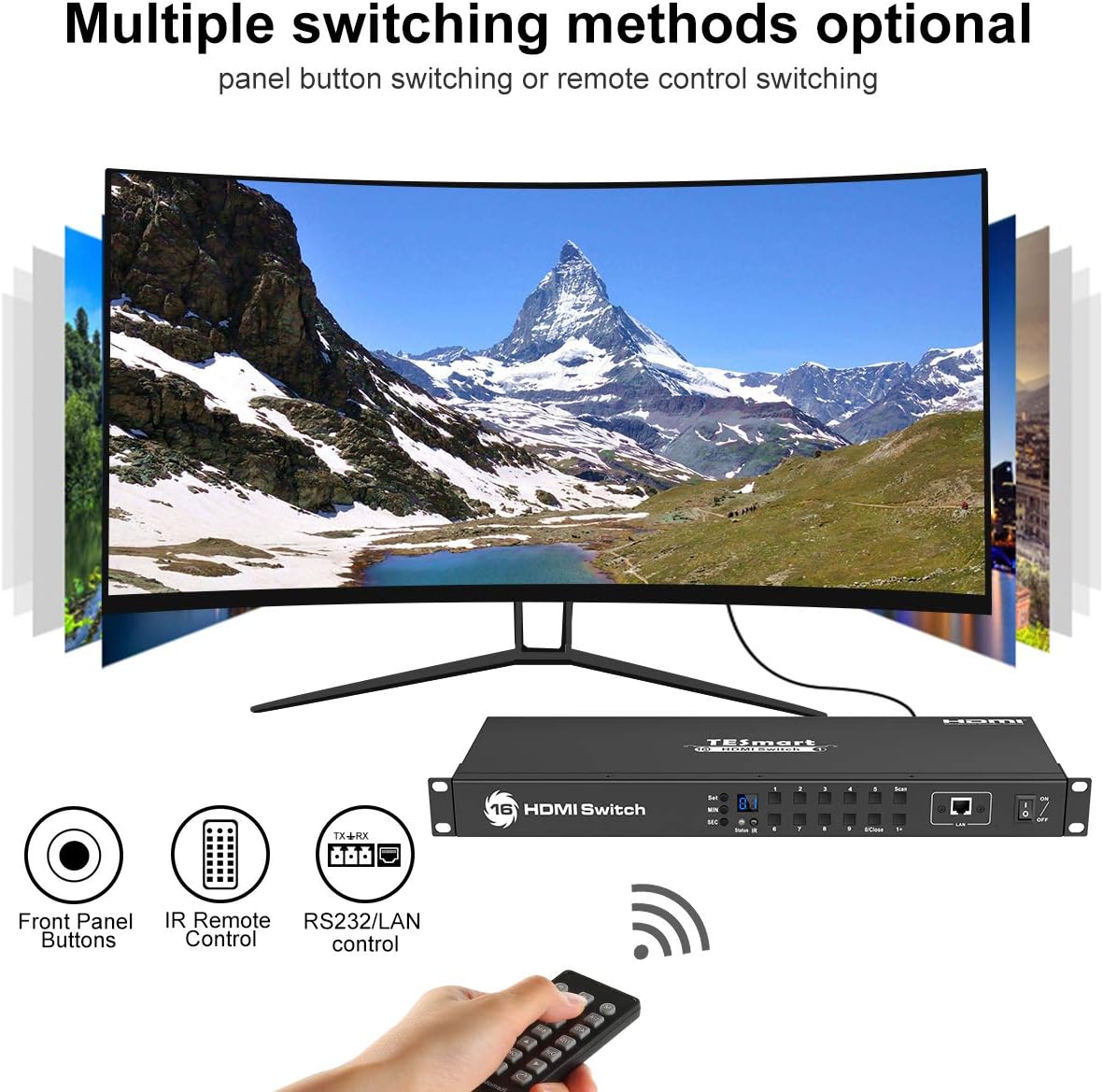

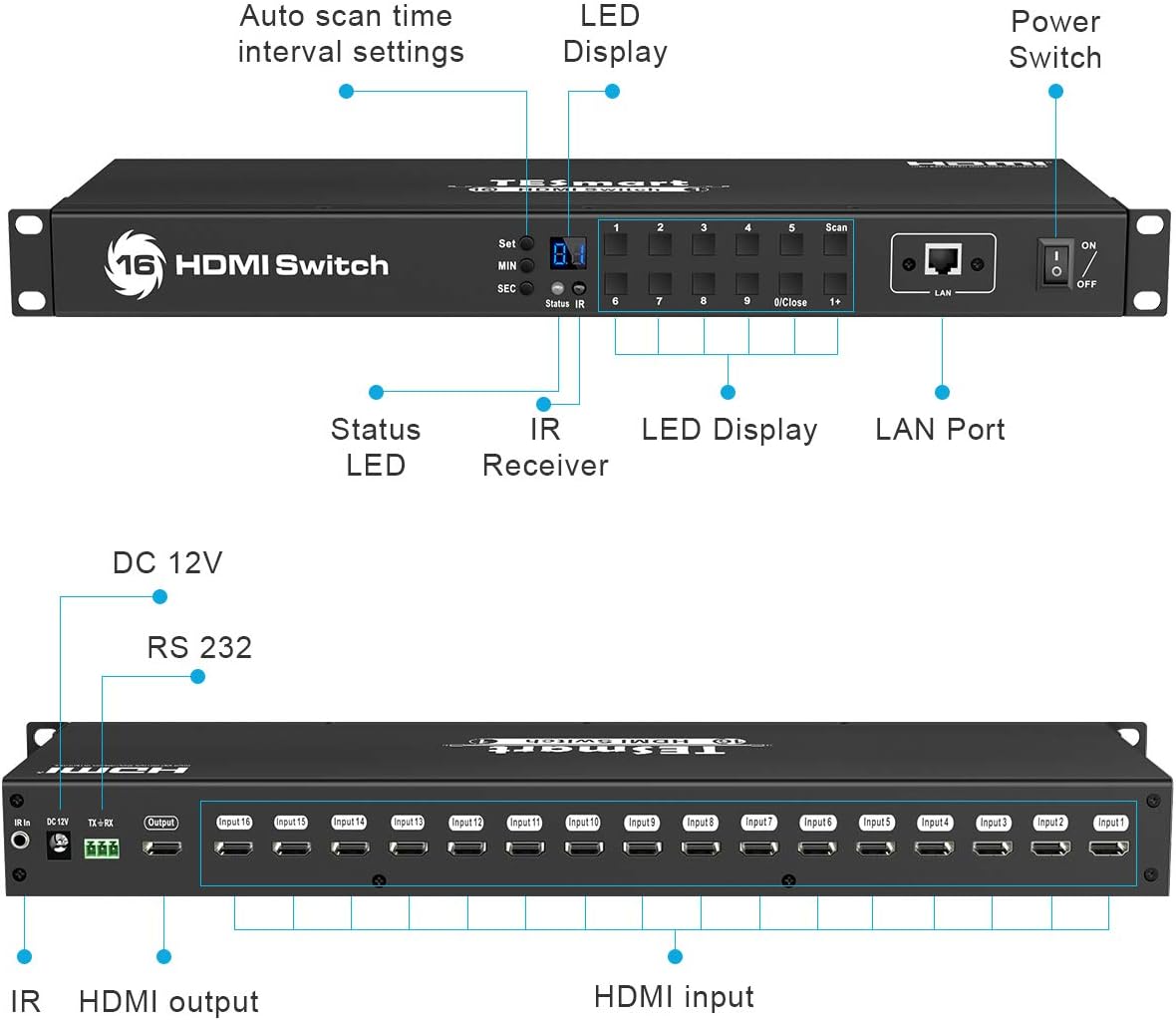

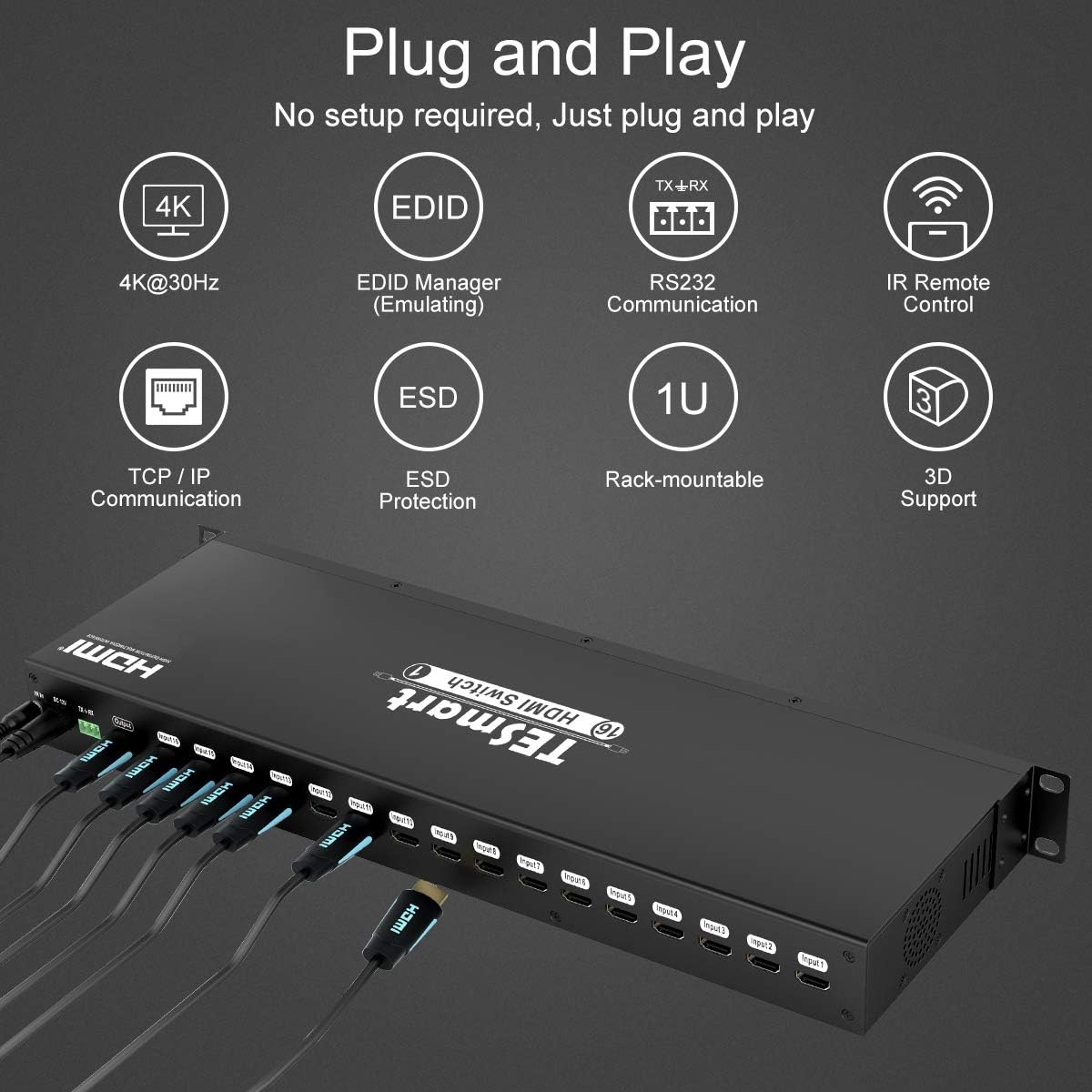

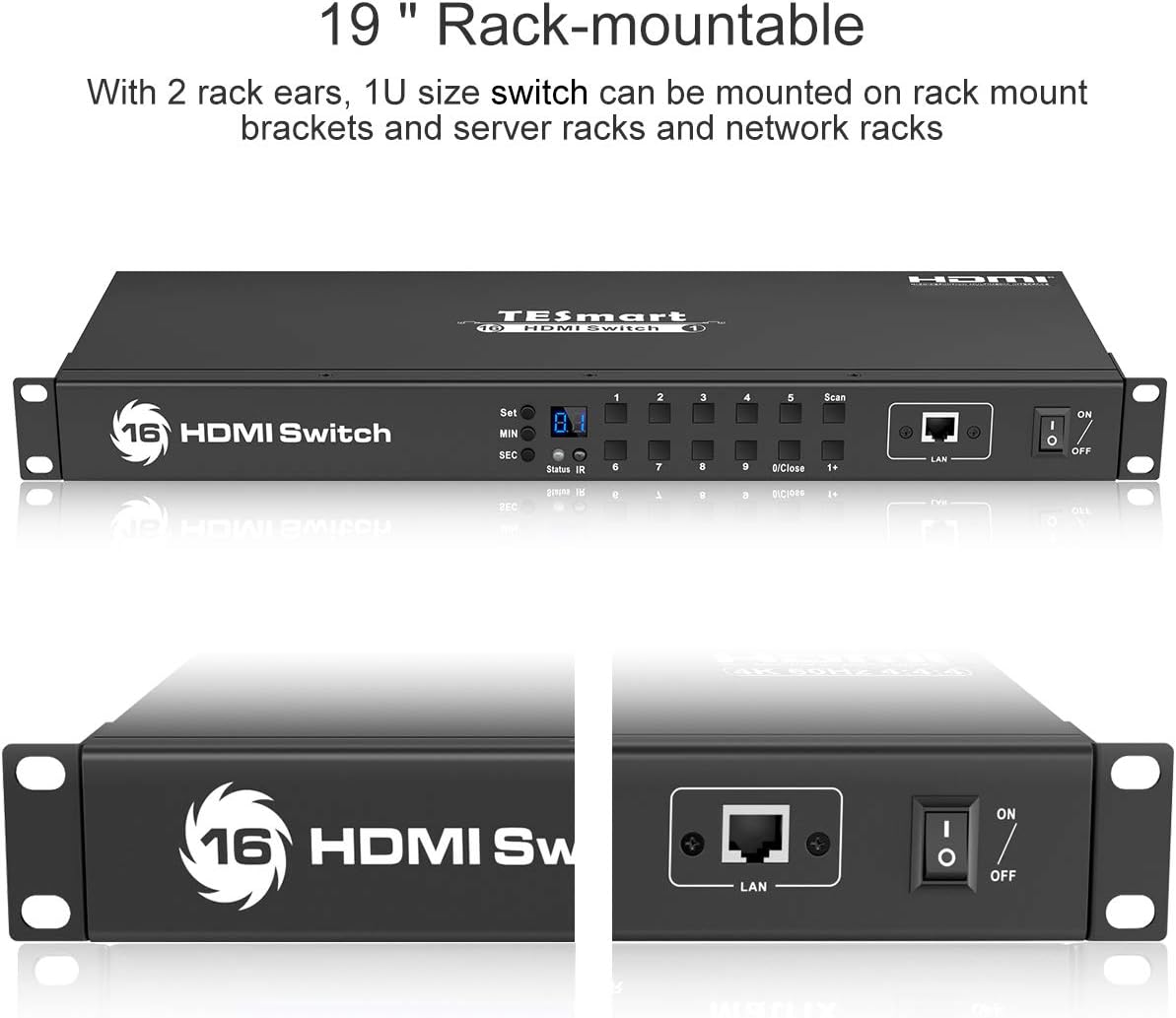

TESmart --16 Input 1 Output HDMI Switcher 4K # HSW1601A10 The 16 ports HDMI switch HSW1601A10, allows up to 16 Ultra HD sources to be routed to one Ultra HD display. Support resolutions up to 4K (3840 x 2160 @ 30Hz). Deep Color, 3DTV pass-through, and lossless audio formats such as LPCM 7.1, Dolby TrueHD, and DTS-HD Master Audio are also supported. Support automatic input source detection, when attaching new input device to the switch, the switch will switch to last plugged in source automatically. With EDID emulators in every input ports, keep PCs always have correct display information, prevent display settings changed while switching input ports. Connect RS232/LAN port to any control termination, then it is able to select the input sources by sending RS232/LAN commands. You can dowlaod the commmands on our website It is very suitable for engineering needs because it can be placed on 19-inch racks /cabinets. The package will come with two ear hooks and some screws. Connect the IR extension cable to the IR port, and place the infrared signal receiver in an obvious place, which can be easily controlled by the remote control. HDCP stands for High-Bandwidth Digital Content Protection, a copy protection scheme to eliminate the possibility of intercepting digital data midstream between the source to the display. It can be used with confidence Products compatible with the HDCP scheme such as DVD players, satellite and cable HDTV set-top-boxes,and so on. [Scan]: Press this button to start or stop automatically scan between input 1 to input 8. [MIN]: Press [MIN] to loop between 0~59 minutes [SEC]: Press [SEC] to loop between 0~59 seconds [Set]: After setting minutes and seconds, press button [Set] to enter final scan time interval setting. 1 * 16x1 HDMI Switch 1 * DC 12V 2A Power Adapter 1 * IR Remote Control 1 * IR Receiver Cable 1 * 3 Pins Connector(For RS232) 2 * Rack-ears 1 * Quick-Start Guide The 16 ports HDMI switch HSW1601A10, allows up to 16 Ultra HD sources to be routed to one Ultra HD display. Support resolutions up to 4K (3840 x 2160 @ 30Hz). Deep Color, 3DTV pass-through, and lossless audio formats such as LPCM 7.1, Dolby TrueHD, and DTS-HD Master Audio are also supported. Support automatic input source detection, when attach new input device to the switch, the switch will switch to last plugged in source automatically.FeaturesWith EDID emulators in every input ports, keep PCs always have correct display informationSupport hot plug, connect or disconnect devices to the HDMI switch in any time and without turn off devicesSupport auto-switching to monitor computers in a specified time intervalSupport front panel buttons, IR signals, RS232 serial commands or IP commands to control HDMI switchSupport resolution up to 3840*2160@30HzAuto input detect and switchSupport DVI-D single link sources and displays with the use of HDMI-to-DVI adaptersPacking List1 * 16x1 HDMI Switch1 * DC 12V 2A Power Adapter1 * IR Remote Control(Without battery, Battery model: CR2025)1 * IR Receiver Cable1 * 3 Pins Connector(For RS232)2 * Rack-ears1 * Quick-Start Guide

Product Overview
