Parts & Accessories SP Racing F3 Flight Control Acro 6 DOF/Deluxe 10 DOF for QAV250 Mini 250 280 210 180 Quadcopter Better Than Naze/ Flip32 - (Color: Acro 6 DOF) : Toys & Games

Description

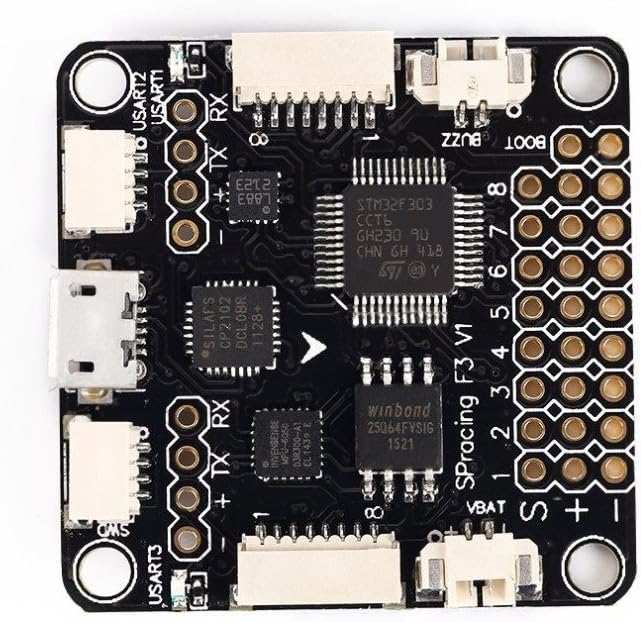

Specifications:Item Name:  F3 Flight ControlVersion: Acro 6DOFand Deluxe 10DOF *35x35mm board, 30mm mounting holes.* STM32F3 CPU.* High-capacity Flash (Acro 6DOF and Deluxe 10DOF)* MPU6050 Accelerometers and Gyroscopes* MS5611 Barometer (Deluxe 10DOF)* HMC5883 (Deluxe 10DOF)* MicroUSB socket.* 4 x 4 pin JST-SH Socket (I2C, SWD, 2xuart)* 2 x 8 pin JST-SH Socket (PPM, PWM, SERIAL RX, GPIO, ADC, 3V, 5V, GND)* 8 x 3 pin though-holes for pin headers for ESC / Servo connections.* 2 x 4 pin though-holes for the 2x serial ports .* 2 x 2 pin though-holes for battery voltage and buzzer.Features:Better coding practices and introducing tests, easier to maintain and for future development. (Dominic has software development background)Many bugs fixed from Baseflight.Supports more flight controllers, including CC3D, CJMCU and Sparky.Supports OneShot ESC and more than 8 RC channels.Additional PID controllers that uses floating point arithmetic operations. (now has 3 built-in PID Controllers)Many more features such as RGB LED strip support, Autotune, In-flight PID tuning with your radio, blackbox flight data logging etc.Flight PerformanceThe F3 builds on tried and tested software, processor and sensor technology to make your aircraft fly like it's on rails.No-Compromise I/OUse all the features all the time. e.g. Connect your OSD + SmartPort + SBus + GPS + LED Strip + Battery Monitoring + Sonar + 8 motors - all at the same time!ConfigurableThe F3 runs Cleanflight which can be configured to suit your needs using a cross-platform GUI (Windows/OSX/Linux).Tiny and lightweightThe F3 has a standard 35x35mm form-factor with 30mm mounting holes and weighs just 6 grams.Flight LoggingOn-board high-capacity black box flight log recorder - optimize your tuning and see the results of your setup without guesswo To calculate the overall star rating and percentage breakdown by star, we don’t use a simple average. Instead, our system considers things like how recent a review is and if the reviewer bought the item on Amazon. It also analyzed reviews to verify trustworthiness.

Product Overview
