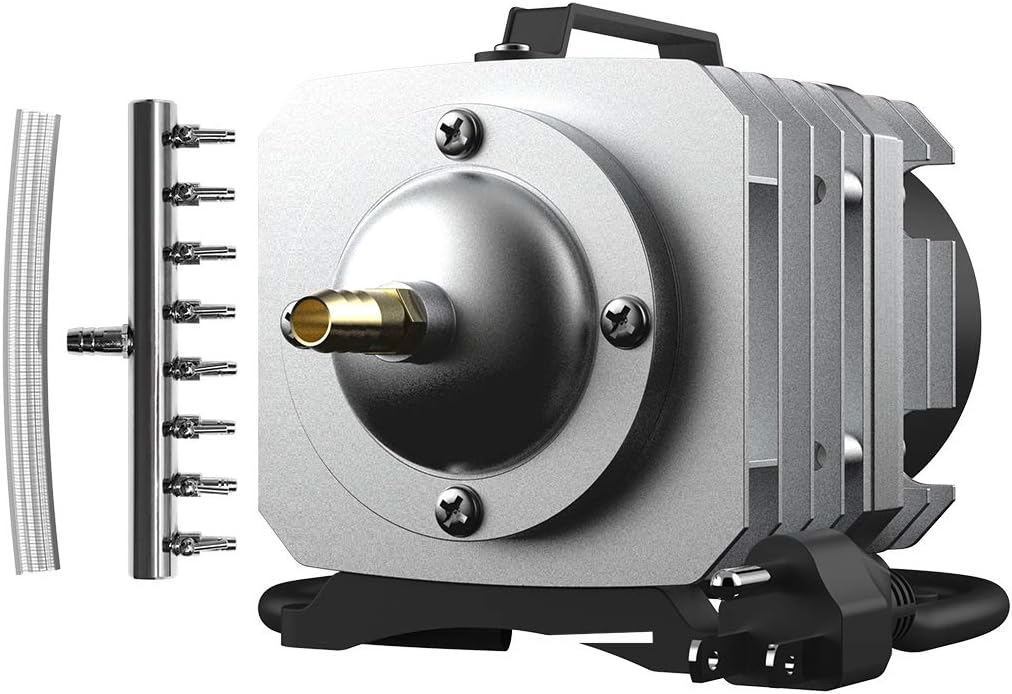

VIVOHOME Electromagnetic Commercial Air Pump 317GPH 20W 6 Outlets 110V for Fish Tank Aquaponics and Hydroponic Systems : Patio, Lawn & Garden

Description

Product Specifications: Voltage: 120V/60Hz Power: 20W Maximum Airflow Rate: 317GPH Maximum Pressure: 0.016Mpa Outlets: 6 Noise Level: <60db Power Cord: length of 55.1 Inches, UL listed three-pin plug Connect the air outlet adapter to the distributor and start the unit. For use in an aquatic breeding pond, the outlet hose may be connected to pipe distributors for air stones or art curtains In case the air exhaust is reduced or without air exhaust, check the connecting parts for leakage, or disconnect the plug, remove the front cover, the valve, and the valve base, wash away the dust on them with water, remount with care after drying. If the units do not work after connecting to the power source, in most cases the connecting point of the diode is broken or obvious shifting happens between the gap of the motor's piston and housing due to the rough transportation, reassembly of all parts is needed for resuming. When the electromagnetic coils are energized by AC power, a magnetic force is generated. Under the action of this magnetic force and the pressure spring, the piston moves reciprocally so that the volume of the cylinder changes. This leads to the automatic opening and shutting of the inlet and outlet valves and thus achieves the work cycle of the air intake, compressing, and discharging. It's used for aquaculture, oxygen supplying for seafood in hotels, restaurants, seafood booths, and feeding pools, etc. It's also used for air supply spare parts of food machine, bathing pool, medical instrument, art spraying, designing and making advertising lamp and new-type LPG and LNG, etc. Under high air pressure working, it's normal that the air pump turns a little hot. Appropriate operation to dissipate the heat can prolong the life of the air pump. Correct storage is necessary. Please keep the unit away from high temperature, sunshine, damp or dust. Make sure the appliance is grounded properly while in use to protect the operator from electric shock.
