STC-1000 AC/DC 24V Temperature Controller: Industrial & Scientific

Description

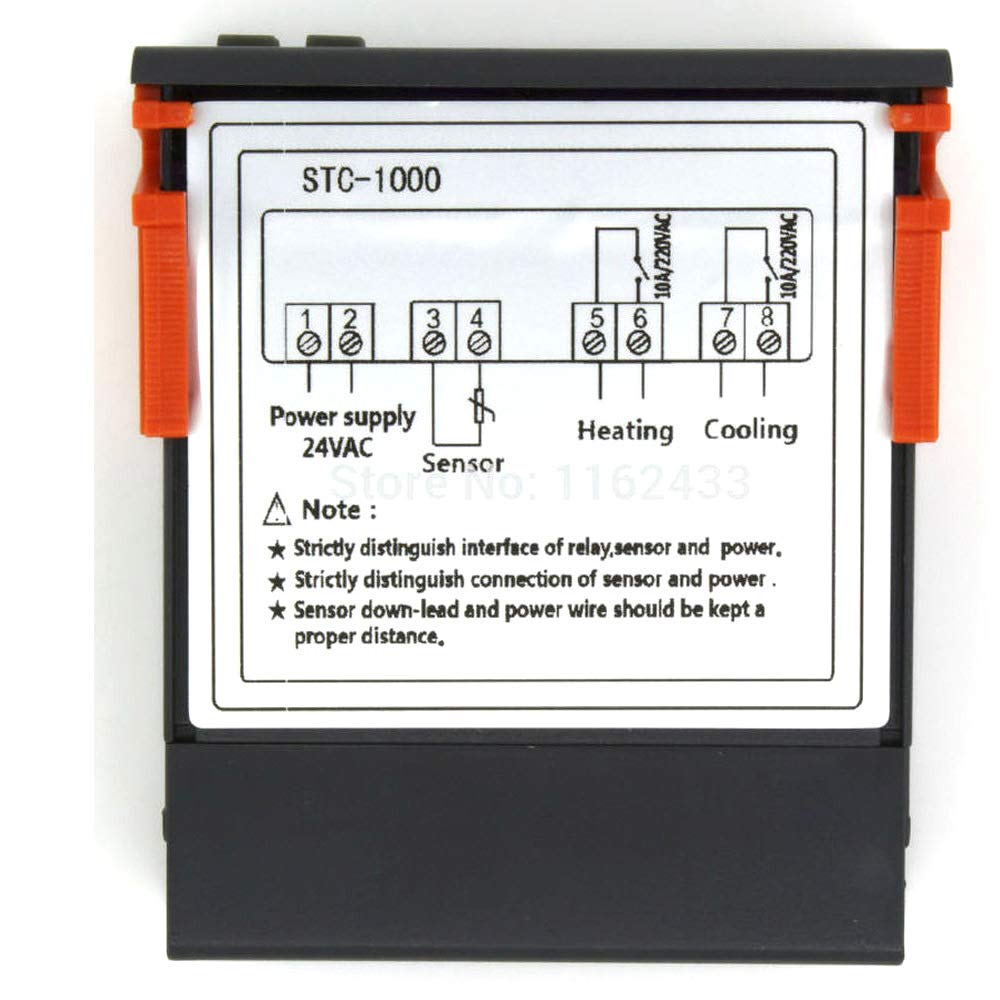

See more product details Supply voltage:220, 110, 24, 12V110VAC24VAC/DC12VAC/DC STC-1000 defrost temperature controller finglaiGeneral Model number STC-1000 Related product Visiting... Measure range -50 to 99 °C Setting range -50 to 99 °C Resolution 0.1 °C Accuracy ±1 °C (-50 to 70 °C) Supply voltage 220Vac, 110Vac, 50/60Hz; 12Vac/dc, 24Vac/dc Power consumption Less than 3W Output types Two Mechanical Relay Input types One NTC Panel size 75x34.5 mm External dimensions 75x34.5x85 mm Perforation dimensions 71 10x29 10 mm Control method ON/OFF Control Setting method Touch switch Indication method 8-segment 3-digital display and LED indication Front panel IP Rating IP65 Operating temperature 0 to 60 °C (32 to 140 °F) Operating humidity 20% to 85% RH, non-condensing Storage temperature -30 to 75 °C (-22 to 167 °F) Alias name freezer temperature controller, defrost thermostat, freezer thermostat finglaiOutput type and description Electromagnetic relay Contact rating: 10A at 250Vac/30Vdc, one for cooling, one for heating finglaiSTC-1000 defrost temperature controller wiring diagram To calculate the overall star rating and percentage breakdown by star, we don’t use a simple average. Instead, our system considers things like how recent a review is and if the reviewer bought the item on Amazon. It also analyzed reviews to verify trustworthiness.
