K11-100mm CNC Router 4th Axis Rotational Axis A axis 100mm 3 Jaw Chuck Rotary Table Dividing Head Reducing ratio 6:1 with 65mm Tailstock for CNC Milling Engraving Machine - -

Description

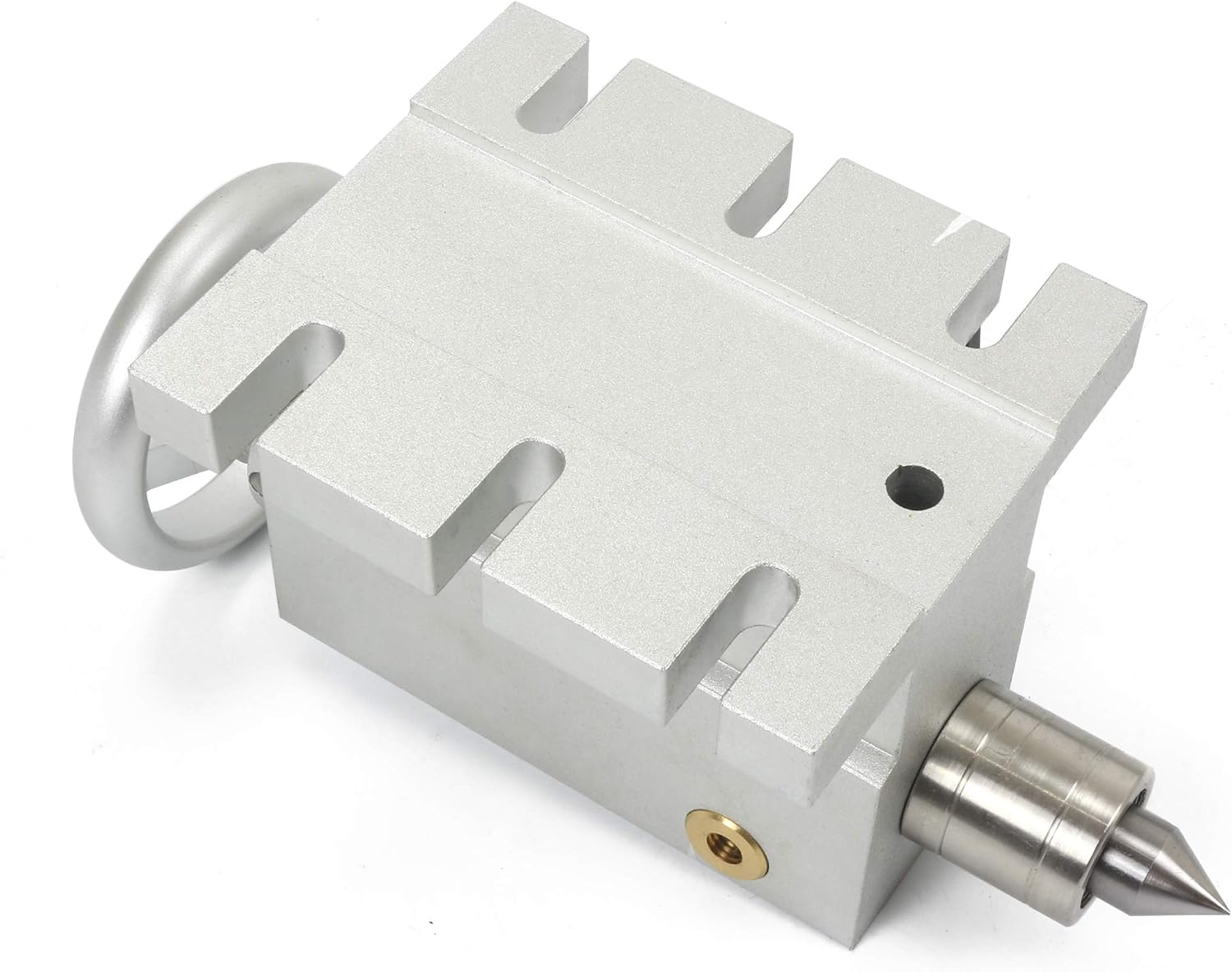

Chuck type: K11-100mm 3 jaw centering chuck Center height: 65mm Total height: 115mm Angle: 0.3°/ step Gear box output shaft diameter: 25mm Reducing ratio: 6:1 (belt deceleration mode) Accessories: Set of Anti-claw and wrenches 3 jaw centering chuck Suitable for clamping various types of materials Mach3 system settings: the pulses required for 1° (Motor 1 lap pulses x Driver fine fraction x Reduction ratio) ÷ 360° For example: 57mm 2- phase stepper motor, fine fraction of 16, reduction ratio 100:1 (200 x 16 x 100) / 360=888.88888888) Weihong system settings: 1 pulse along the angle 360°/(Motor 1 lap pulses x Driver fine fraction x Reduction ratio) For example: 57mm 2- phase stepper motor, fine fraction of 16, reduction ratio 100:1 360 / (200 x 16 x 100) =0.001125 Nema23 stepper motor Size: 57x57x76mm Shaft Diameter: 8 mm Shaft length: 25.5mm Step Angle:1.8 Current: 3A Voltage: 4.2V Temperature Rise: 80 c max Insulation Resistance: 100MOhm(500V DC) Holding Torque: 18kg.cm Center Height: 65mm Stretch distance: 50mm Top tip: Activity type Axial locking wrench for tailstock
