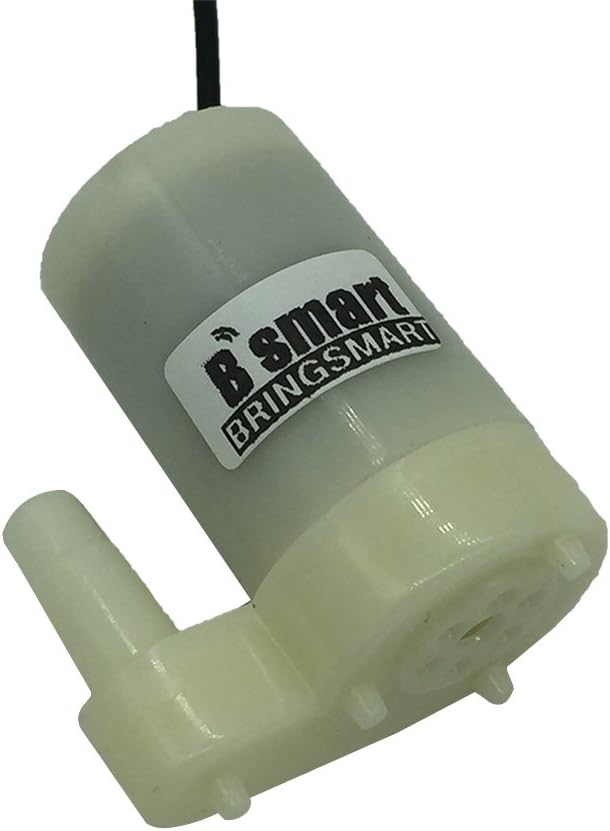

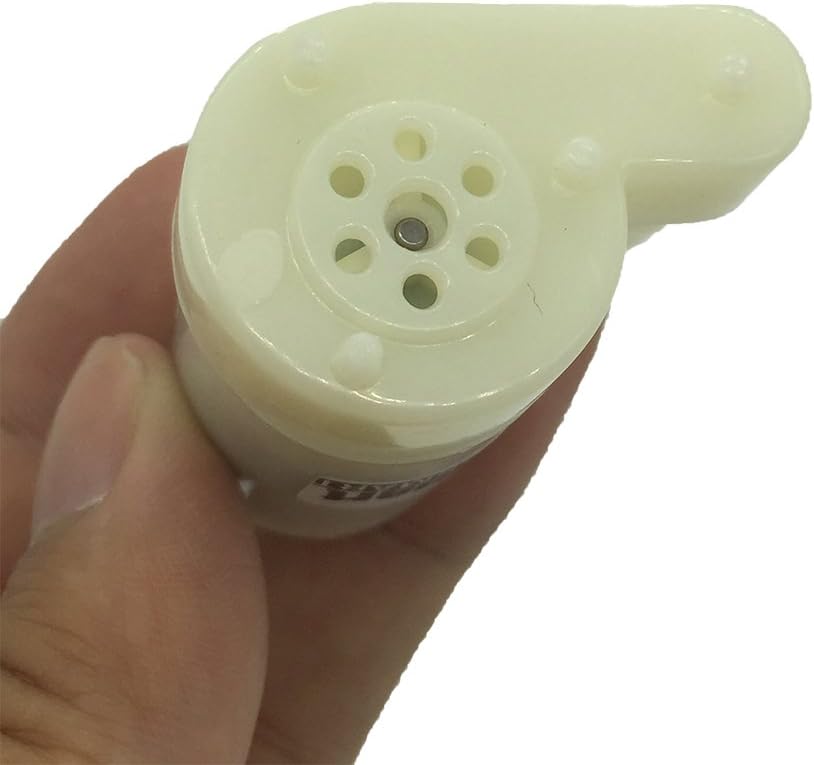

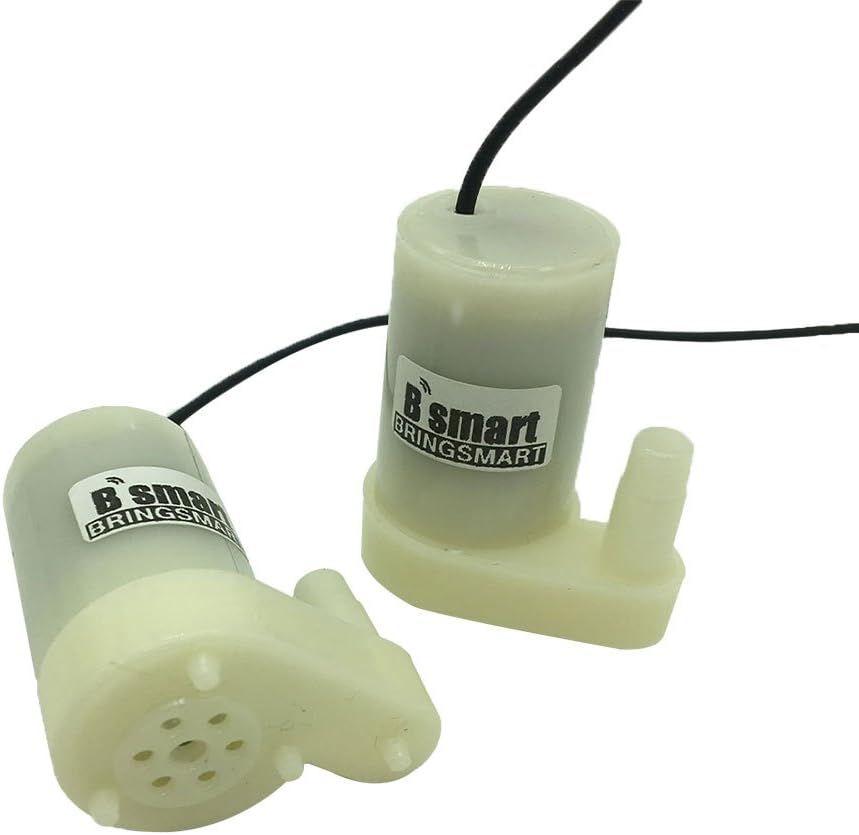

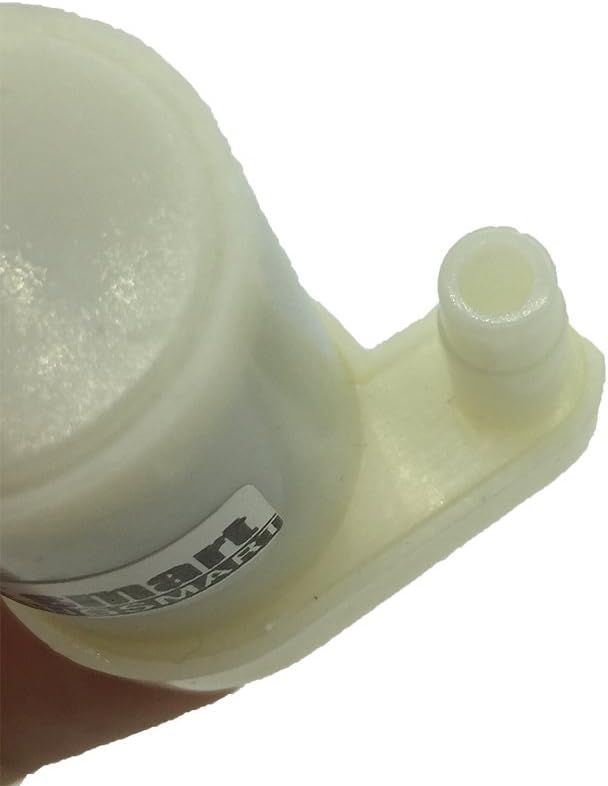

Pump did not take power, the power to reprovision the pump DC pump, Voltage DC 3V, pump with DC 3-4.5V power supply can be used, (Can not be used directly with 220V AC voltage) JT-DC3L Connect 3v: Input voltage: DC3V Working Current: 80MA Maximum lift: 45-50CM Maximum flow: 90-100L/H Power:0.36w Starting voltage:1V Waterproofing grade:IP68 Length of the cable: 20CM JT-DC3L Connect 4.5v: Input voltage: DC4.5V Working Current: 150MA Maximum lift: 45-50CM Maximum flow: 90-100L/H Power:0.91w Starting voltage:1V Waterproofing grade:IP68 Length of the cable: 20CM Noise: 40dB MAX (background noise 35dB, less than 0.5M) The use of fluids: water, groundwater,seawater Water temperature:-20 ° C ~ 50 ° C Humidity: 45% to 90% Working life:more than 200 hours Motor: brush motor The value of pump flow is test out in the laboratory by international standards. The value are different for different head and outlet diameters. If you have special requirements for flow, please contact us before purchase.
