EBL Smart Battery Charger for C D AA AAA 9V Ni-MH Ni-CD Rechargeable Batteries with Discharge Function & LCD Display: Home Audio & Theater

Description

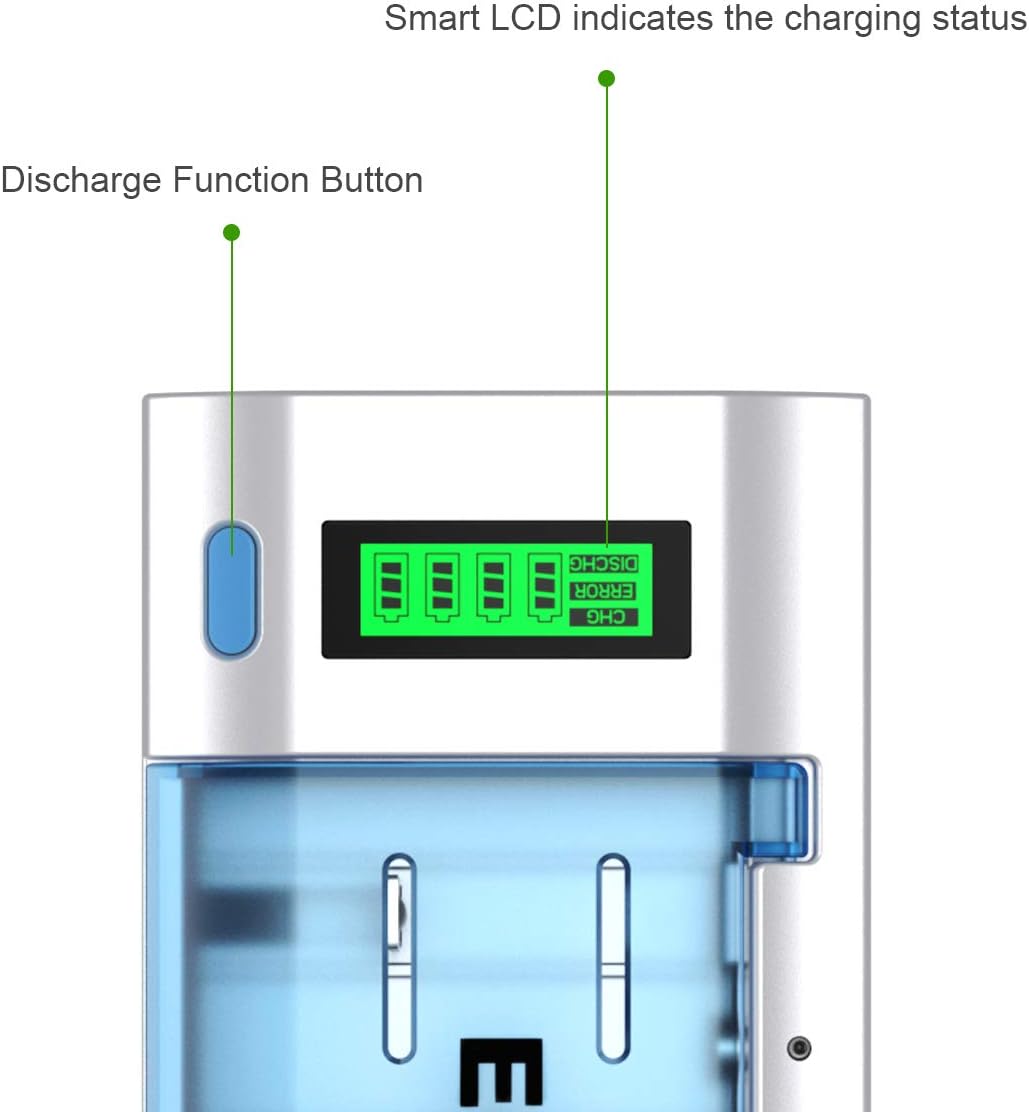

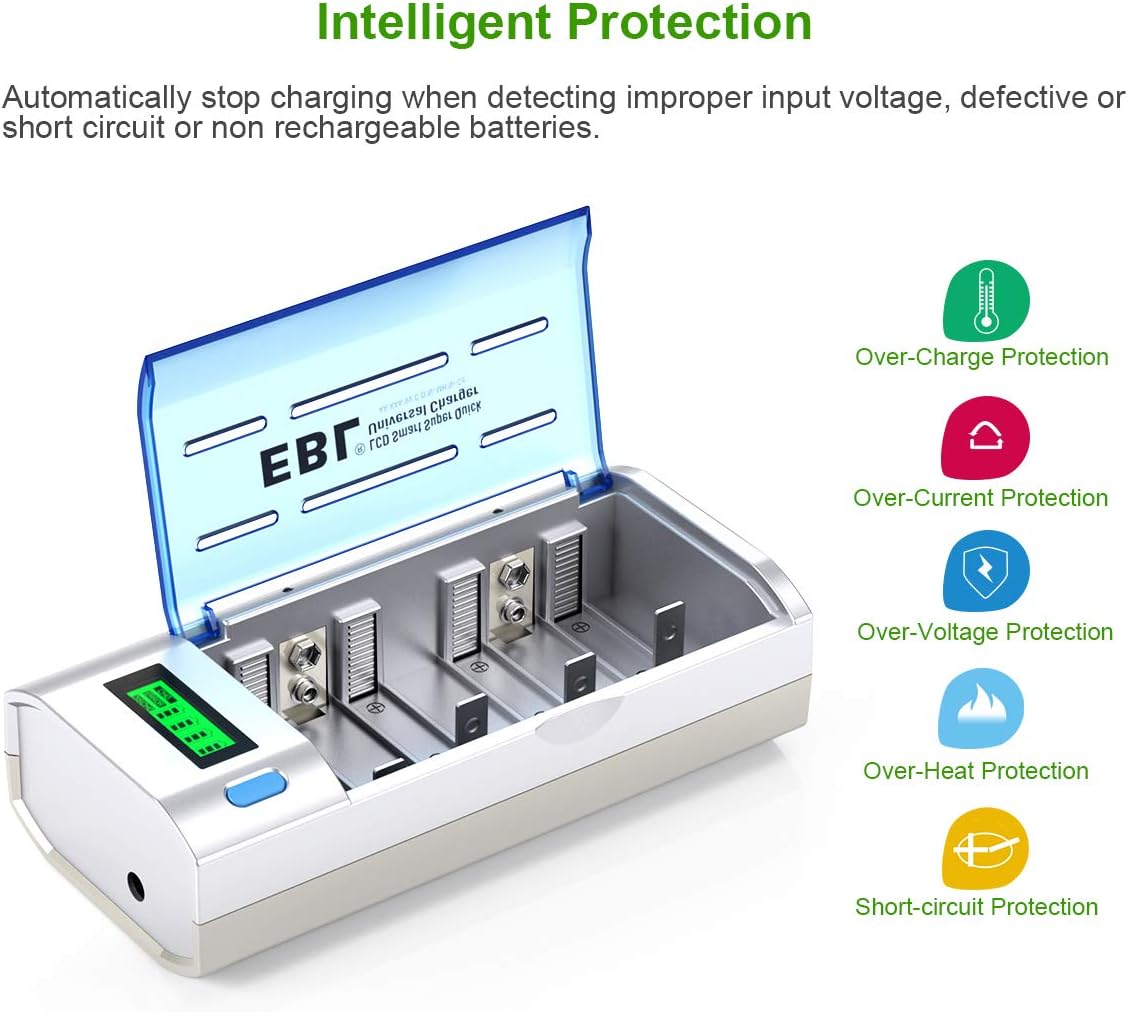

Charging Time Table: 1pcs Battery Type (Ni-MH) Capacity Charging Time (approx) AAA 500-1200mAh 0.5-1.2hours AA 1300-2800mAh 1.3-2.8 hours C 1800-5000mAh 1.8-5 hours D 1800-10000mAh 1.8-10 hours 9V 150-600mAh 2.5-10 hours Charging much Faster than other name-brand LCD Charger Specifications Input: AC 100-240V AC 50/60Hz, 0.5W(Max）; DC 12V 1000mA Output: AA/AAA/C/D*1Pcs: 1000mA AA/AAA/C/D*2/3/4Pcs total: 2000mA 6F22 9V: DC 60mA Unique Trickle Charge Adopting -∆V intellectual cut-off charging method, automatically turn to trickle charge, overheat-detection to prevent over-charging, short circuit protection and reverse polarity protection. Attention: * Please ensure the battery installed is correct: make the +/- pole of the battery is match for the +/- pole of the charger. * Using environment: 0℃ to 40℃, it is normal phenomenon that the battery is warmer than room temperature when charging. * Do not disassemble or reassemble the charger by yourself for safety reason. Discharge Function Click on the bule button, discharge starts, LCD displays "DISCHG" at the same time for 1-4pcs Ni-MH Ni-CD batteries, discharge automatically after charging mode. Very useful and convenient function for diccharging batteries, you‘re’ worth choosing this charger. LCD Display Bright LCD screen shows the progress of charging status clearly. EBL charger -- your reliable battery charger. Negative delta V (- ∆V) cut-off function (except for 9V batteries), overcharge protection, short circuit protection and non-rechargeable or bad cell detection make it more easier for usage. Constant current charging would protect the batteries against current fluctuation and keep using the charger safely Controlled by MCU, automatically stop charging when detecting improper input voltage, defective or short circuit or non rechargeable batteries. How to change the mode of Charge & Discharge “CHG” -- Charging; “DISCHG” -- Discharging; “ERROR” -- install the battery incorrectly or the battery is broken one.
