Description

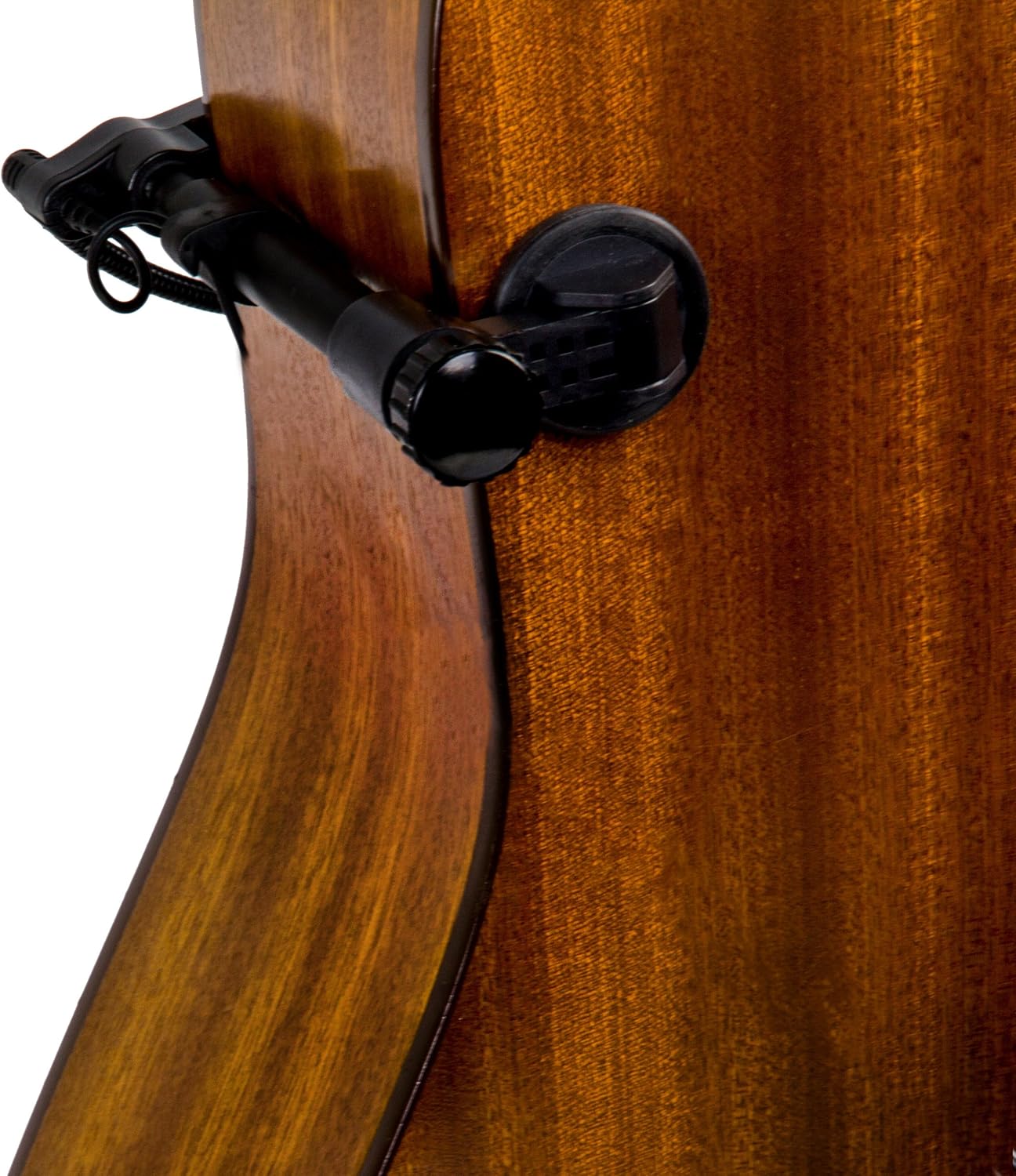

The Nady Satellite SMGT-100R is a compact wireless system with a miniature transmitter that plugs directly into the ¼” output of your instrument (guitar, bass, violin, mandolin, or any other instrument with a pickup). Powered by only one AA battery, the transmitter wirelessly connects to the receiver from a distance of up to 300’ (without obstructions) and transmits clear, transparent audio which you can then send to your amplifier, interface, pedals, or mixer with the included ¼” audio cable. The “R” type instrument transmitter features a 90° angled ¼” plug for use with surface mounted jacks only (for recessed jacks, use the SMGT-100A). Easy to set up and operate, this system features 100 user selectable UHF frequencies, so you will always find a clear, interference-free channel to use, even if you are in a different venue every night! The included reinforced aluminum case will protect all system components and keep them safely in one place. Specifications Overall System Frequency Range 902-928 MHz Frequency Deviation ±50kHz Max Frequency Response: 50Hz-16kHz ±3dB S/N: -105dB (-60dBm) T.H.D 100dB Receiver: Sensitivity: -110dBm Display VFD (63mm*22mm) Audio Output: ¼” jack Battery life: Up to 10h (depending on batteries) Power Supply: Two AA alkaline batteries or 9VDC /1500mA adapter Dimensions (W*H*D): 4.4” x 2.0” x 5.3” (110 x 50 x 135mm) Weight 0.5lbs (0.227 kg) SMGT-100R Transmitter: Input: 90° ¼” plug RF Output Power: 10mW Antenna: ¼ wave Length Wire Type Controls: Power ON/OFF, Mute Operating Voltage: One AA alkaline battery Operating time: 10 hours (typical) Dimensions (W*H*D) 3.6”x2.8”x1.1” (90*71*28mm) Weight: 0.1 lbs. (0.045 kg)

Product Overview
