Shysky Tech Mini 6V-12V DC Brushless Small Water Pump Submersible Motor Pump 1.8M 230L/H : Garden & Outdoor

Description

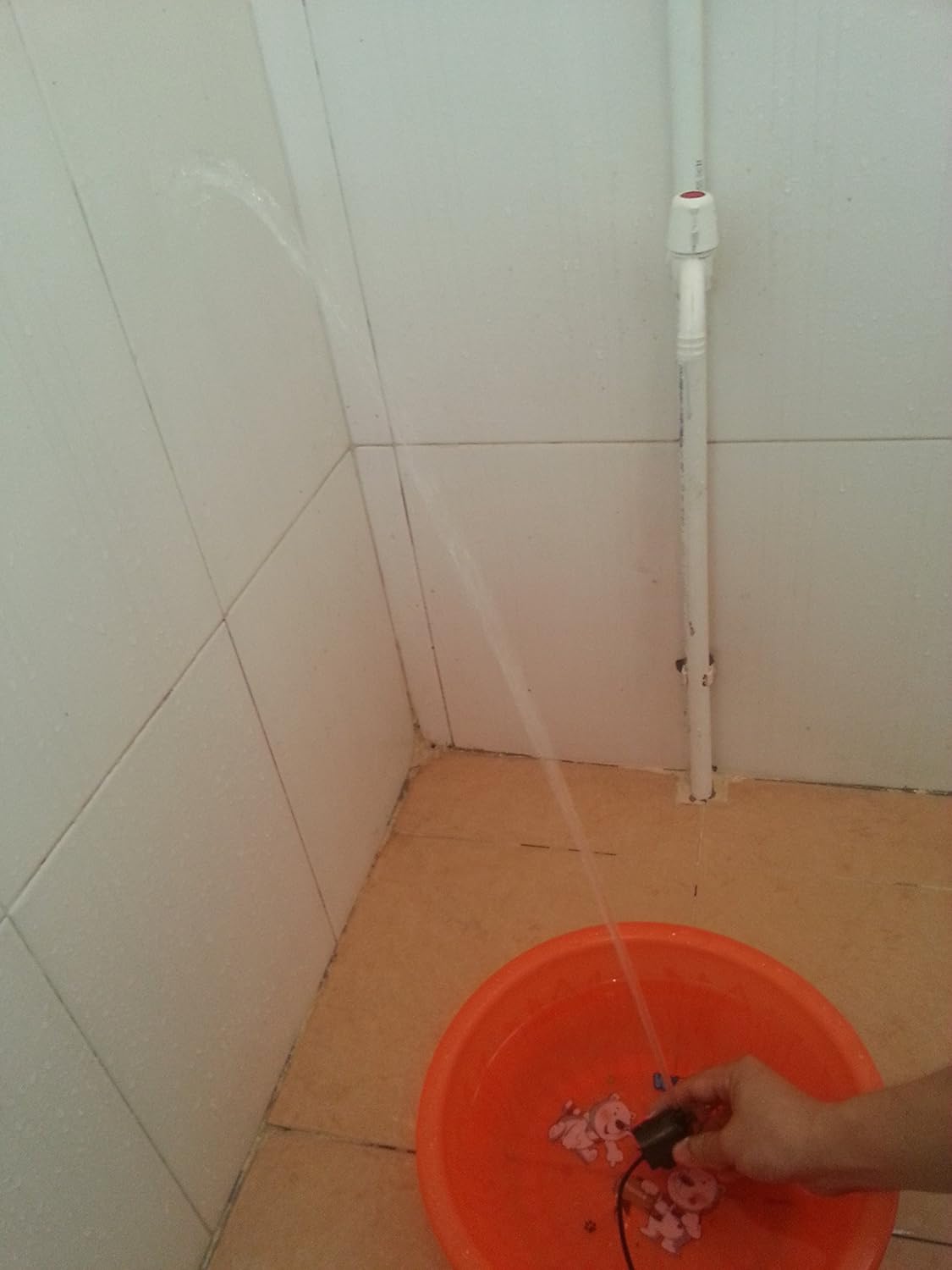

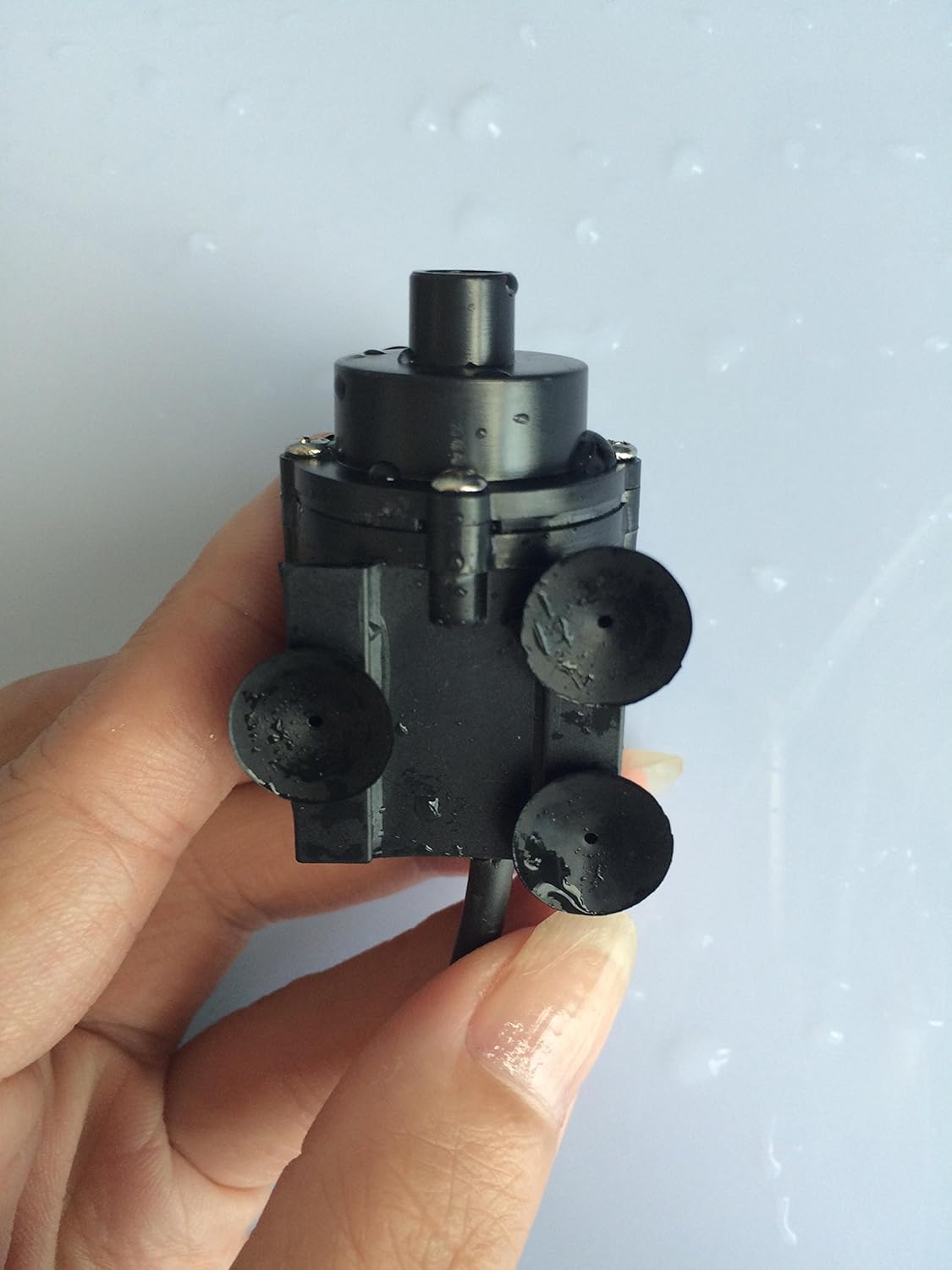

Typical features: Operating voltage :6-12V (voltage more than 12V is not advised), current 350mA at 12Vdc, Max static head 1.8 meters, Max horizontal flow 230L / H. Materials: Pump body with excellent plastic material. Structure: with three suction cups on the bottom, can be arbitrarily fixed on a smooth surface. Power cord: diameter 3.0MM waterproof round wire length of 0.5 meters. Brown is Postive, Blue is egative. Auto-protection when reverse connected. Product size: 43.6mm*28.8mm*28mm (including water inlet and outlet) Pump outlet diameter: OD 7.79MM Pump inlet diameter: OD 8.20MM Suitable medium: water, oil, or other non-corrosive fluids; temperature is recommended to be within 60C Usages: Mainly used for mini solar fountain, equipment water cooling, medical use, coffee maker, etc. NOTE when using: 1 Work at over-voltage is forbidden. Voltage can be highly more than rated voltage for Battery with more than 5AH at full capacity when there is no voltage-limitation measure. Pls test the supply voltage before working if you are not sure about it. 2 No direct AC Power supply or over-vol. DC power supply (No higher than 12.5VDC). 3 About the Max static head. Pump with 1.8m head doesn't mean that it can spray as high as 1.8m when connecting with power supply. The real mean of head is that the vertical height of the water column in the plumbing. Spray head is much lower than head. 5 Pump is not allowed to disassembly unauthorized. Shaft and sleeve are precisely installed and it's difficult for non-professionals to reassembly. We are not responsible for quality problems caused by this.
