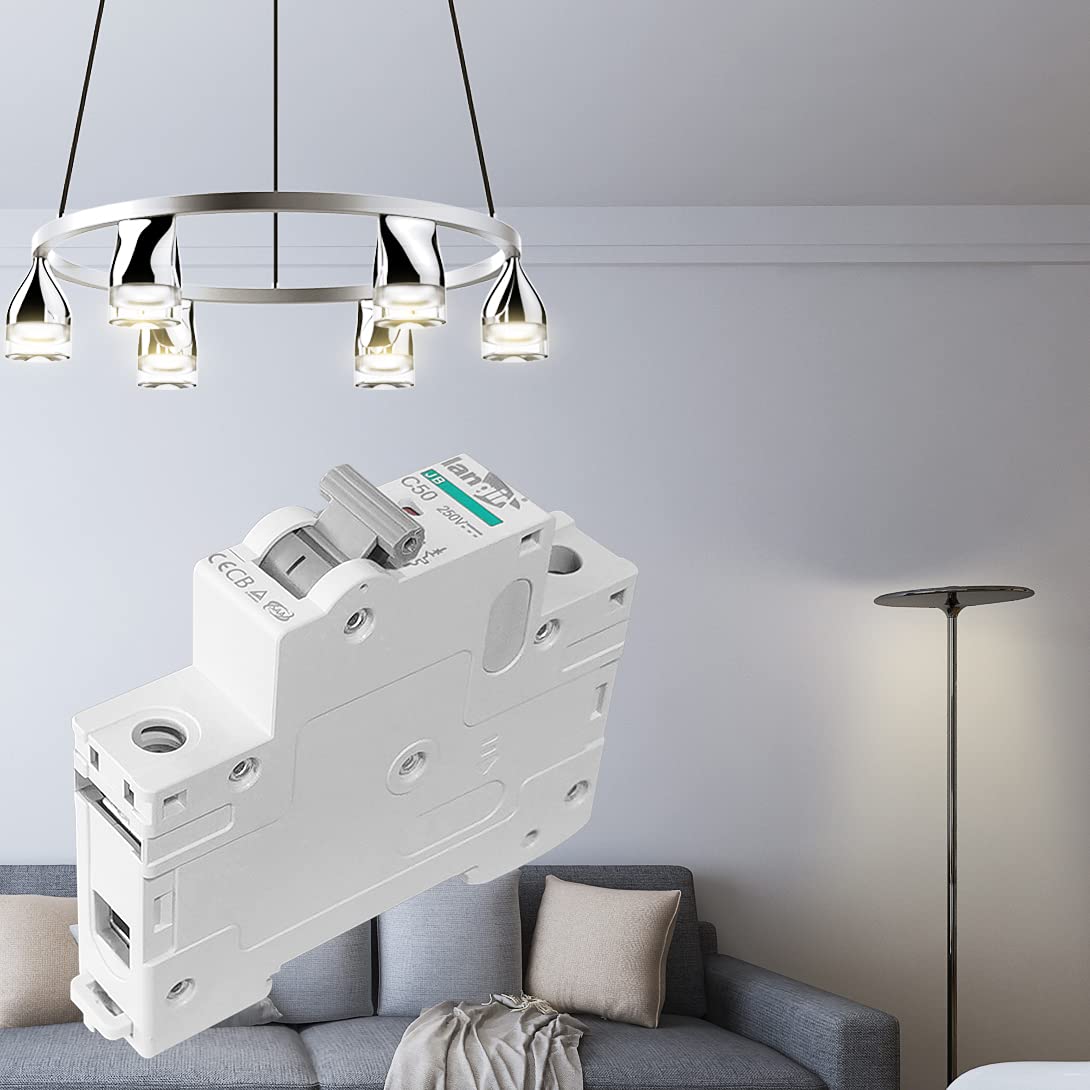

LANGIR JB DC 1-63A Circuit Breaker 1 P Voltage Protection for Battery and Solar System DIN Rail Installation C Curve 250V 63A: Tools & Home Improvement

Description

See more product details Operating voltage (Ue):1P=250 V DC, 2P=500 V DC 3P=750 V DC, 4P=1000 V DC Rated insulation voltage (Ui): 1,000 V DC Breaking capacity (Icu):10 kA Impulse voltage (Uimp): 4 kV Electrical connection: By the bottom for In and Out Number of poles: 1P, 2P, 3P, 4P Standards : IEC 60947-2/ EN 60947-2 Rated service breaking capacity(lcs): 100% of the lcu Endurance(O-C) Electrical: 1500 cycles(where L/R=2 ms) Endurance(O-C) Mechanical: 20000 cycles Mechanical: 20000 cycles Degree of pollution: 2 Category: A(no delay in accordance with IEC / EN 60947-2 standards) Degree of protection (IEC 60529) Device in modular enclosure: IP40 Tropicalisation: Relative humidity(95% at 55℃ in accordance with IEC 60068-2 and GB 14048.2 standards) Temperature Operating: -25-70℃ Temperature Storage: -40-85℃ Tightening Torque: 2.5 N.m Copper Cables Rigids: 1-25 mm² Copper Cables Flecibles with freeule: 1-16 mm² Cu/Al Terminal: 50 mm² Ring tongue terminal screw connection: ø5 mm
