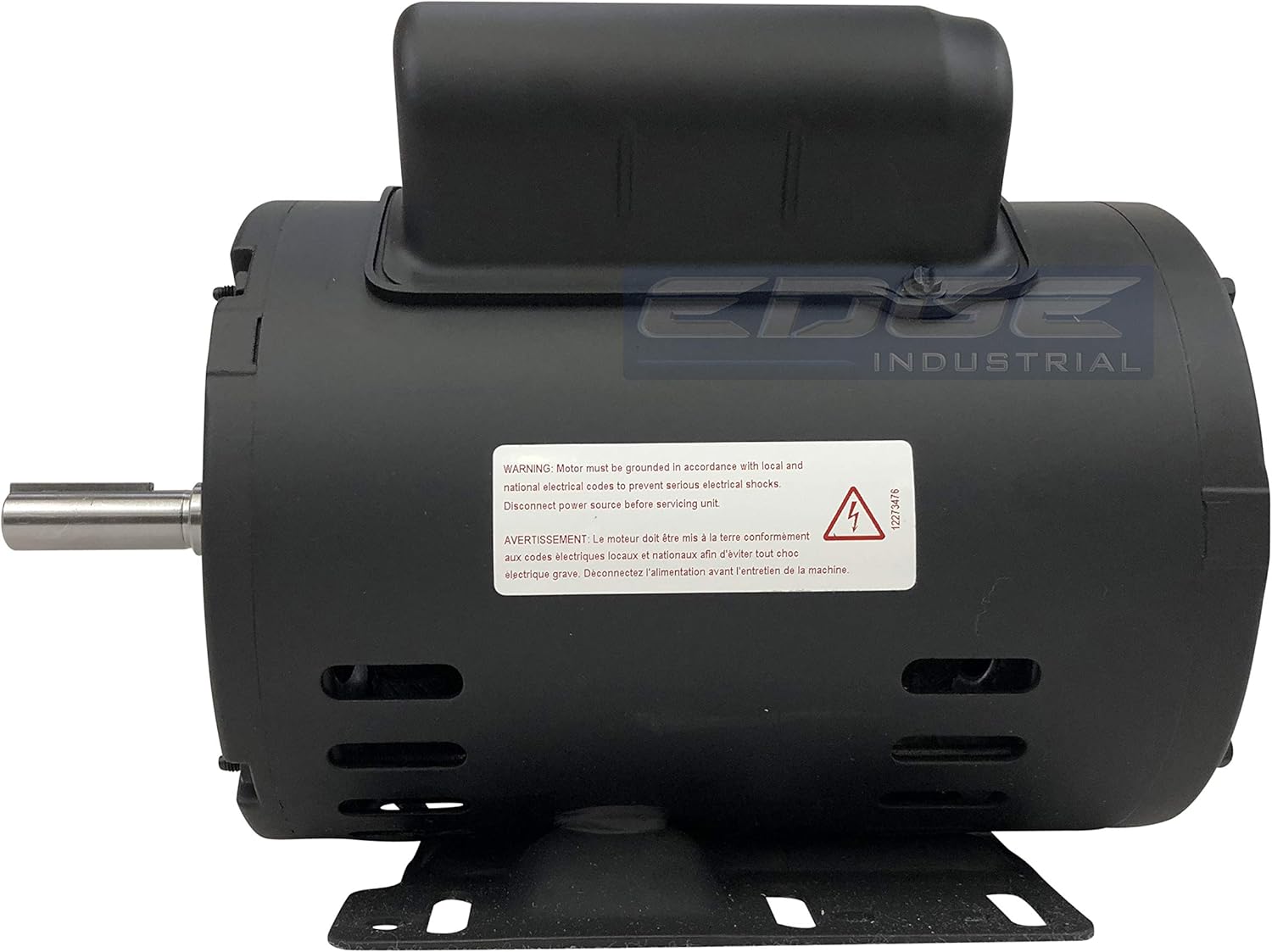

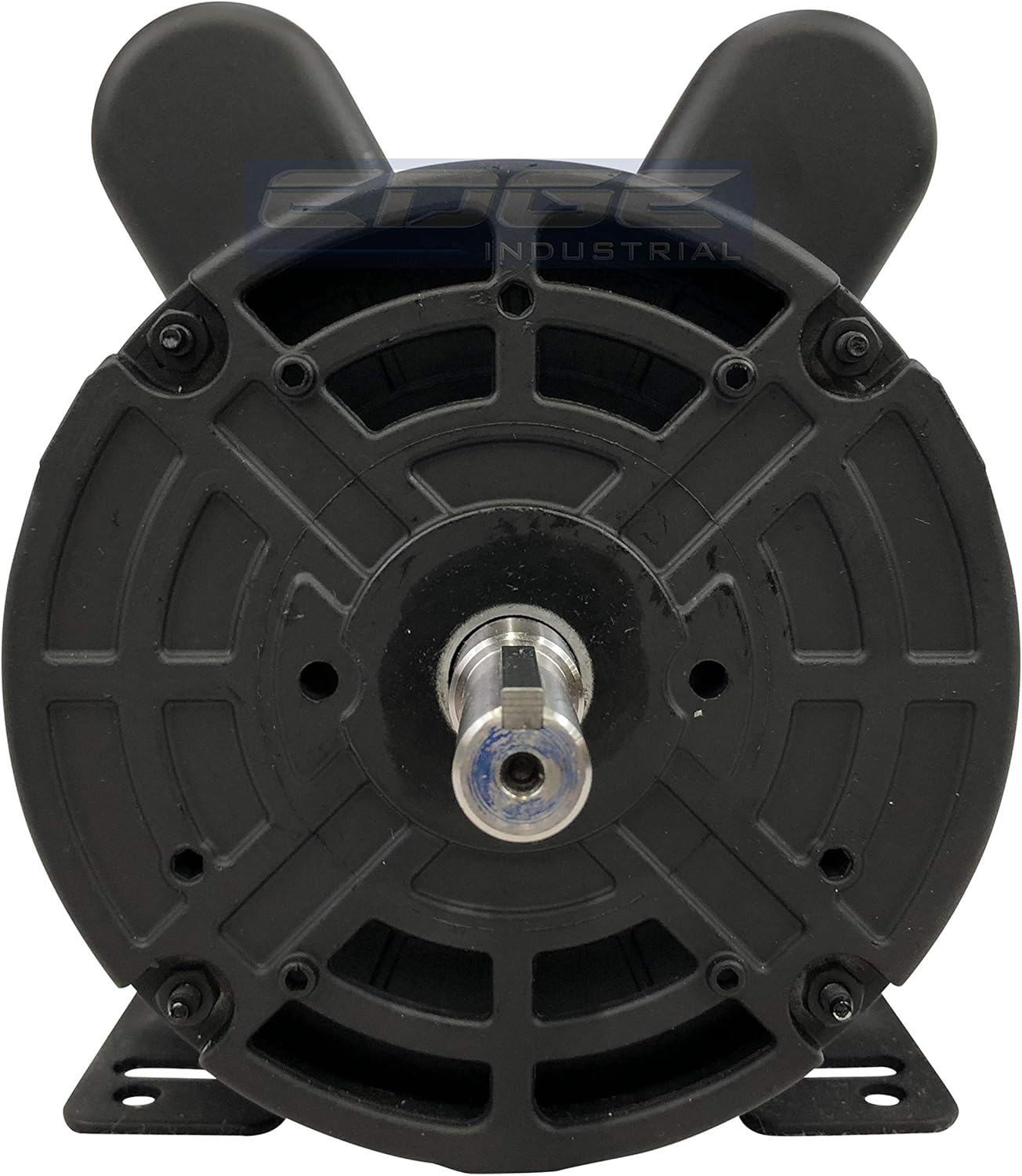

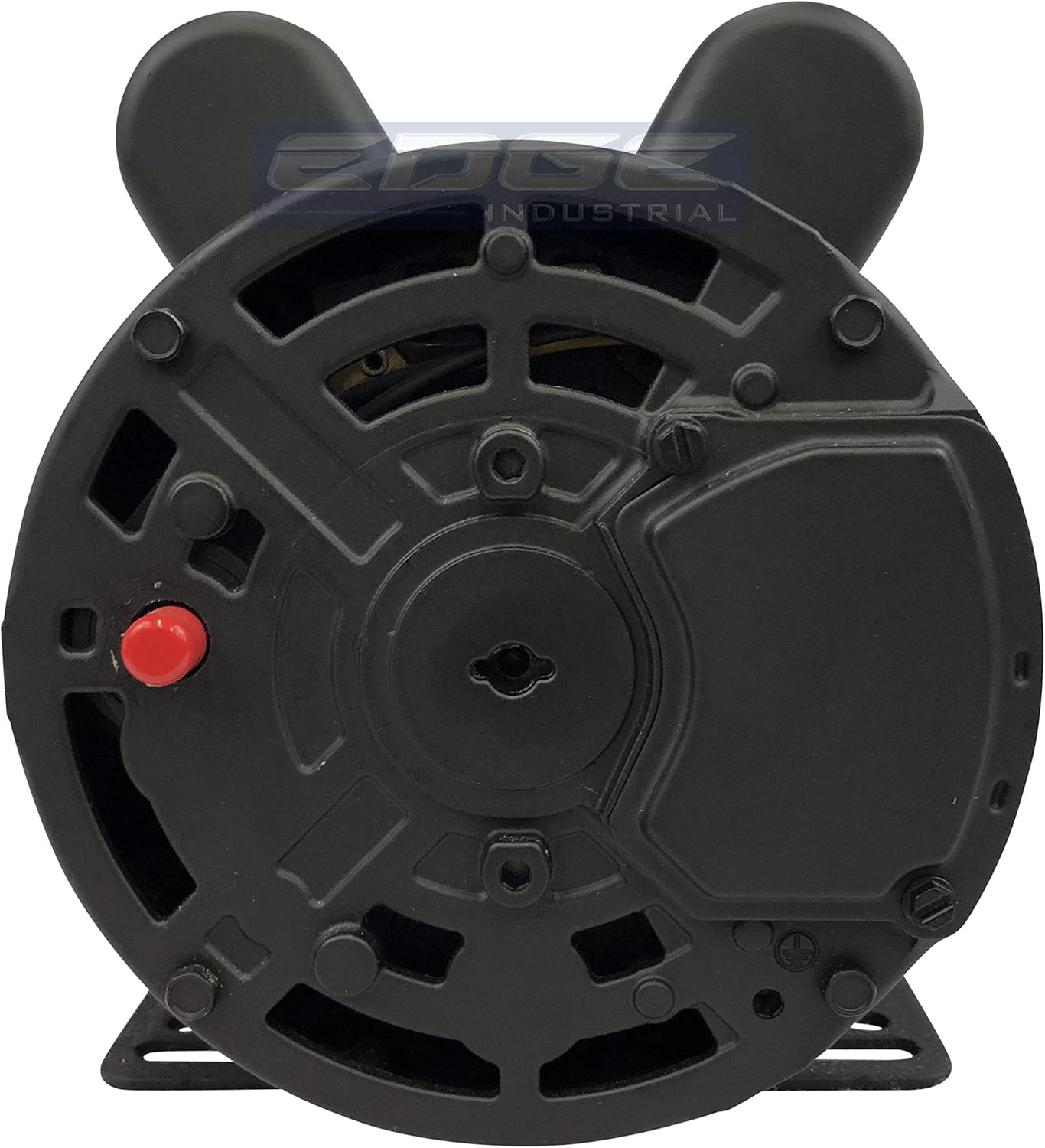

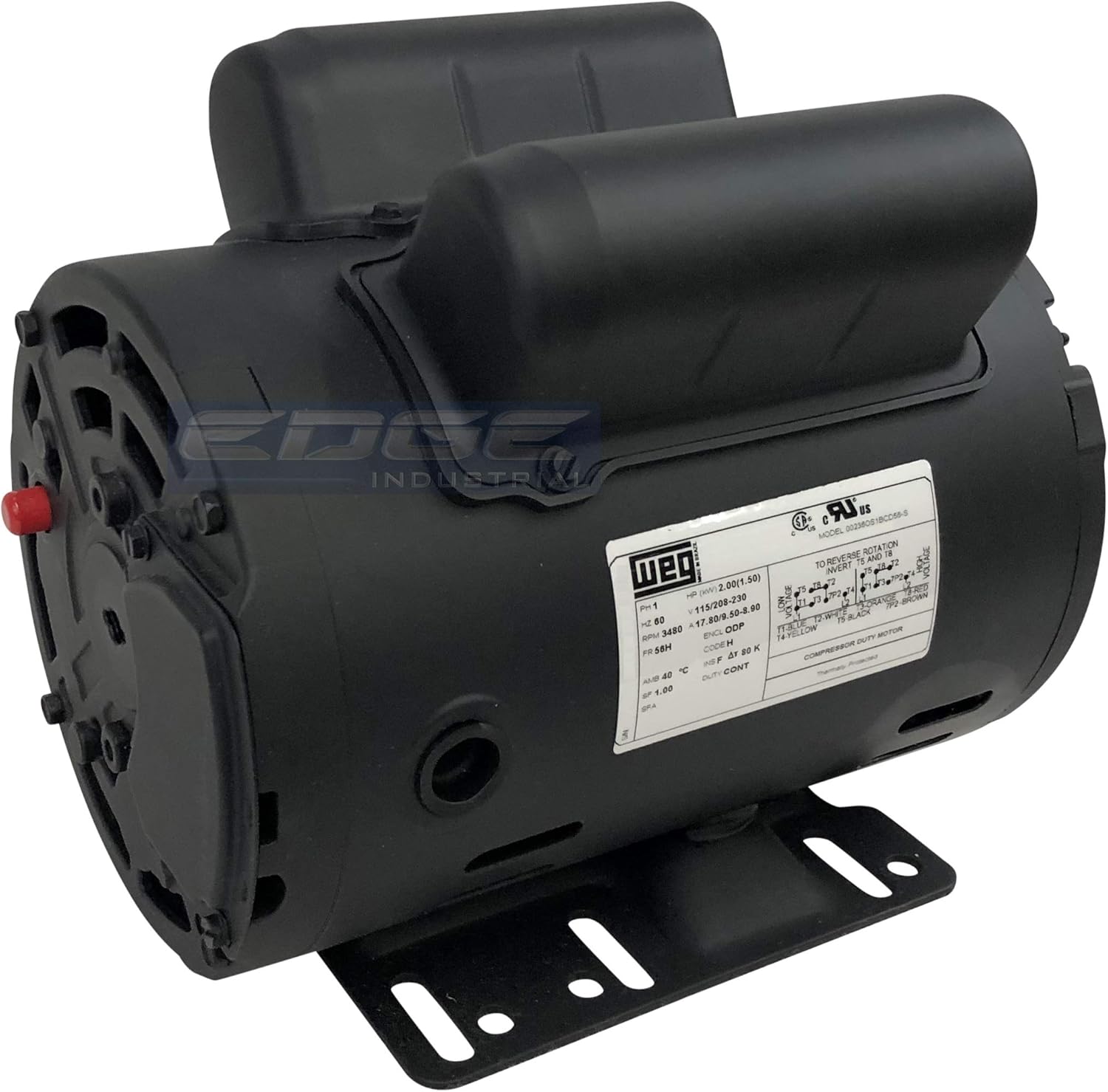

New WEG 2HP Electric Motor Fan Pump Compressor General purpose 56 frame 3495 RPM 1 phase 115/208-240VAC - -

Description

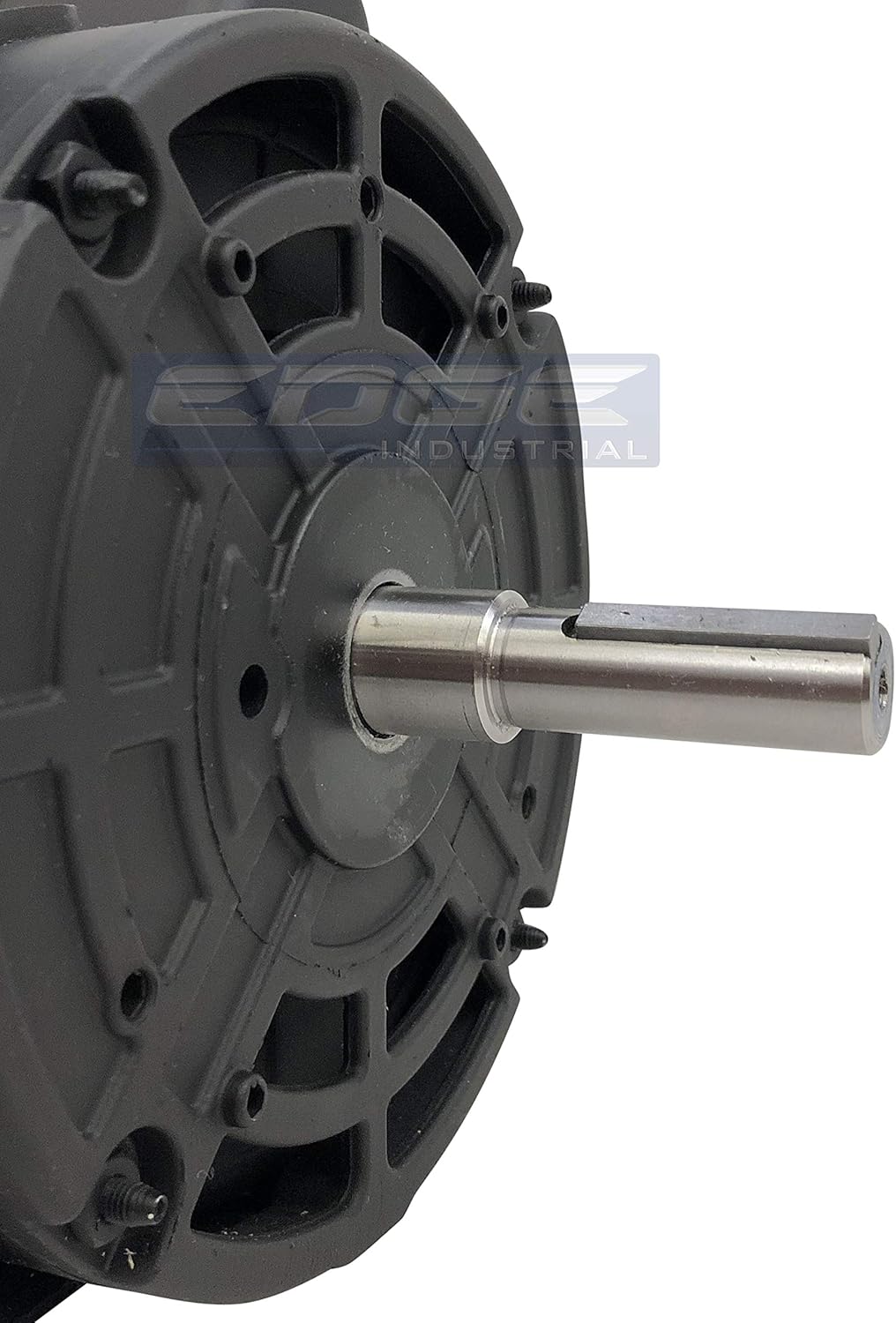

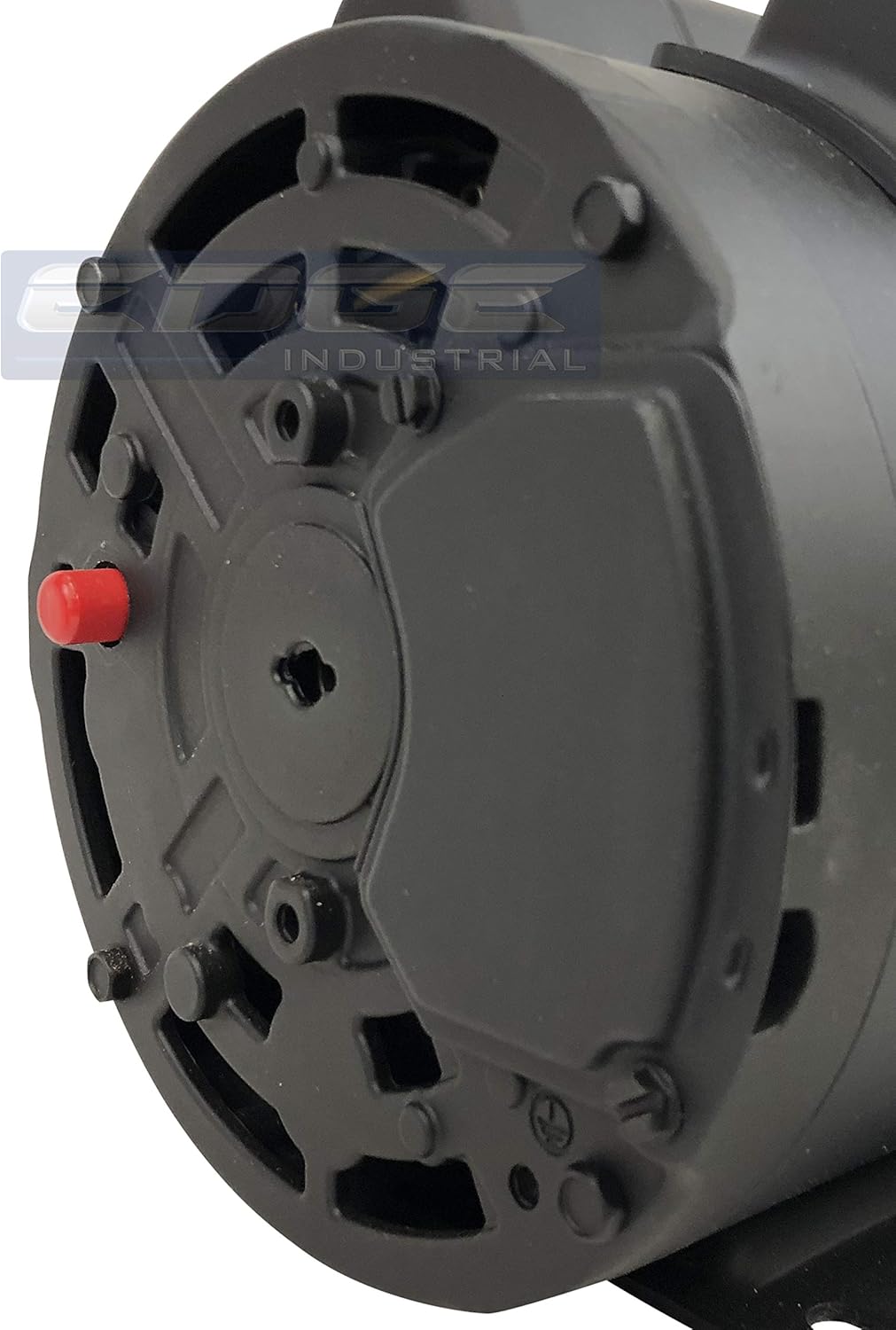

2 hp - 56 Frame - 3495rpm - Single Phase - 115 / 208-230volt - 5/8" shaft diameter - 1.874" shaft length Please see attached Pics for motor dimensions and frame dimensions Technical Info: Horsepower: 2 HP Amperage: 11.0 fl amps at 230v Phase: One / Single Phase 2 pole Voltage: 115 / 208-230 RPM: 3495 Torque: 3.01 lb.ft Base: Reinforced fixed base Frame: 56 Shaft Diameter: 5/8" Keyed shaft Shaft Length: 1.874" Rotation: Reversible CW or CCW Rotation Frequency: 60hz Service Factor: 1.00 @ 230v Enclosure: ODP Open Drip Proof (internally fan cooled) Construction: Rolled Steel Overload: Yes - Manual reset button Efficiency: (100%) 70.0 Weight: 41 lbs WARNING: This product can expose you to chemicals which is [are] known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
