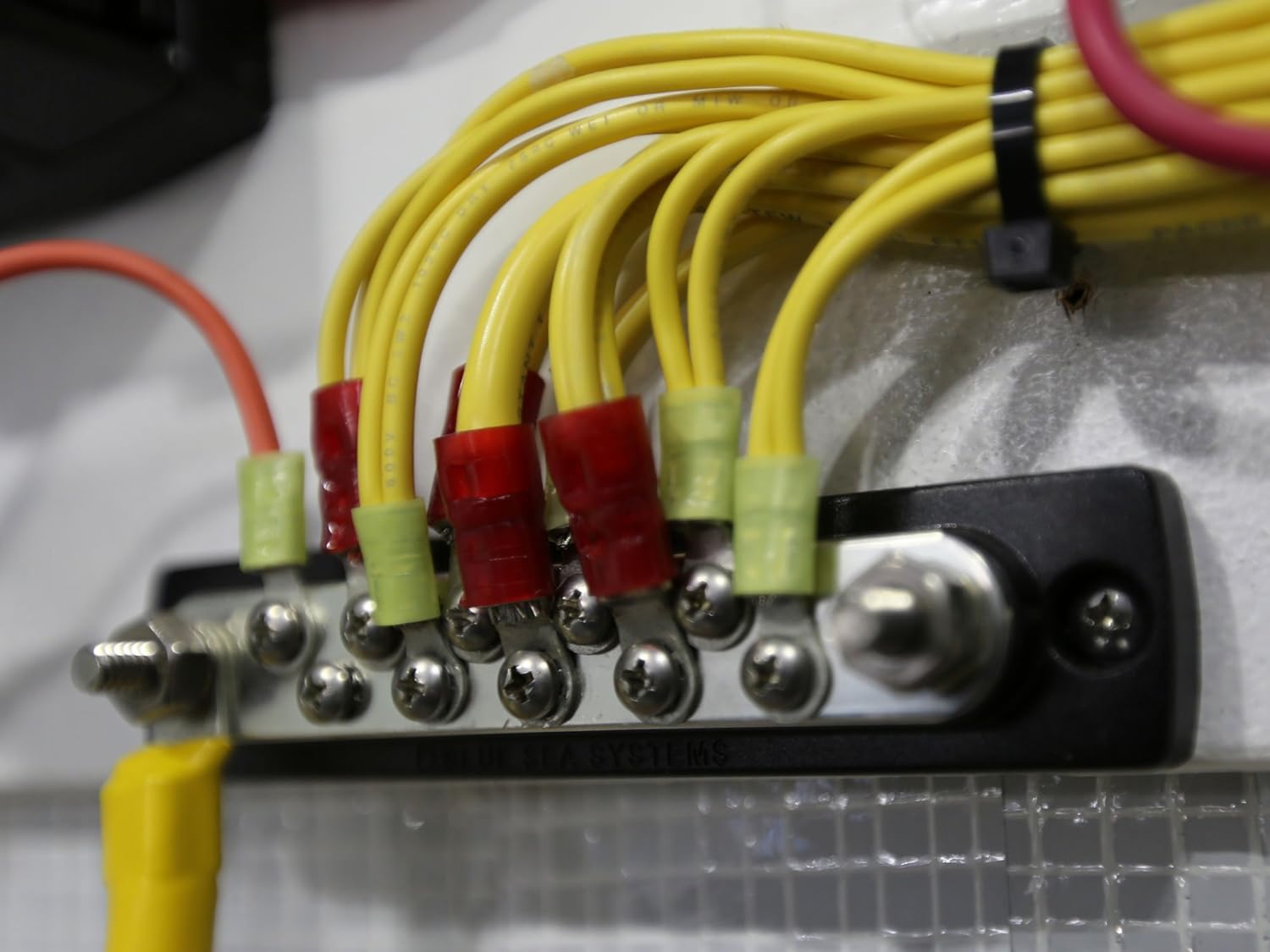

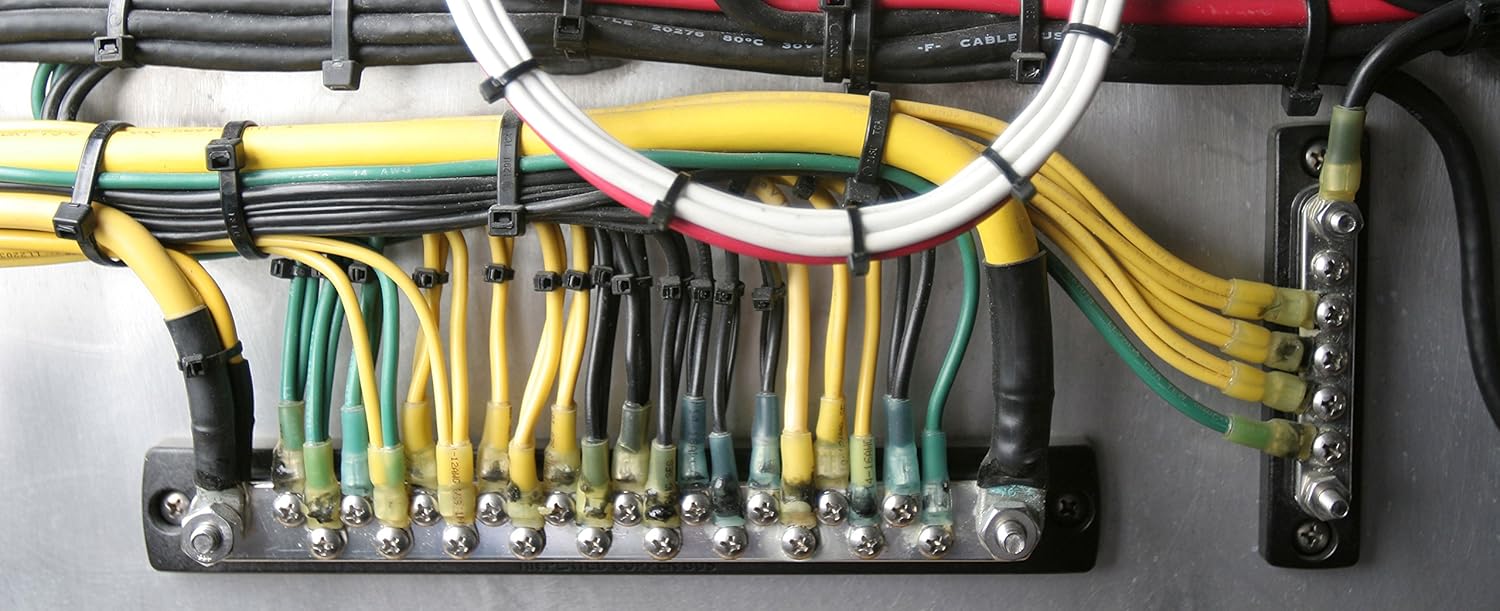

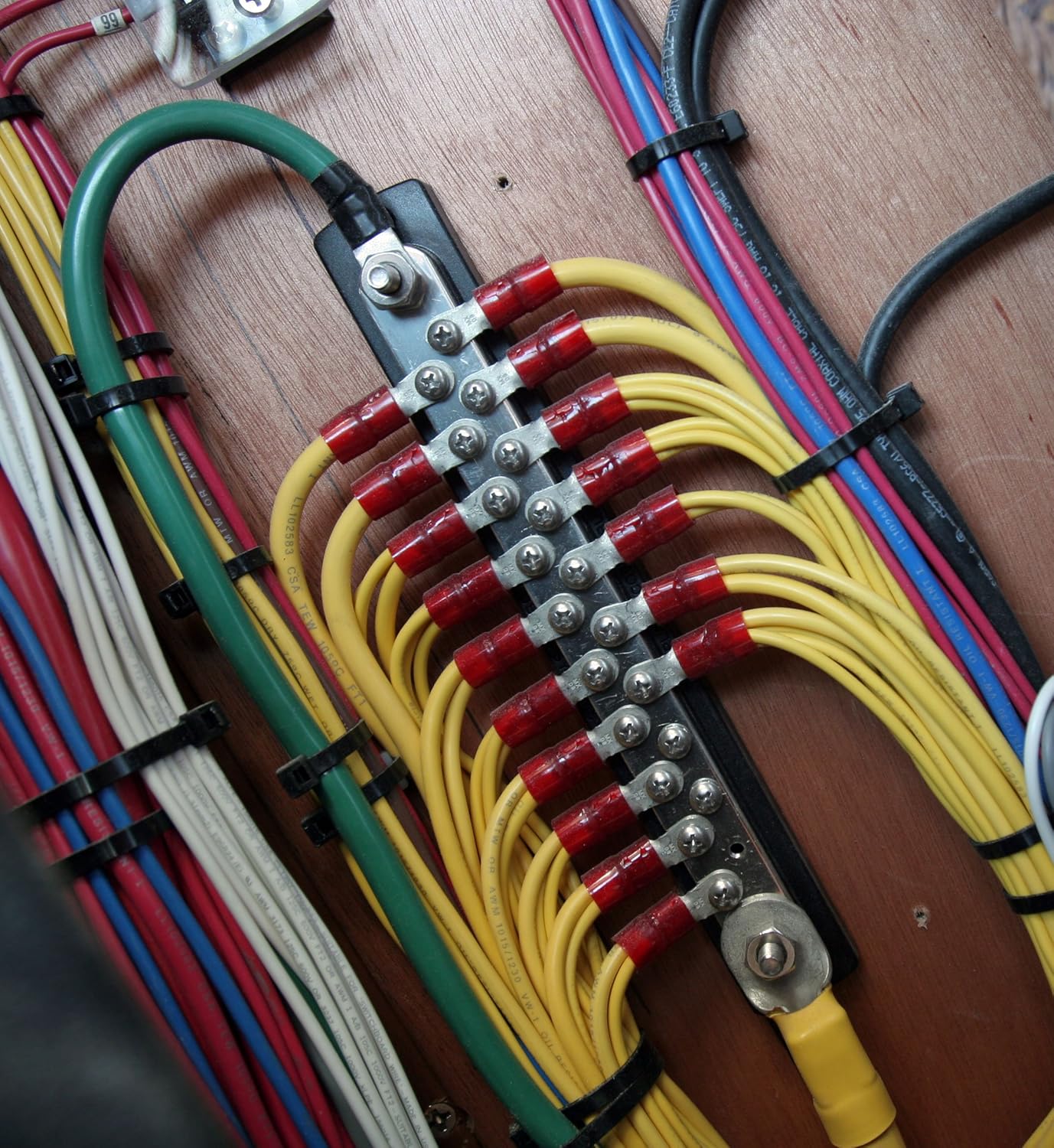

Blue Sea Systems 150 Amp Common BusBar with 10 screws and a cover, 2300 : Sports & Outdoors

Description

Blue Sea Systems BusBars distribute positive wires or collect negative returns. They range in capacity from 100A to 600A, with a variety of terminal stud configurations. Features Include: Tin-plated copper buses provide maximum conductivity and corrosion resistance. Insert-molded stainless steel studs eliminate the need for securing nuts and allow high torqueing for excellent electrical contact. UL 94-V0 rated UL 94-V0 rated base materials have flame retardants and will self extinguish if a flame source is removed. Terminal Threaded Fastener incorporate stainless steel split ring lock washers and captive star-type lock washers keep connections tight in high vibration environments. One-Piece Serrated Flange Nuts ensure correct and secure connections which do not cause resistance. Insulating covers meet ABYC and USCG insulation requirements. Max voltage: 300V AC/ 48V DC, Continuous Rating: 100A AC/DC
